1058880000 - Electropolished Stainless Steel Terminal Box, 160mm x 380mm x 120mm

1058880000 - Electropolished Stainless Steel Terminal Box, 160mm x 380mm x 120mm

SKU: 1058880000   Download PDF

Select a Variant:
  • 1058880000 - Electropolished Stainless Steel Terminal Box, 160mm x 380mm x 120mm
Qty:
Now $940.03   Web pricing policy
BEFORE   $0.00 Now $940.03 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

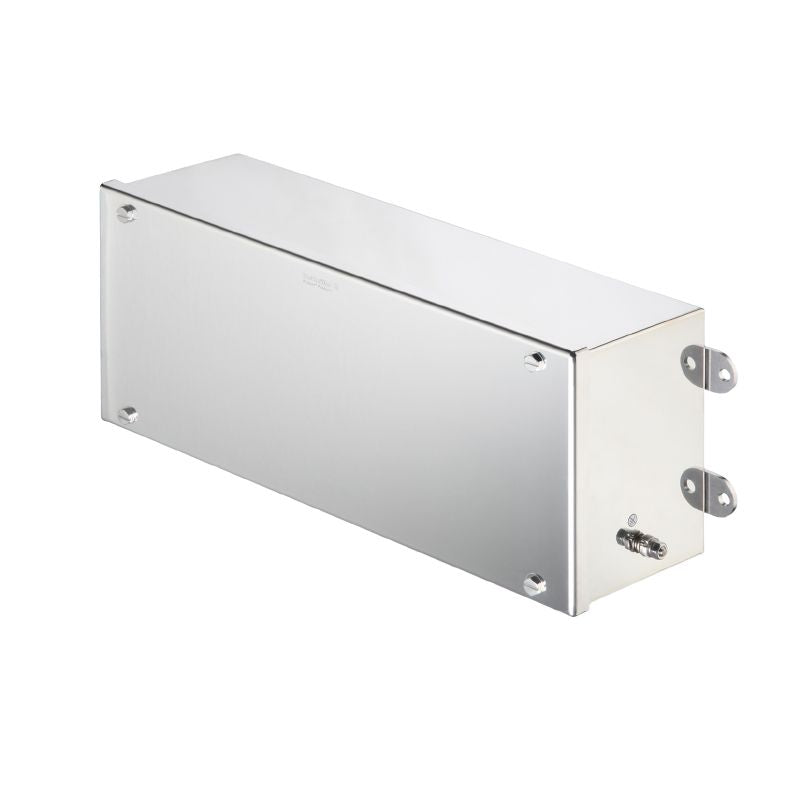

Introducing the Klippon STB 5 SS E terminal box, expertly crafted from high-grade stainless steel with an electropolished surface Measuring 160 mm tall, 380 mm wide, and 120 mm deep, this empty enclosure is engineered from material 14404 (316L), making it a robust choice for various applications Its refined design and durability make it an excellent option for your terminal needs.

Features and Benefits:

    •Stainless steel enclosure offers durability and resistance to corrosion.

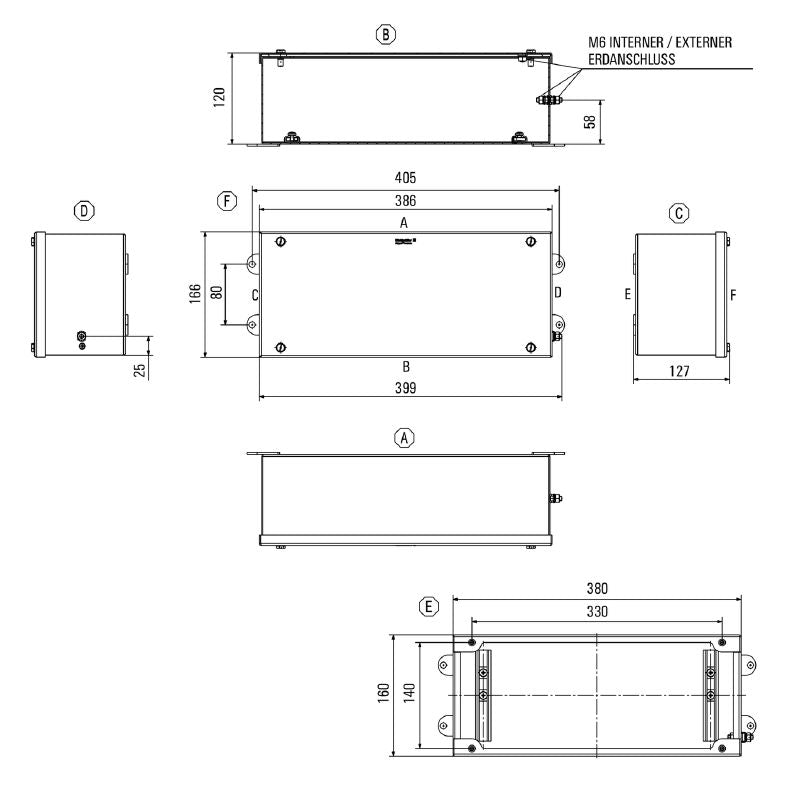

    •Height: 160 mm, Width: 380 mm, Depth: 120 mm.

    •Electropolished surface finish.

    •10 J impact resistance standard version.

    •Protection degree IP66.

    •Lid secured with M5 hexagonal screws.

    •Environmentally compliant with RoHS standards.

    •Explosive risk zones.

    •Packaging industry.

    •Transportation.

    •Process industry.

    •Marine engineering.

Specifications:

 Material Stainless steel 1.4404 (316L)
 Operating temperature range -60 °C to 100 °C
 Protection class (UL) Type 4, Type 4X
 Seal material Silicone
 Torque for lid screws 2.5 Nm
 Dimensions {'Height': '160 mm', 'Width': '380 mm', 'Depth': '120 mm'}
