1025050000 - 250mm Steel Terminal Box with IP66 Rating

Description:

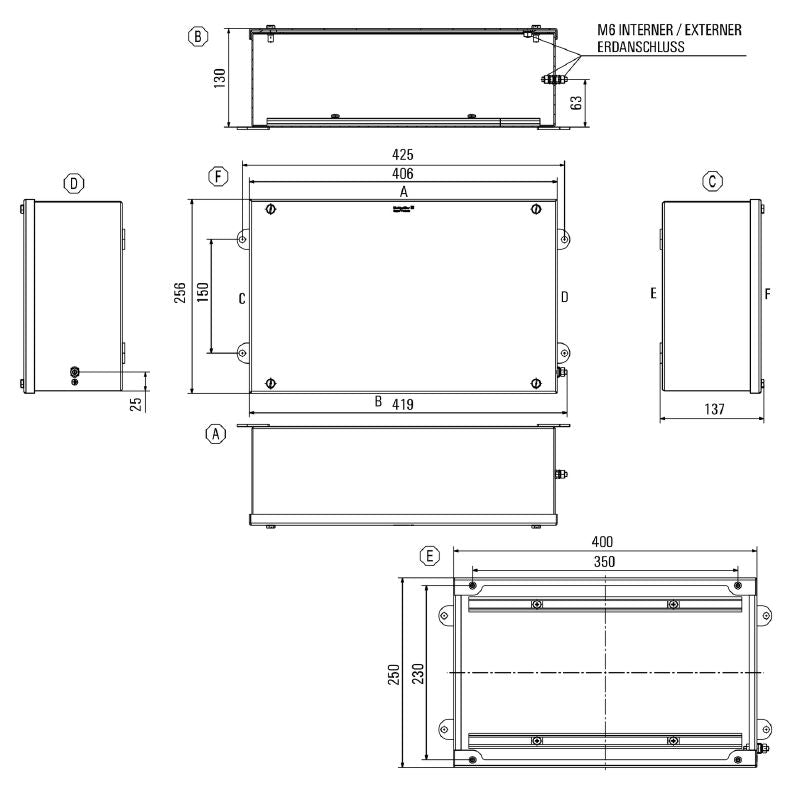

Introducing the Klippon STB, a versatile small terminal box expertly constructed from powder-coated pebble grey sheet steel Measuring 250 mm in height, 400 mm in width, and 130 mm in depth, this robust enclosure adheres to RoHS standards without any exemptions It features multiple openings for cable glands positioned on the left, right, and both top and bottom, providing flexibility for your wiring needs.

With an access opening measuring 230 mm in height and 382 mm in width, accessing internal components is made simple Engineered for durability, the box includes a welded mounting foot equipped with 8-mm holes for easy installation The lid is secured with M5 hexagonal screws set 10 mm apart, ensuring a reliable seal Designed to handle environments ranging from -60 °C to 120 °C, the Klippon STB is rated for a maximum load capacity of 70 kg.

It meets Type 4 and Type 4X protection standards, boasting an impressive IP66 rating for dust and water resistance This terminal box is an ideal solution for a range of applications, offering both security and reliability.

Features and Benefits:

•Constructed from powder-coated and pebble grey sheet steel.

•Suitable for applications in transportation, marine engineering, process industry, and packaging industry.

•Includes features like an access opening and impact resistance up to 10 J.

•Designed for vertical and horizontal assembly.

•Lid attachment via M5 hexagonal screws for secure closure.

•Transportation.

•Marine engineering.

•Process industry.

•Packaging industry.

Specifications:
