1024990000 - Pebble Grey 150x150x90mm Steel Terminal Box

1024990000 - Pebble Grey 150x150x90mm Steel Terminal Box

SKU: 1024990000 Download PDF

Variant:
  • 1024990000 - Pebble Grey 150x150x90mm Steel Terminal Box
Now $262.21
BEFORE   $0.00 Now $262.21
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

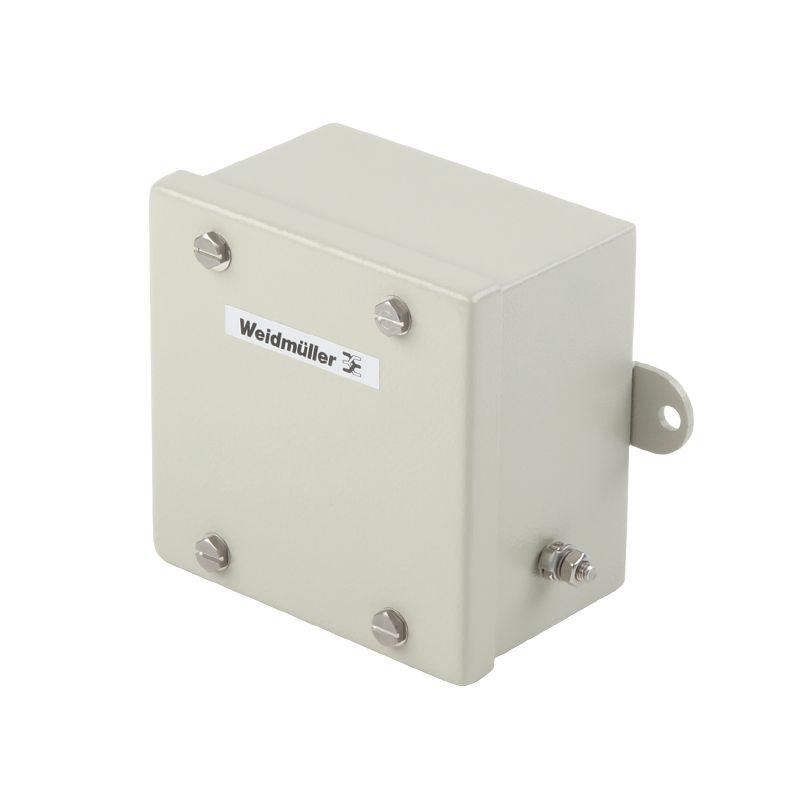

Discover the Klippon STB (Small Terminal Box), a straightforward and empty enclosure crafted from robust sheet steel With dimensions of 150 mm in height, 150 mm in width, and a depth of 90 mm, this box features a resilient powder-coated finish in a modern pebble grey shade It's an ideal solution for various applications where reliable enclosure is necessary.

Features and Benefits:

    •RoHS compliant without exemption.

    •Impact resistance of 10 J version standard.

    •Welded-on mounting foot with 8-mm holes.

    •Access opening dimensions: height 130 mm, width 132 mm.

    •Lid secured with M5 hexagonal screws.

    •Max payload of 15.75 kg.

    •Protection class Type 4 and Type 4X.

    •IP66 protection degree.

    •Surface finish is powder-coated.

    •Transportation.

    •Marine engineering.

    •Process industry.

    •Packaging industry.

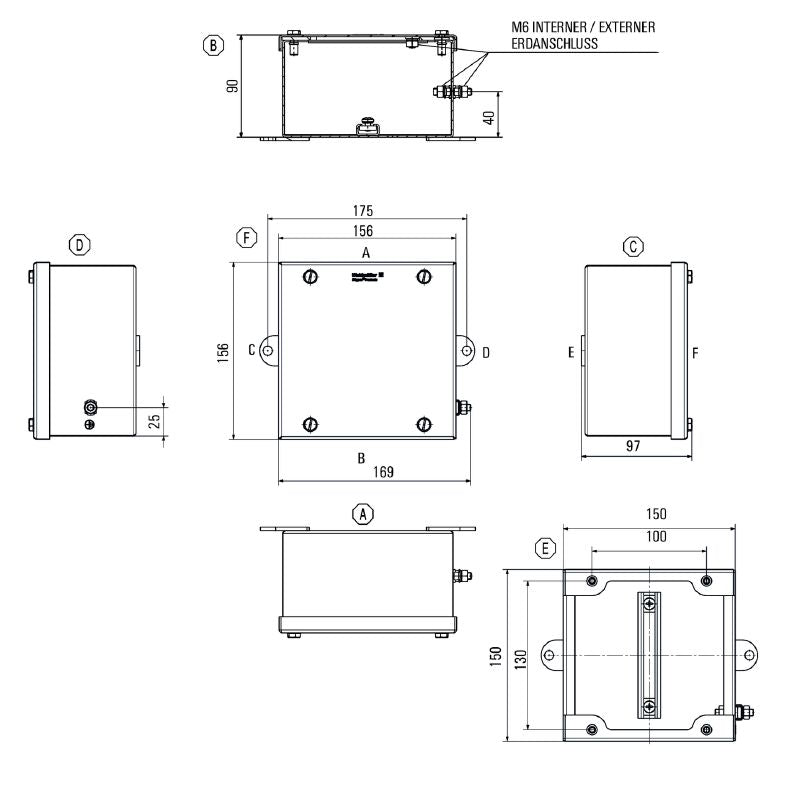

Specifications:

 Height 150 mm
 Width 150 mm
 Depth 90 mm
 Net weight 1,670 g
 Operating temperature (min) -60 °C
 Operating temperature (max) 120 °C
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Seal material Silicone
 Cable glands {'Left': {'M12': '15', 'M16': '10', 'M20': '8', 'M25': '3', 'M32': '3', 'M40': '2', 'M50': '1'}, 'Right': {'M12': '15', 'M16': '8', 'M20': '6', 'M25': '2', 'M32': '2', 'M40': '2', 'M50': '1'}, 'Top/Bottom': {'M12': '15', 'M16': '10', 'M20': '8', 'M25': '3', 'M32': '3', 'M40': '2', 'M50': '1'}}
 Approval conditions LR
 Certificate No. (LLOYDSREG) LR23307703TA
 Protection degree IP66
 Earth enclosure cover {'Welded-on M6 x 10 stainless-steel earth stud': 'Yes', 'Welded-on M6 x 16 stainless-steel bolts': 'Yes'}
 Standards DIN 4102-12
