1024980000 - Powder-Coated 150mm Small Steel Terminal Box in Pebble Grey

1024980000 - Powder-Coated 150mm Small Steel Terminal Box in Pebble Grey

SKU: 1024980000   Download PDF

Select a Variant:
  • 1024980000 - Powder-Coated 150mm Small Steel Terminal Box in Pebble Grey
Qty:
Now $234.34   Web pricing policy
BEFORE   $0.00 Now $234.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

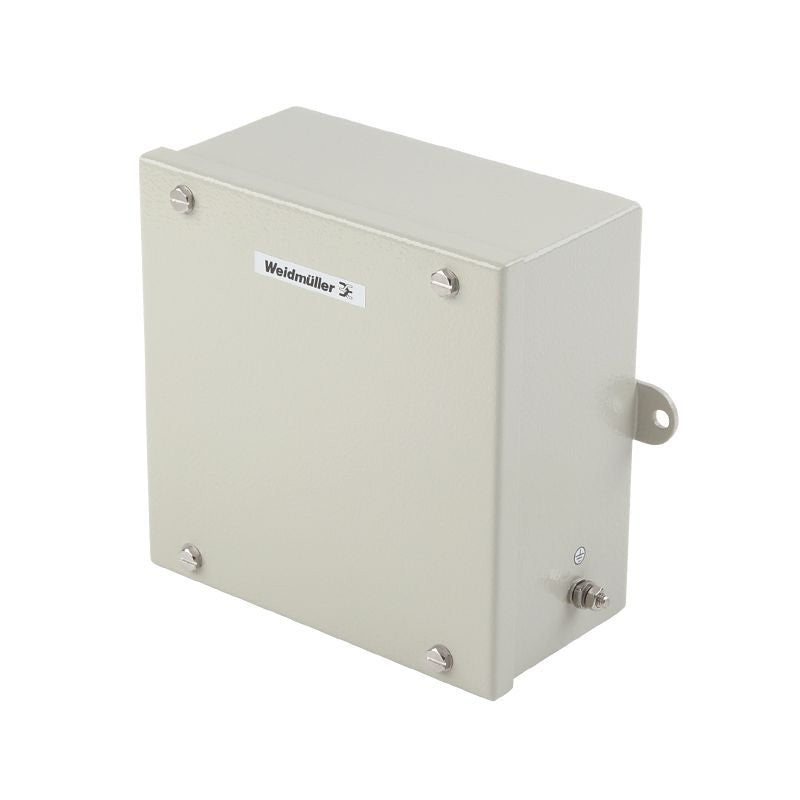

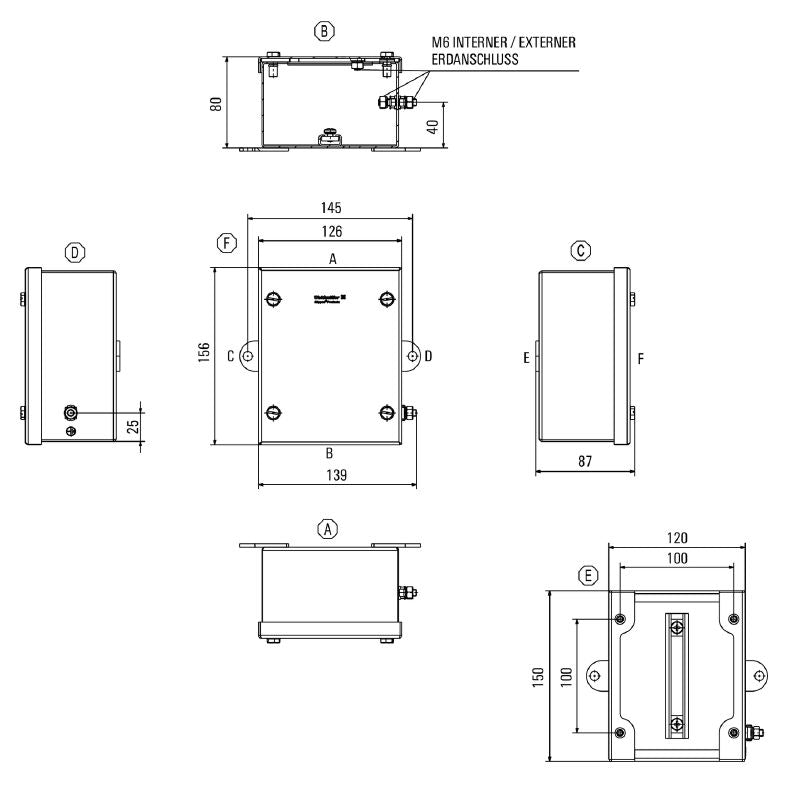

Introducing the Klippon STB (Small Terminal Box), a durable enclosure crafted from sheet steel Measuring 150 mm in height, 120 mm in width, and 80 mm in depth, this box features a sleek pebble grey powder-coated finish It’s an ideal choice for a variety of applications, providing a reliable and sturdy solution for housing electrical components.

Features and Benefits:

    •Access opening dimensions: height 132 mm, width 100 mm.

    •Welded-on mounting foot with 8-mm holes for attachment.

    •Lid with M5 hexagonal screw attachment.

    •Impact resistance rated at 10 J standard.

    •Protection class: Type 4 and Type 4X.

    •Protection degree IP66.

    •Made from sheet steel with a powder-coated finish.

    •Max payload capacity of 12.6 kg.

    •Transportation.

    •Marine engineering.

    •Process industry.

    •Packaging industry.

Specifications:

 Operating temperature -60 °C...120 °C
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Number of lid screws 4
 Seal material Silicone
 Housing earth {'Cross-section, max': '25 mm²', 'Earth, enclosure, cover': 'Welded-on M6 x 10 stainless-steel earth stud', 'Earth, enclosure, external': 'Welded-on M6 x 16 stainless-steel bolts', 'Earth, enclosure, internal': 'Welded-on M6 x 16 stainless-steel bolts'}
 Cable glands, left {'M12': '10', 'M16': '6', 'M20': '6', 'M25': '2', 'M32': '2', 'M40': '1'}
 Cable glands, right {'M12': '10', 'M16': '6', 'M20': '6', 'M25': '2', 'M32': '2', 'M40': '1'}
 Cable glands, top/bottom {'M12': '10', 'M16': '6', 'M20': '6', 'M25': '3', 'M32': '2', 'M40': '2'}
 ETIM Classification EC000261
 ECLASS Code 27-18-01-01
