1024970000 - 120mm Steel Terminal Box in Pebble Grey Finish

1024970000 - 120mm Steel Terminal Box in Pebble Grey Finish

SKU: 1024970000 Download PDF

Variant:
  • 1024970000 - 120mm Steel Terminal Box in Pebble Grey Finish
Now $250.38
BEFORE   $0.00 Now $250.38
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

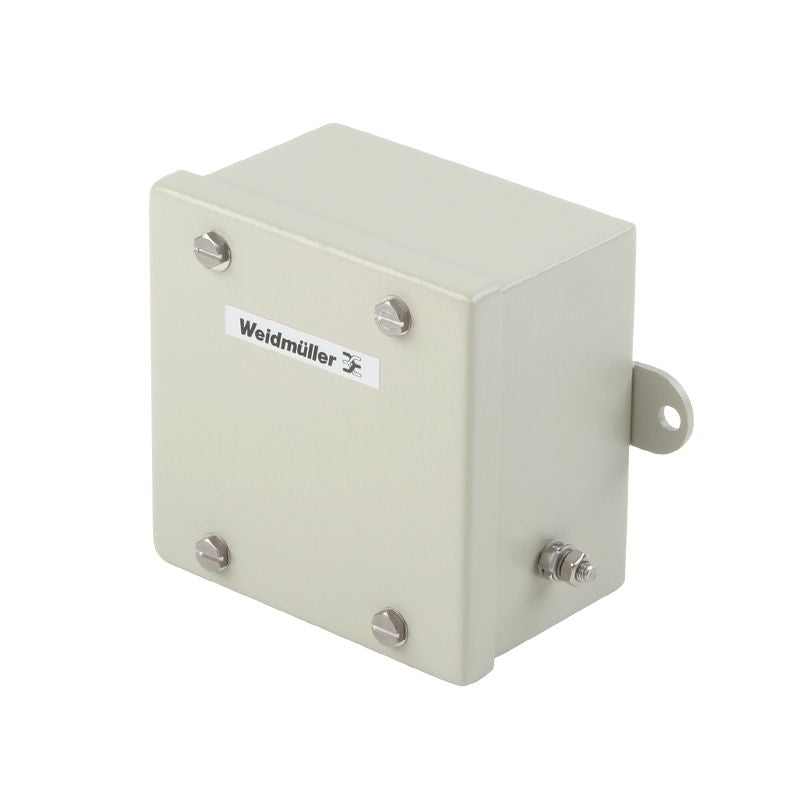

Discover the Klippon STB, a compact terminal box featuring a robust construction from sheet steel Designed as an empty enclosure, it measures 120 mm in height, 120 mm in width, and 80 mm in depth The box boasts a stylish pebble grey powder-coated finish, ensuring both aesthetics and durability for your needs.

Features and Benefits:

    •RoHS compliant without exemption.

    •Impact resistance rated at 10 J.

    •Enclosure features a welded-on mounting foot with 8-mm holes.

    •Integral fixing with TAS 20 rail welded to the floor.

    •Powder-coated surface finish.

    •Protection degree rated IP66.

    •Operating temperature ranges from -60 °C to 120 °C.

    •Transportation.

    •Marine engineering.

    •Process industry.

    •Packaging industry.

Specifications:

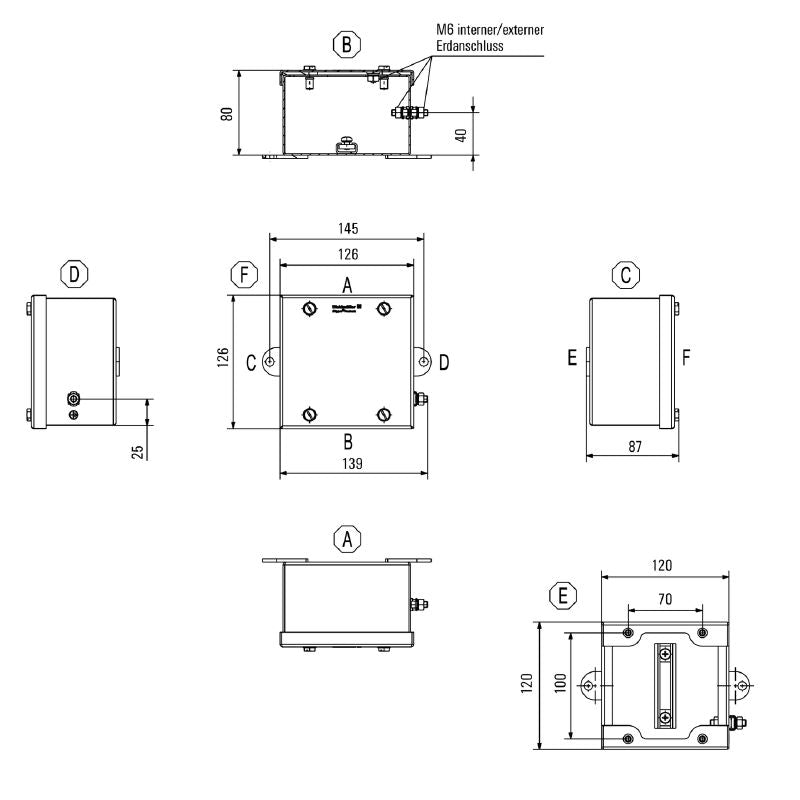

 Dimensions (H x W x D) 120 mm x 120 mm x 80 mm
 Net weight 1,218 g
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Protection class Type 4, Type 4X
 Cable glands left {'M12': 10, 'M16': 6, 'M20': 6, 'M25': 3, 'M32': 2, 'M40': 2}
 Cable glands right {'M12': 8, 'M16': 4, 'M20': 4, 'M25': 2, 'M32': 1, 'M40': 1}
 Cable glands top/bottom {'M12': 10, 'M16': 6, 'M20': 6, 'M25': 3, 'M32': 2, 'M40': 2}
 Earth connection {'Earth enclosure cover': 'Welded-on M6 x 10 stainless-steel earth stud', 'Earth enclosure external': 'Welded-on M6 x 16 stainless-steel bolts', 'Earth enclosure internal': 'Welded-on M6 x 16 stainless-steel bolts'}
 Approval conditions LR23307703TA
 Operating temperature range -60 °C to 120 °C
 Fire rating up to E90 acc. to DIN 4102-12
