1002740000 - Stainless Steel Terminal Box 150x150x90mm, RoHS Compliant

SKU: SKU: 1002740000 Download PDF

Variant:

1002740000 - Stainless Steel Terminal Box 150x150x90mm, RoHS Compliant

Now $442.24

~~BEFORE $0.00~~ Now $442.24

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

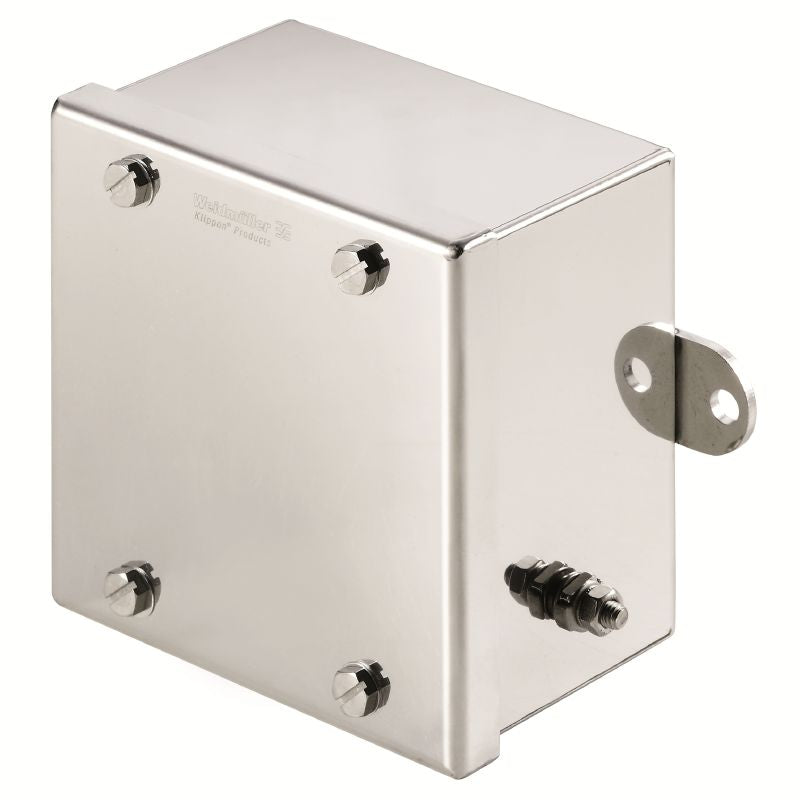

Introducing the Klippon STB, a robust terminal box constructed from high-grade stainless steel, specifically the 14404 (316L) alloy, known for its durability This enclosure features an eye-catching mirror-polished silver finish and has dimensions of 150 mm in height, 150 mm in width, and 90 mm in depth Additionally, it meets RoHS compliance standards without any exemptions, making it a reliable choice for various applications.

Features and Benefits:

•Made from stainless steel 1.4404 (316L).

•Mirror polished surface finish.

•IP66 protection degree.

•Operating temperature range of -60 °C to 100 °C.

•Impact resistance of 10 J.

•Explosive risk zone.

•Packaging industry.

•Transportation.

•Process industry.

•Marine engineering.

Specifications:

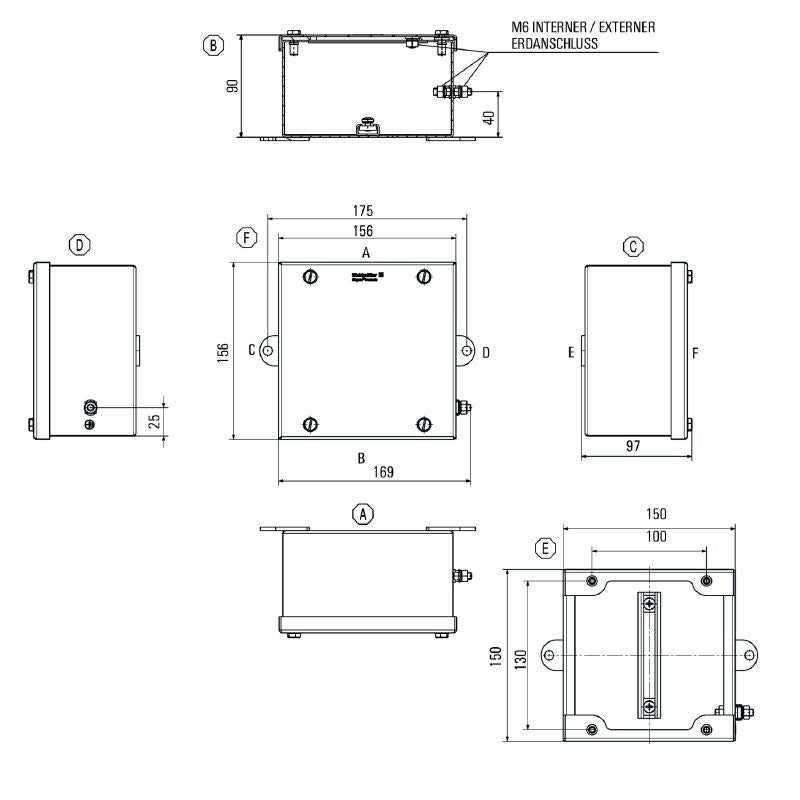

Dimensions	Height: 150 mm, Width: 150 mm, Depth: 90 mm
Net weight	1,708 g
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Protection class (UL)	Type 4, Type 4X
Seal material	Silicone
Torque for lid screws	2.5 Nm
Access opening dimensions	Height: 130 mm, Width: 132 mm
Mounting dimension - width	175 mm
Cable glands specifications	{'M12': 15, 'M16': 10, 'M20': 8, 'M25': 3, 'M32': 3, 'M40': 2, 'M50': 1}
Approval conditions	['ATEX', 'DNV', 'CCC', 'IECEX', 'INMETRO', 'LR', 'RMRS', 'UL AEx Class Div.', 'UL AEx Class Zone', 'cULus', 'KC']
