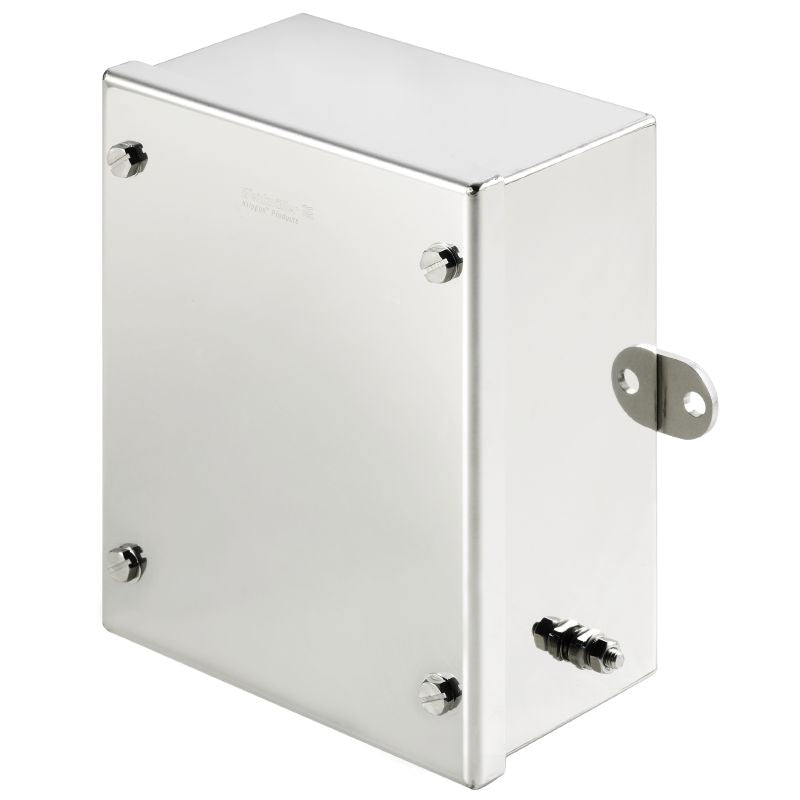

1002730000 - Stainless Steel Small Terminal Box, 190mm x 150mm x 90mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon STB (Small Terminal Box), a versatile enclosure crafted from durable stainless steel Measuring 190 mm in height, 150 mm in width, and 90 mm in depth, this box is built to withstand the elements Made from stainless steel 14404 (316L), it boasts a striking mirror-polished silver finish that not only enhances its aesthetic appeal but also ensures long-lasting reliability Whether for industrial or commercial use, the Klippon STB offers the perfect solution for all your enclosure needs.

Features and Benefits:

•Mirror polished finish.

•Constructed from stainless steel 1.4404 (316L).

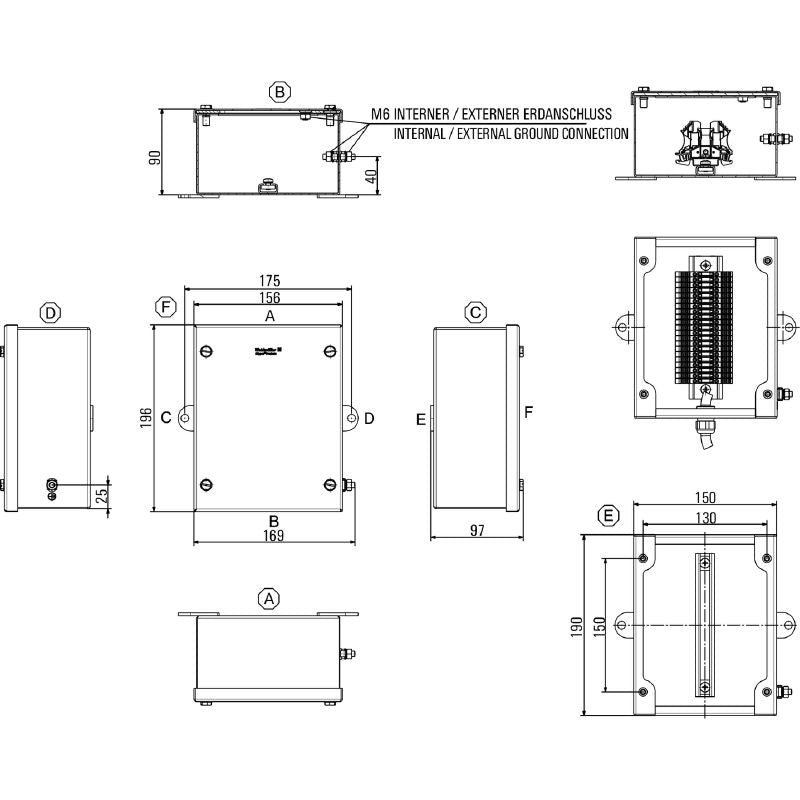

•Access opening dimensions: height 172 mm, width 130 mm.

•Suitable for various applications including explosive risk zones, packaging industry, transportation, process industry, and marine engineering.

•Welded-on mounting foot with 8-mm holes for enclosure attachment.

•Lid attachment with M5 hexagonal screws and 10 mm across flats.

•Explosive risk zone.

•Packaging industry.

•Transportation.

•Process industry.

•Marine engineering.

Specifications:
