1002700000 - Stainless Steel Terminal Box 160mm x 380mm for Harsh Environments

1002700000 - Stainless Steel Terminal Box 160mm x 380mm for Harsh Environments

SKU: 1002700000   Download PDF

Select a Variant:
  • 1002700000 - Stainless Steel Terminal Box 160mm x 380mm for Harsh Environments
Qty:
Now $907.16   Web pricing policy
BEFORE   $0.00 Now $907.16 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

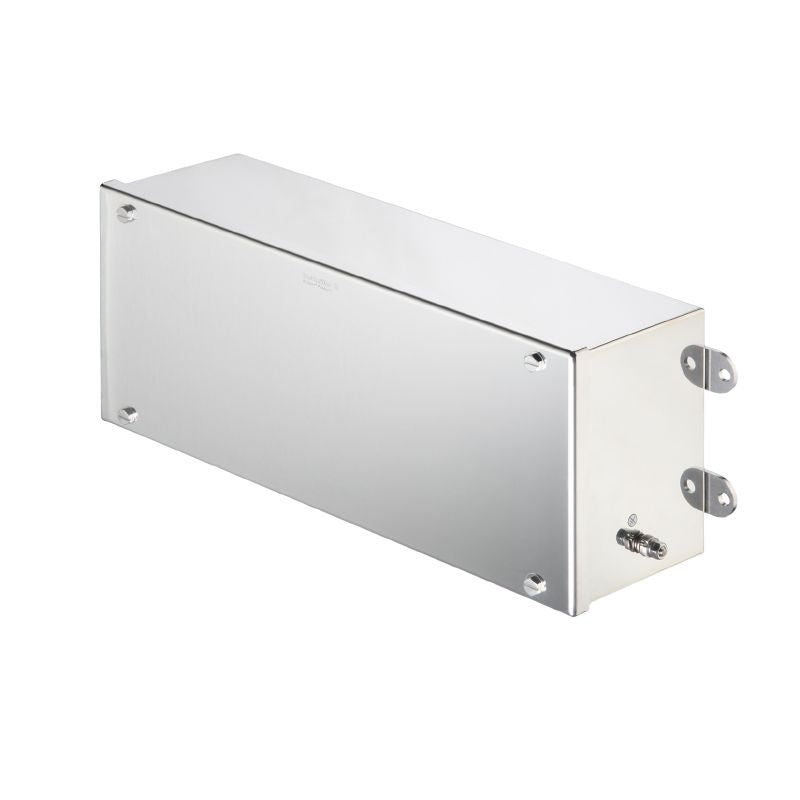

Introducing the Klippon STB terminal box, expertly crafted to withstand tough conditions This empty enclosure boasts dimensions of 160 mm in height, 380 mm in width, and 120 mm in depth Constructed from premium stainless steel 14404 (316L), it features a stunning mirror-polished finish that adds a sleek silver touch Compliant with RoHS regulations, this terminal box is versatile and ideal for use in explosive risk environments, the packaging sector, transportation, manufacturing processes, and marine engineering.

Features and Benefits:

    •Mirror polished surface.

    •Welded-on mounting foot with 8-mm holes for secure attachment.

    •Suitable for explosive risk zones.

    •Compliant with environmental standards including RoHS.

    •Explosive risk zone.

    •Packaging industry.

    •Transportation.

    •Process industry.

    •Marine engineering.

Specifications:

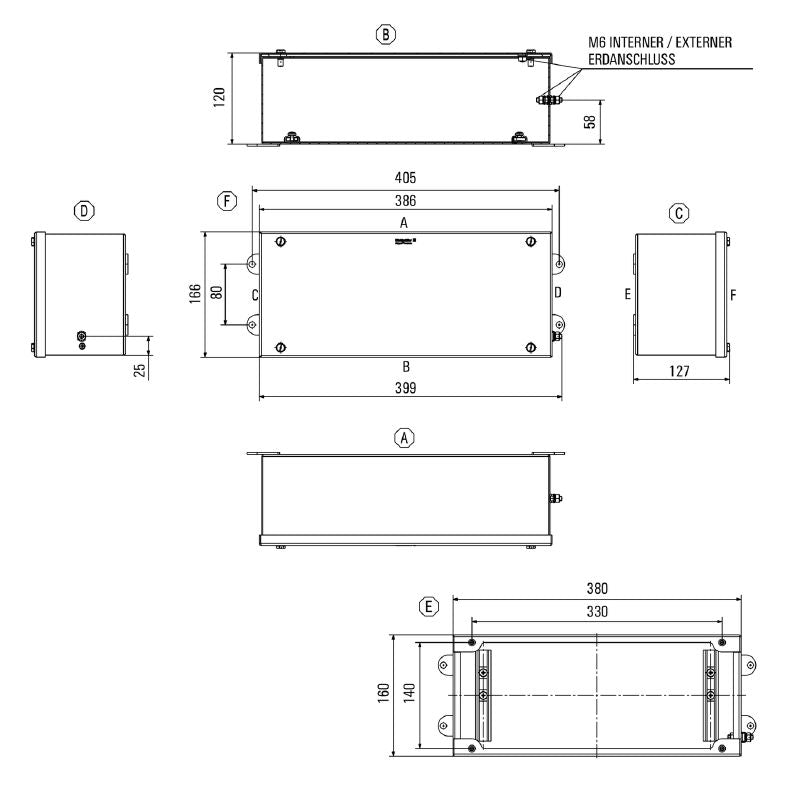

 Height 160 mm
 Width 380 mm
 Depth 120 mm
 Operating temperature -60 °C to 100 °C
 Protection class Type 4 / Type 4X
 Protection degree IP66
 Basic material Stainless steel 1.4404 (316L)
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Net weight 3,936 g
