Description:

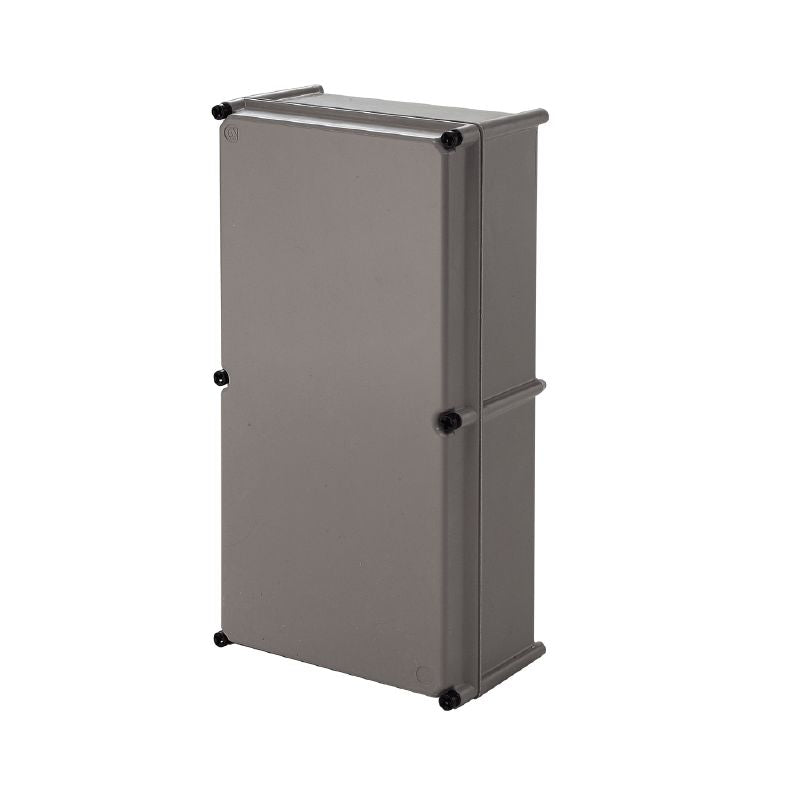

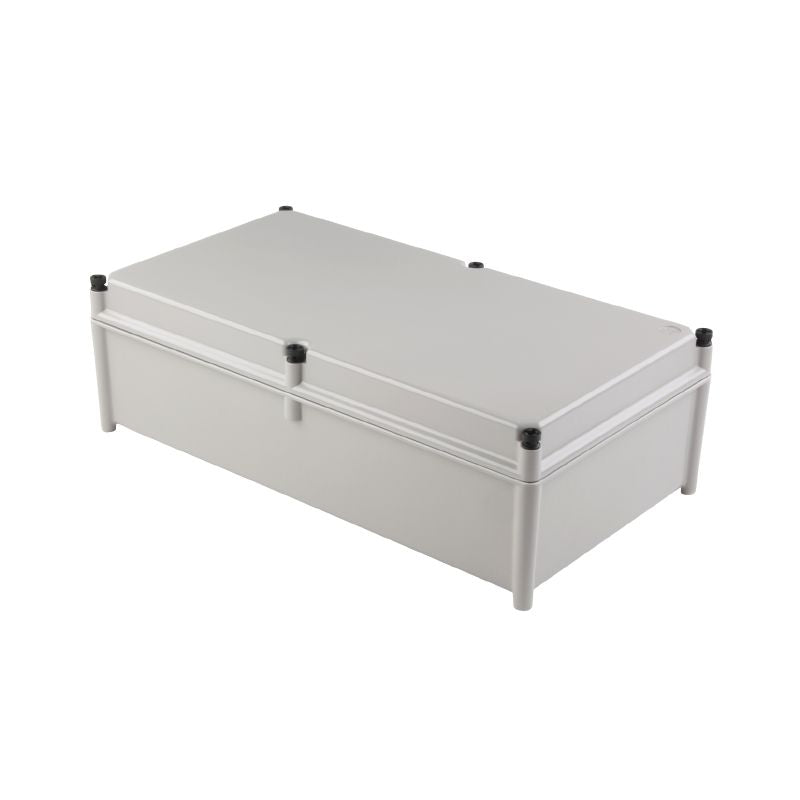

Discover the TBF 60/30/18 7035, a robust empty enclosure made from untreated glass fibre-reinforced polyester, presented in a subtle light grey hue Measuring 603 mm in height, 302 mm in width, and 175 mm in depth, this enclosure is designed to meet RoHS regulations, ensuring environmental compliance It can withstand a broad temperature range from -50 °C to +130 °C, with a maximum continuous operating temperature of 70 °C, making it an ideal choice for various applications.

Features and Benefits:

    •Designed for building systems and technology, transportation, and the packaging industry.

    •Installed via screw mounting with integral fixing for secure attachment.

    •Building systems and technology.

    •Transportation.

    •Packaging industry.

    •Machine construction.

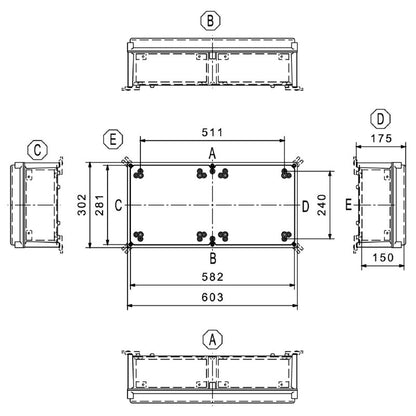

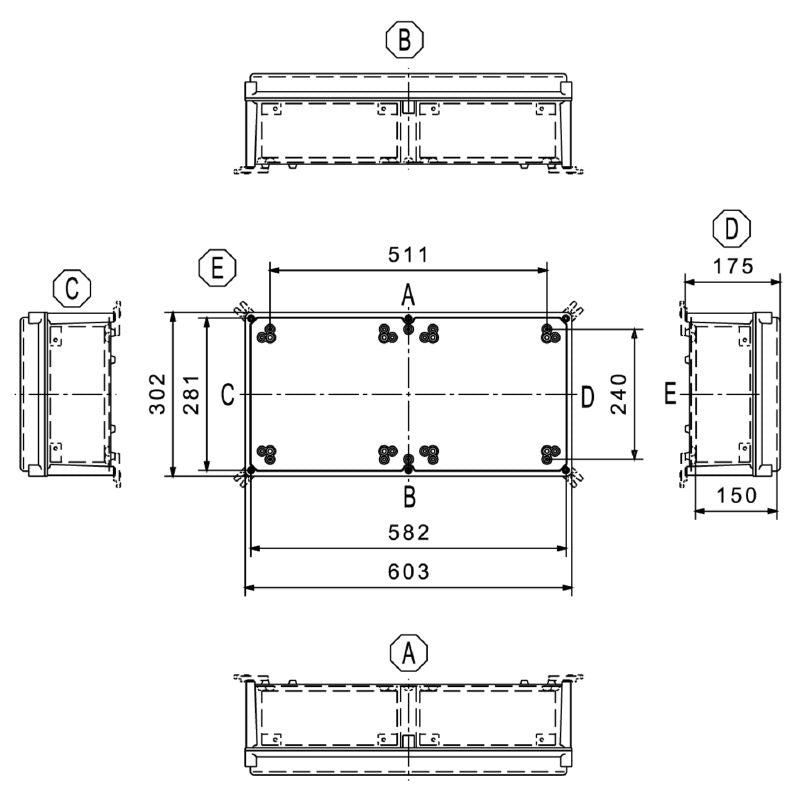

Specifications:

 Depth 175 mm
 Height 603 mm
 Width 302 mm
 Net weight 4,479 g
 Access opening height 578 mm
 Access opening width 276 mm
 Basic material Glass fibre-reinforced polyester
 Operating temperature -50 °C...130 °C
 Protection degree IP67
 Seal material Polyurethane
 Standards IEC 60529, EN 60529, EN 62208, EN/IEC 61439-2
 Flammability rating HB
 Installation advice Screw mounting
