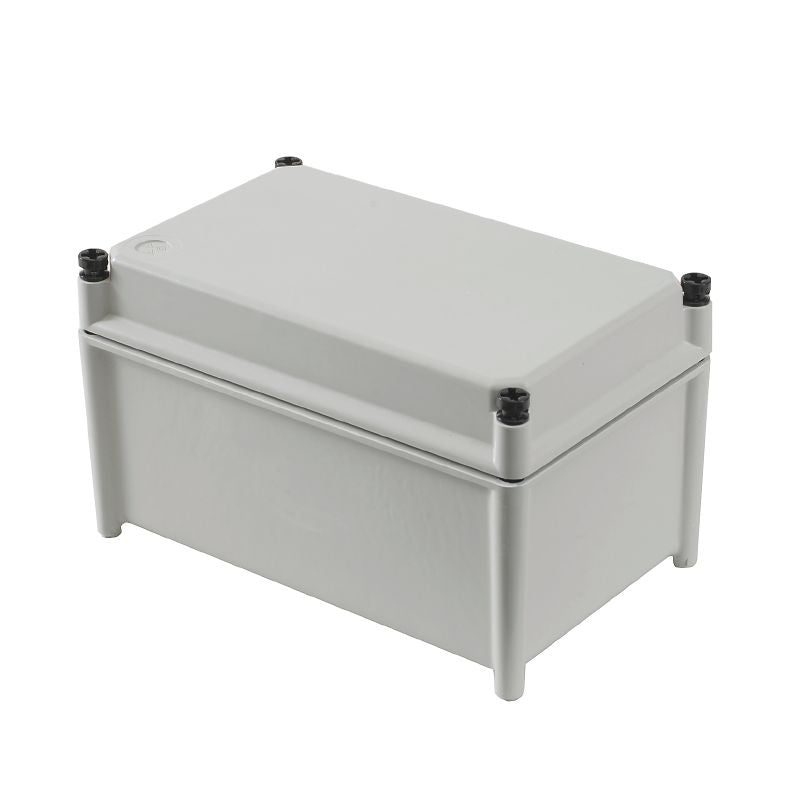

0360200000 - IP67 Glass Fiber Enclosure, 302mm H, Light Grey

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

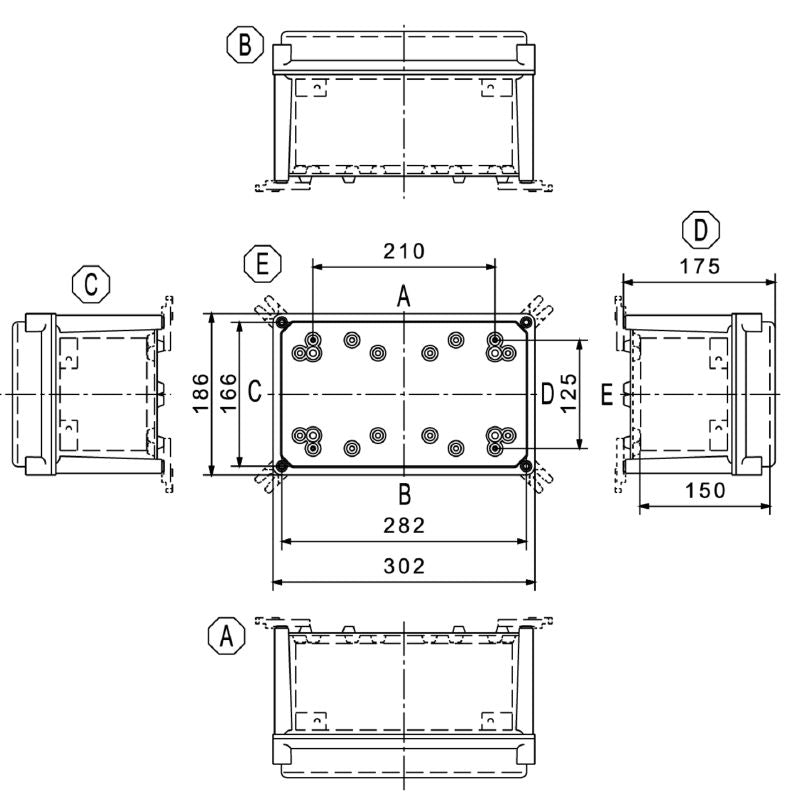

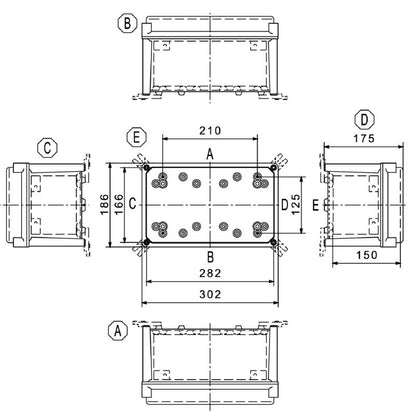

Introducing the TBF 30/19/18 7035, a robust enclosure crafted from glass fiber-reinforced polyester, standing at 302 mm high, 186 mm wide, and 175 mm deep This light grey enclosure weighs just 1,857 g and meets RoHS compliance standards, ensuring it’s free from any SVHC substances exceeding 01 wt% It boasts temperature resilience, functioning effectively in a range from -50 °C up to 130 °C, with a peak continuous operating temperature of 70 °C.

Featuring an IP67 protection class, this enclosure is ideal for diverse applications such as building systems and technology, transportation, packaging, and machine construction.

Features and Benefits:

•Constructed from glass fiber-reinforced polyester.

•Impact resistant to IK08 and IK10 ratings.

•IP67 protection degree.

•Free from halogens.

•Untreated surface finish.

•Suitable for screw mounting.

•Access opening available for easy use.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:
