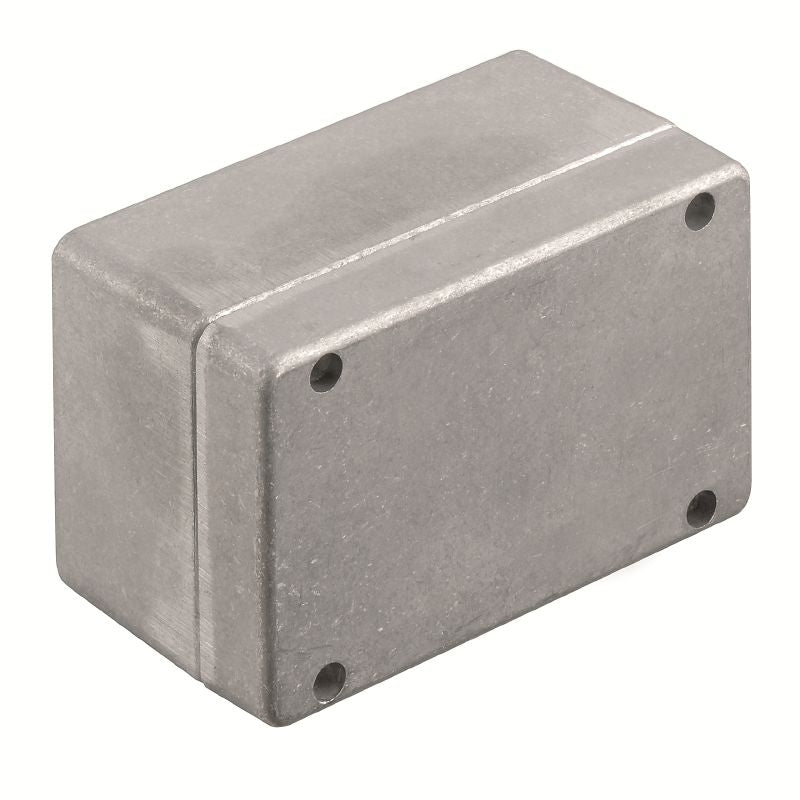

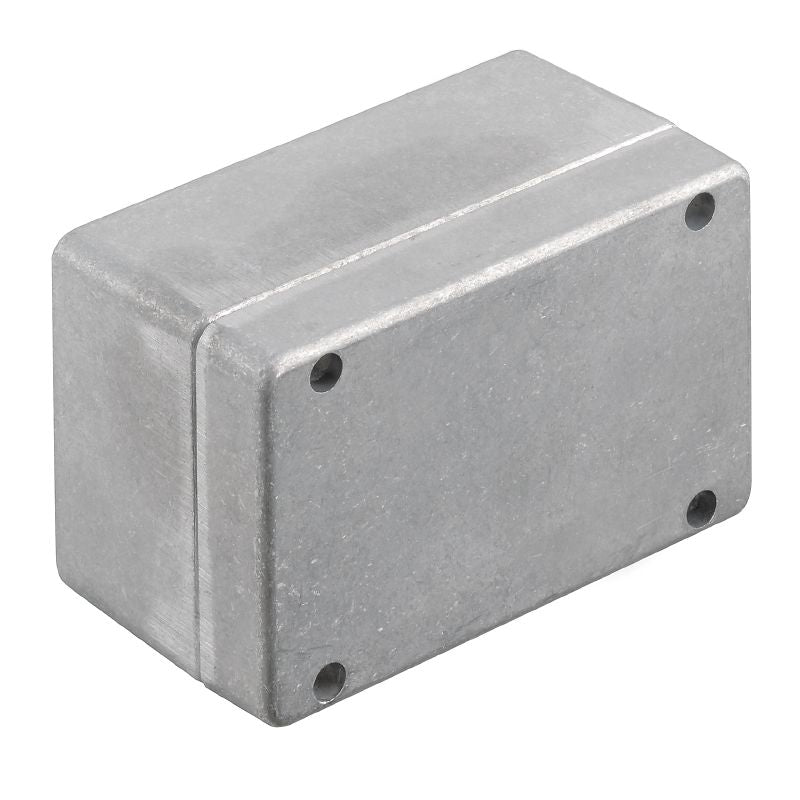

0342300000 - KLIPPON K4 Aluminium Enclosure, 82mm x 130mm x 72mm

0342300000 - KLIPPON K4 Aluminium Enclosure, 82mm x 130mm x 72mm

SKU: 0342300000   Download PDF

Select a Variant:
  • 0342300000 - KLIPPON K4 Aluminium Enclosure, 82mm x 130mm x 72mm
Qty:
Now $54.07   Web pricing policy
BEFORE   $0.00 Now $54.07 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the KLIPPON K4, a versatile empty enclosure crafted from untreated aluminium AlSi12 With dimensions of 82 mm in height, 130 mm in width, and 72 mm in depth, this enclosure is designed for various applications It meets RoHS compliance standards and carries the certificate number E197061 for cULus approval, ensuring quality and safety for your projects.

Features and Benefits:

    •General purpose aluminium enclosure.

    •Access openings with specific dimensions (height: 74 mm, width: 122 mm).

    •Can be used in harsh environments, protected by IP68.

    •Includes mounting holes with a size of 5 mm for secure installation.

    •Lid secured with M4 torx stainless steel screws.

    •Process industry.

    •Transportation.

    •Marine engineering.

    •Packaging industry.

    •Harbour facilities.

    •Machine construction.

Specifications:

 Depth (mm) 72
 Height (mm) 82
 Width (mm) 130
 Basic material Aluminium AlSi12
 Material thickness of cover (mm) 2.5
 Material thickness of enclosure (mm) 4
 Protection class IP68 (t=72h, h=1m)
 Protection degree IP66, IP67, IP68
 Operating temperature (min) -40 °C
 Operating temperature (max) 80 °C
 Net weight (g) 633
