8000115911 - Stainless Steel Terminal Box 859mm x 853mm, RoHS Compliant

8000115911 - Stainless Steel Terminal Box 859mm x 853mm, RoHS Compliant

SKU: SKU: 8000115911 Download PDF

Variant:
  • 8000115911 - Stainless Steel Terminal Box 859mm x 853mm, RoHS Compliant
Regular price Now $264.50
Regular price BEFORE   $0.00 Sale price Now $264.50
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

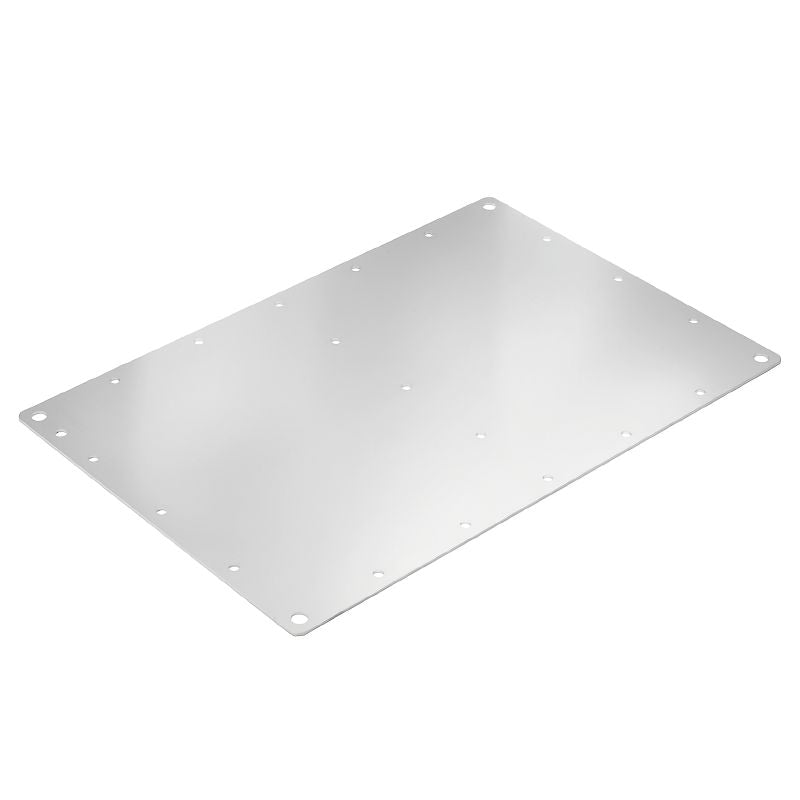

Introducing the KTB MOPL 9191 S2N H terminal box, expertly designed with a robust mounting plate Measuring 859 mm in height, 853 mm in width, and 12 mm in depth, this terminal box is constructed from untreated stainless steel 14301 (304) and sports an elegant silver finish It meets RoHS standards, ensuring compliance with safety regulations This terminal box is a reliable choice for your installation needs.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Constructed from stainless steel 1.4301 (304).

    •Mounting dimensions specified.

Specifications:

 Depth 12 mm
 Height 859 mm
 Width 853 mm
 Mounting dimension - height 414.5 mm
 Mounting dimension - width 411.5 mm
 Material thickness 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Protection degree with corresponding enclosure
 Surface finish untreated
 ETIM 6.0 EC000213
 ETIM 7.0 EC000213
 ETIM 8.0 EC000213
 ETIM 9.0 EC000213
 ETIM 10.0 EC000213
 ECLASS 9.0 27-40-06-39
 ECLASS 9.1 27-18-92-90
 ECLASS 10.0 27-40-06-39
 ECLASS 11.0 27-40-06-39
 ECLASS 12.0 27-40-06-39
 ECLASS 13.0 27-40-06-39
 ECLASS 14.0 27-40-06-39
 ECLASS 15.0 27-40-06-39
