Description:

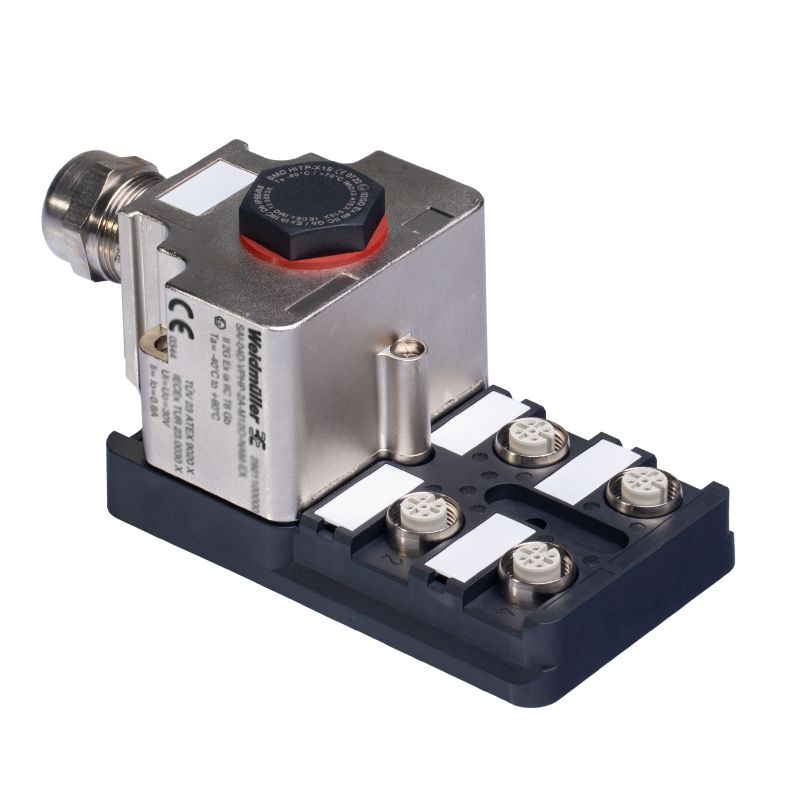

Introducing the SAI-04D-VPHP-5A-M12O-1:1-EX, a specialized M12 hood model tailored for 30 V applications This product does not include an LED or LED initiator, ensuring a straightforward setup Featuring a 1:1 wiring type, it adheres to RoHS reporting exemptions and meets all necessary environmental regulations, making it a reliable choice for your needs.

Features and Benefits:

•PUSH IN wire connection method.

•Protection degree of IP66 and IP67.

•Operating temperature range from -40 to 60°C.

•Includes 2 protection caps, a cable gland, a sealing plug, and a device marker.

Specifications:

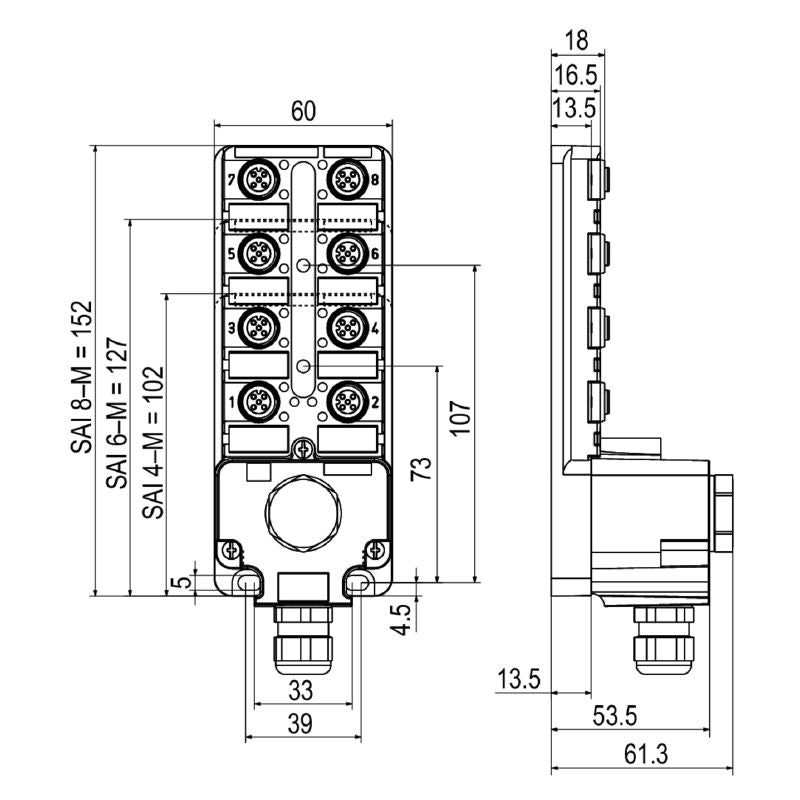

Dimensions	{'Depth': '60 mm', 'Height': '61.3 mm', 'Length': '102 mm'}
Rated voltage	{'min': '0 V', 'max': '30 V'}
Max. current-carrying capacity	0.8 A
Number of poles	5
Number of contact sockets	4
Connection thread	M12
Housing main material	Pocan (base module), Zinc diecast (hood)
Contact material	CuZn
Contact surface	Gold-plated
Plugging cycles	≤ 50
