2818940000 - IP67 Sensor-Actuator Distributor, 3 Poles, -25 to 80°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

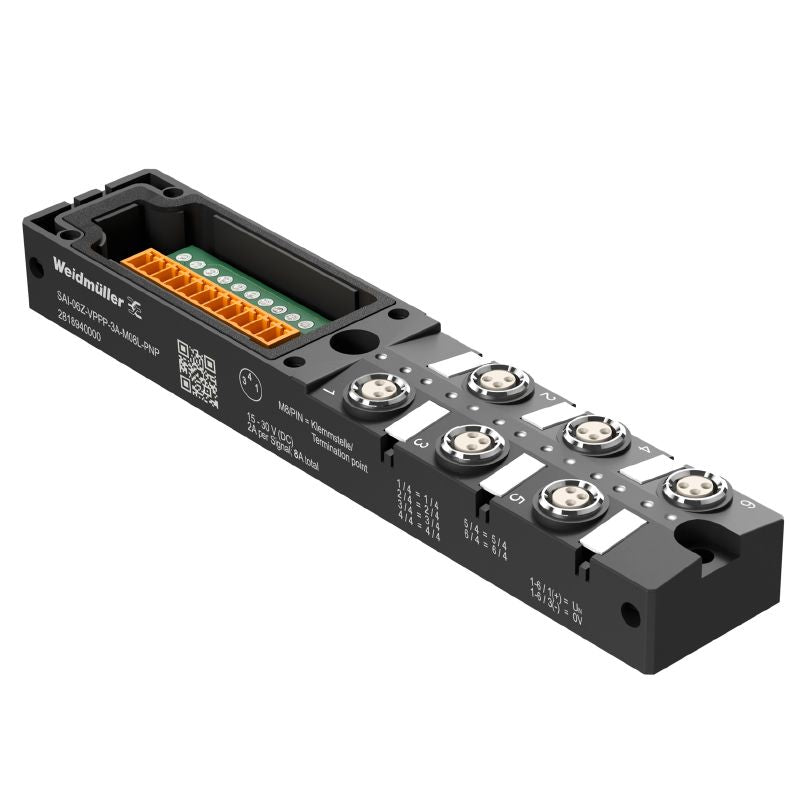

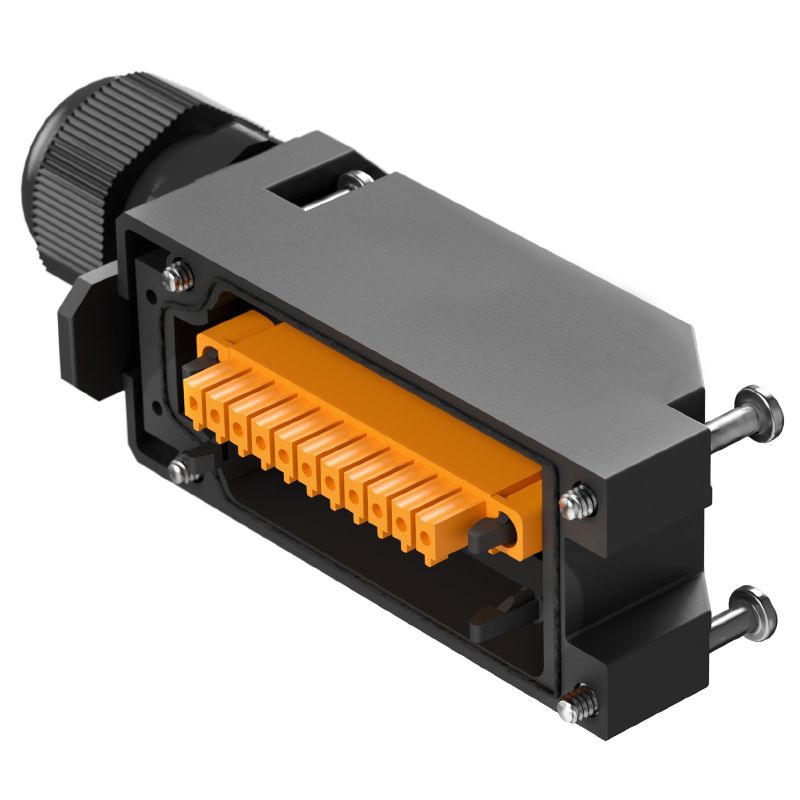

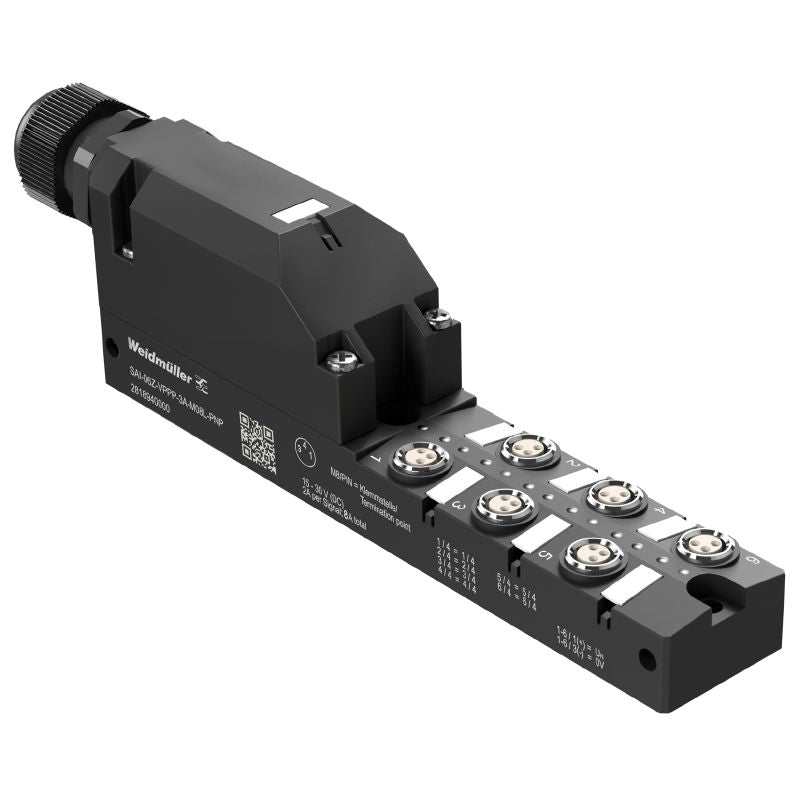

Introducing the SAI-06Z-VPPP-3A-M08L-PNP, an efficient sensor-actuator passive distributor well-suited for various applications Operating effectively in temperatures ranging from -25°C to 80°C, this distributor features 3 poles along with 6 contact sockets It adheres to RoHS standards and is free from any SVHC above 01 wt% With a versatile clamping range accommodating from 008 mm² to 15 mm², it comes equipped with a convenient hood distributor and utilizes a push-in connection type for easy setup.

The electrical specifications ensure reliability, with a minimum rated voltage of 15V and a maximum of 30V It has a total current handling capability of 6A and permits a maximum of 4A per slot Additionally, the distributor boasts an IP67 protection rating, making it suitable for challenging environments.

Features and Benefits:

•Compliant with RoHS without exemption.

•Operating temperature range of -25 to 80°C.

•LED indicators for operational and I/O functions.

•Protection degree IP67.

•Fire behaviour rated as V-0.
