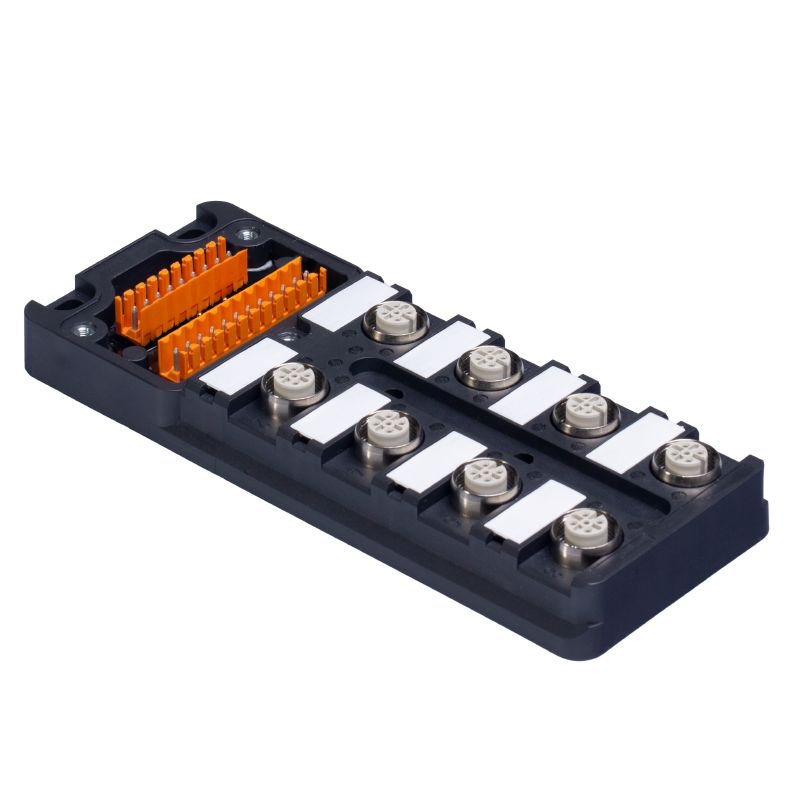

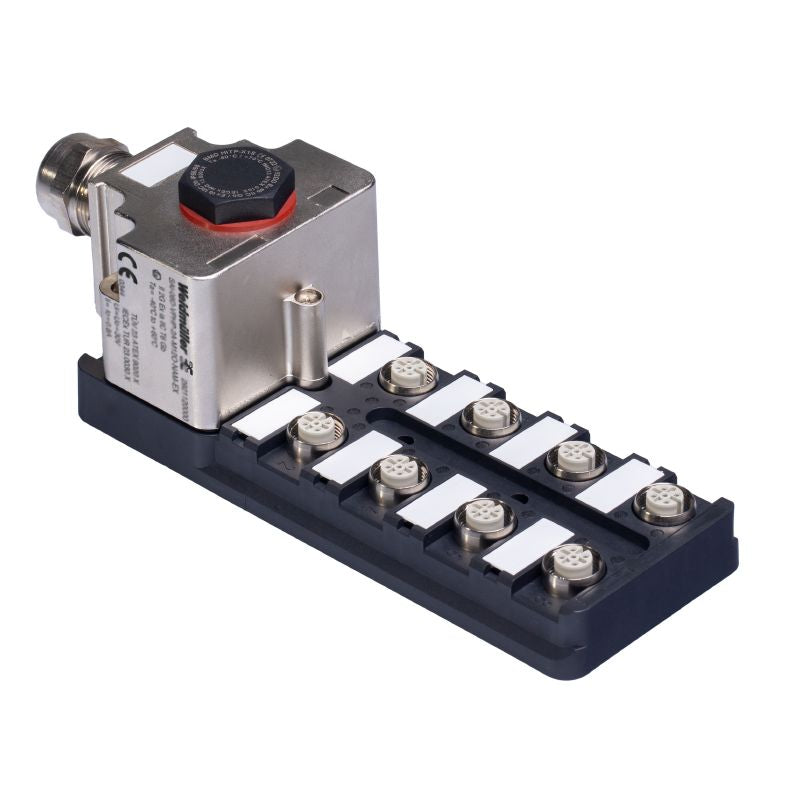

2921130000 - M12 Hood Ex with 30V Rating, 152mm Length

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

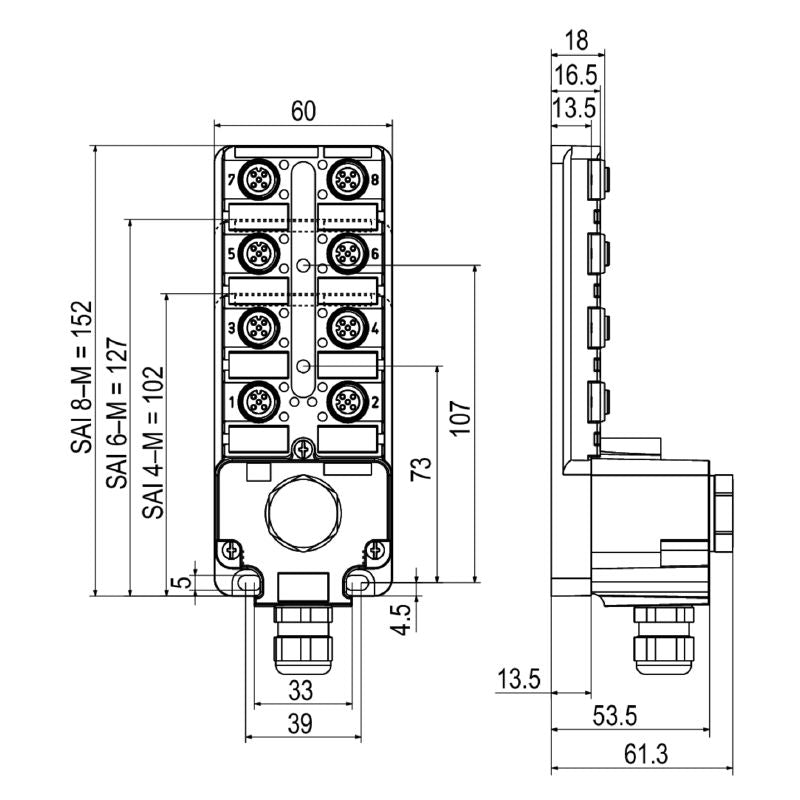

Introducing the hood variant Ex, specifically crafted for M12 applications with a voltage capacity of 30 V This model is not equipped with an LED or LED initiator It features compact dimensions, measuring 152 mm in length, 613 mm in height, and 60 mm in depth, while its weight is a manageable 250 g This device operates efficiently in temperatures ranging from -40°C to 60°C Additionally, it complies with RoHS standards, including certain exemptions, ensuring it meets environmental regulations.

Features and Benefits:

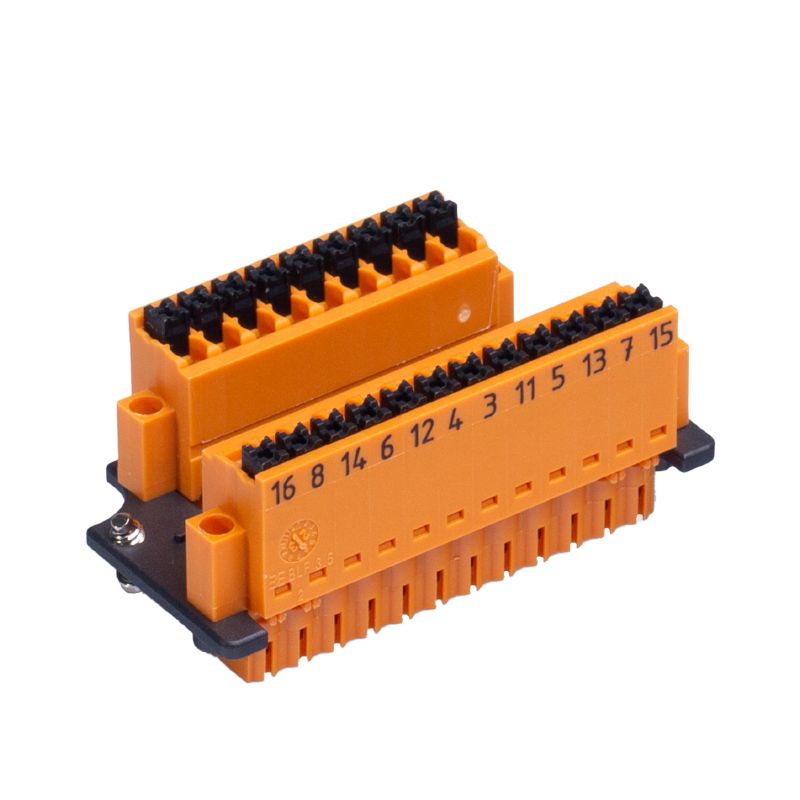

•PUSH IN wire connection method.

•IP66 and IP67 protection degree.

•Max current-carrying capacity per slot is 0.8 A.

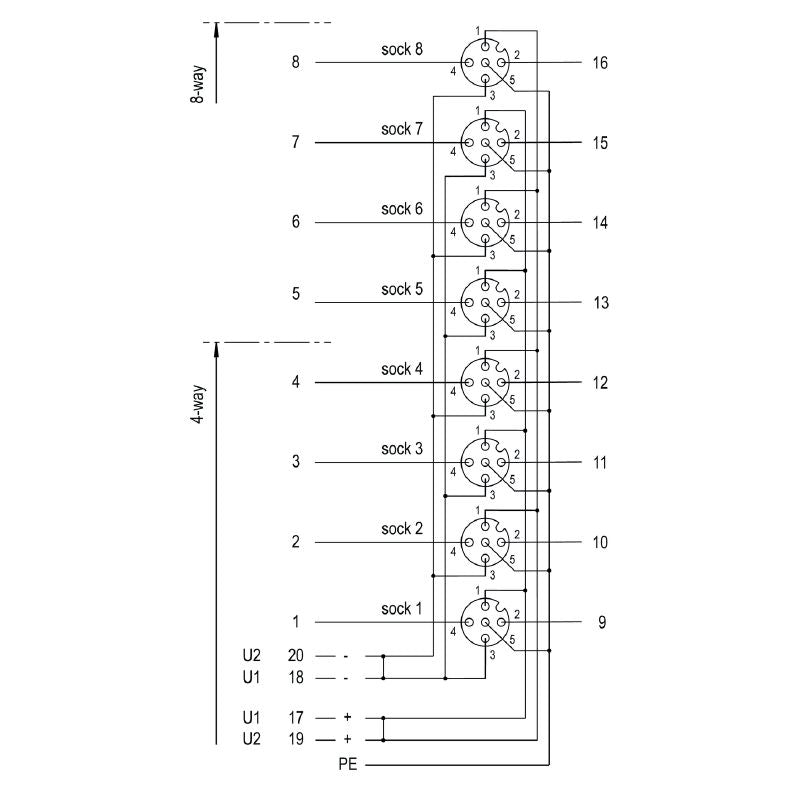

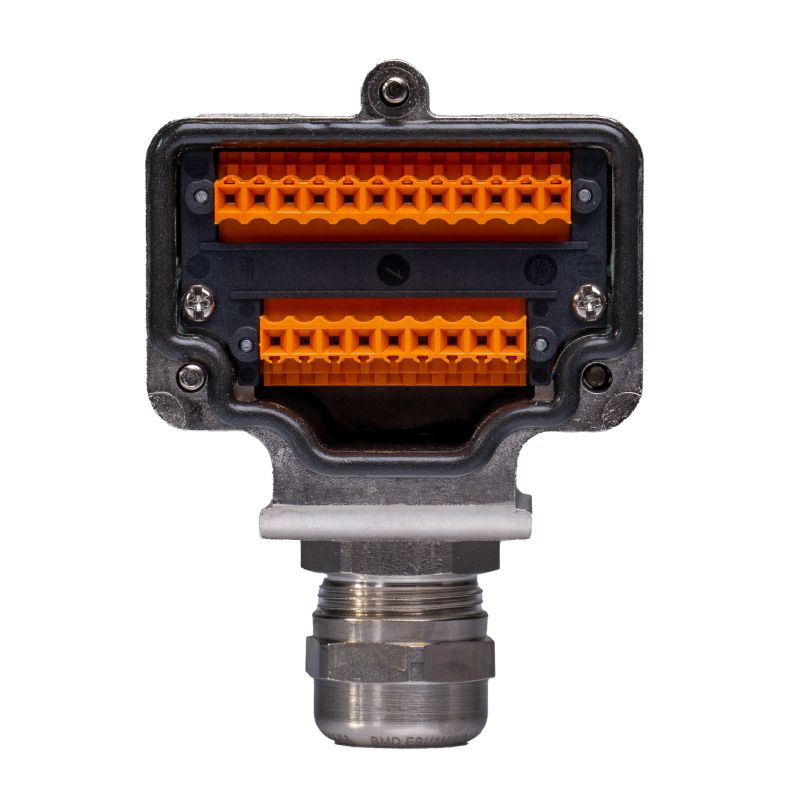

•Hood version Ex with a total of 5 poles and 8 contact sockets.

•Fire behaviour rated V-0.

•Included in delivery: 2 x Protection cap M12, 1 x Cable gland M20x1.5, 1 x Sealing Plug M20x1.5, 1 x MultiCard ESG 9/17 K Device marker.

Specifications:
