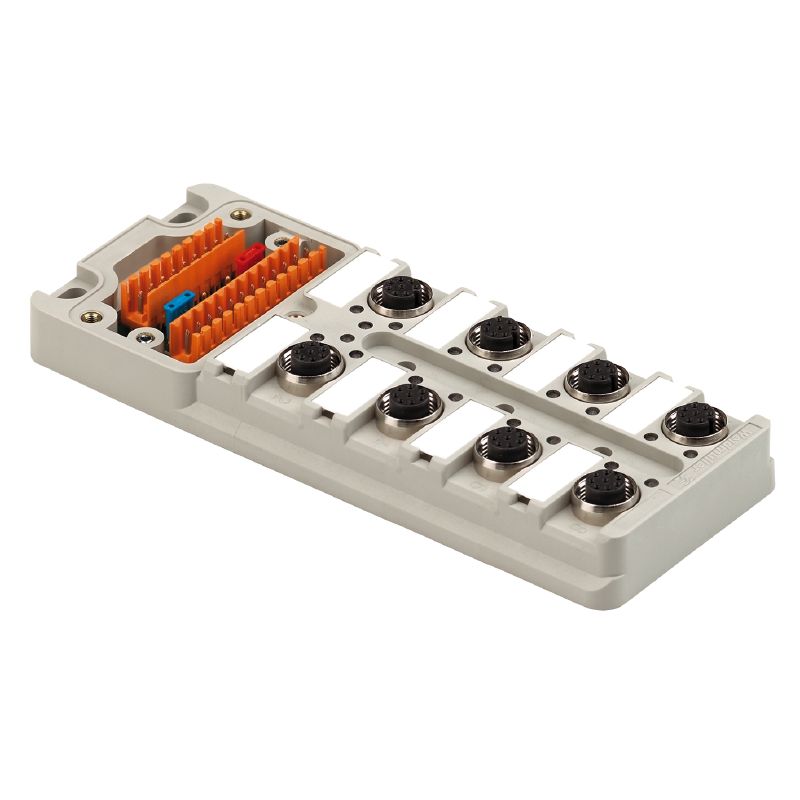

1705941000 - M12 Hood Distributor with LED Indicator, PNP Wired (Pack of 2)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our robust hood distributor lower part, specifically crafted for M12 applications and designed to operate efficiently within a voltage range of 10 to 30 V This unit is equipped with both an LED indicator and an LED initiator, enhancing its usability and functionality It features a PNP wiring setup and accommodates conductors ranging from 008 mm² to 15 mm² Additionally, this component meets RoHS compliance standards without any exemptions, ensuring environmental responsibility.

Features and Benefits:

•Compliant with RoHS without exception.

•LED indicator and initiator for operation status.

•Operating temperature range from -20°C to 90°C.

•Protection degree of IP68.

•Plug-in station coding is A-coded.

•Maximum current capacity of 10 A.

•Plastic housing and sealing material for durability.

•Gold-plated contact surfaces for enhanced conductivity.

•Nickel-plated CuZn screw socket.

Specifications:
