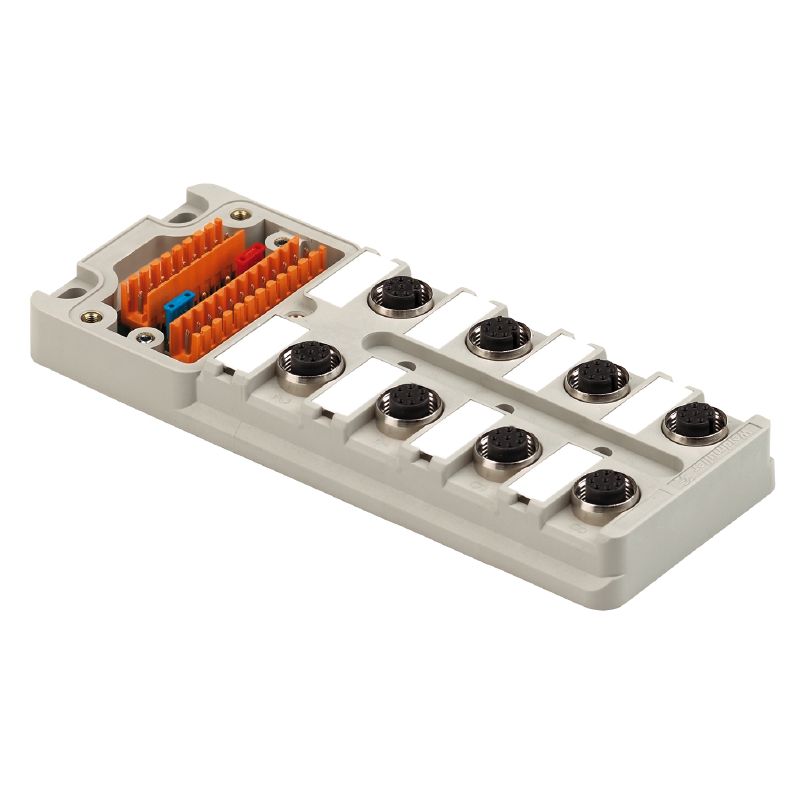

1740191000 - M12 Hood Distributor with LED, RoHS Compliant (Pack of 2)

1740191000 - M12 Hood Distributor with LED, RoHS Compliant (Pack of 2)

SKU: SKU: 1740191000 Download PDF

Variant:
  • 1740191000 - M12 Hood Distributor with LED, RoHS Compliant (Pack of 2)
Regular price Now $187.22
Regular price BEFORE   $0.00 Sale price Now $187.22
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

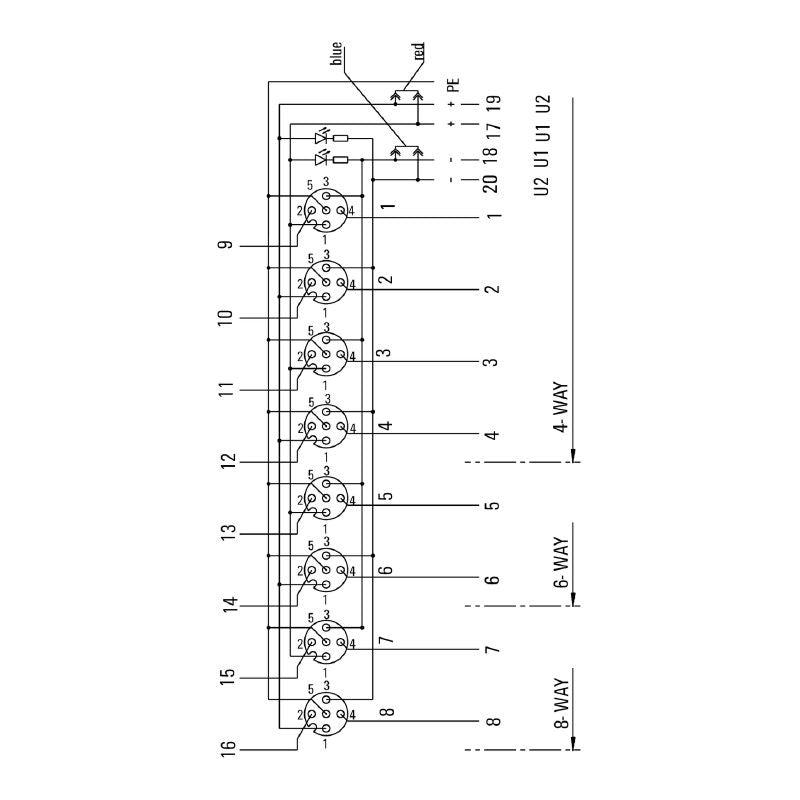

Introducing the lower section of a hood distributor tailored for M12 connections, operating efficiently at a voltage of 30 V This model is equipped with a built-in LED, though it does not feature an LED initiator Constructed with PNP wiring, this distributor meets all RoHS compliance requirements, ensuring environmentally friendly usage without exception.

Features and Benefits:

    •LED indicator available.

    •Environmentally compliant with RoHS.

    •Designed for various applications with M12 connections.

    •IP68 rated protection degree.

    •Nickel-plated screw socket for durability.

Specifications:

 Operating temperature -20 - 90°C
 Conductor O.D., min. 6 mm
 Conductor O.D., max. 12 mm
 Sheathing stripping length 100 mm
 Clamping range, min. 0.08 mm²
 Clamping range, max. 1.5 mm²
 Rated voltage, min. 10 V
 Rated voltage, max. 30 V
 Test voltage 1 kV
 Max. current-carrying capacity per slot 4 A
 Total current 10 A
 Current per signal 2 A
 Electrical isolation available Yes
 Insulation resistance 10^9 Ω
 Number of poles 5
 Number of contact sockets 8
 Connection thread M12
 Pollution severity 3
 Fire behaviour V-0
 Plugging cycles ≤ 50
 Housing main material Pocan
 Material of distributor Plastic
 Housing colour grey, RAL 7032
 Hood sealing material Viton
 Screw socket Nickel-plated CuZn
 Contact material CuZn
 Contact surface Gold-plated
 Contact carrier material PBT (UL 94 V0)
