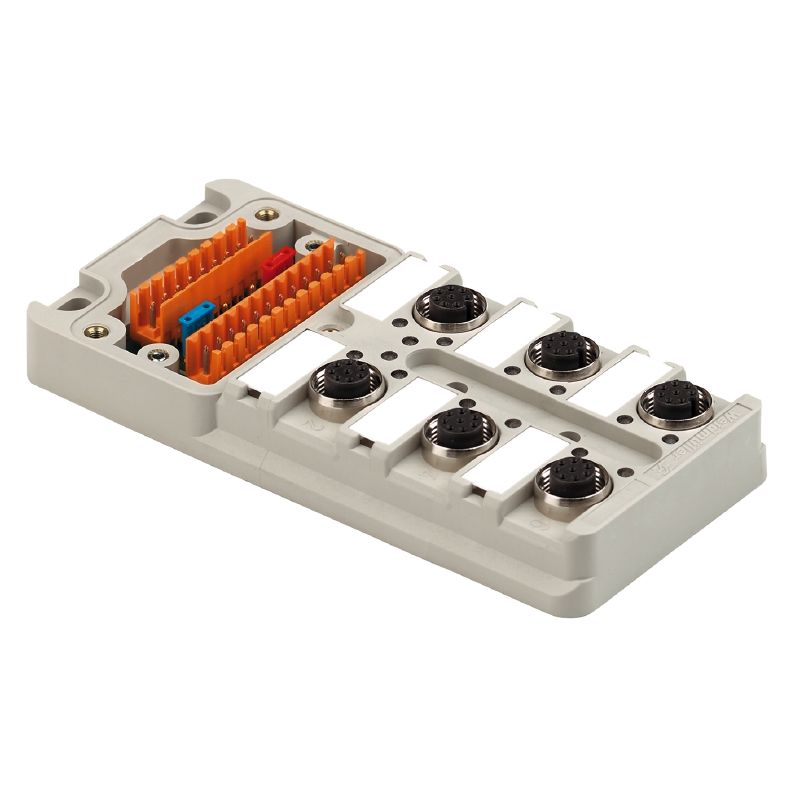

1705931000 - IP68 Hood Distributor, A-Coded Plugs, 10A Capacity (Pack of 2)

Description:

Introducing the SAI-6-M 4P M12 UT hood distributor lower part, engineered for 30 V connections with A-coded plugs This innovative product features integrated LEDs for both operation and initiation Adhering strictly to RoHS standards, it contains no SVHC substances exceeding 01 wt% With a wide temperature operating range from -20°C to 90°C, it can handle diverse environments and situations The maximum current capacity reaches 10 A, and it is constructed with a nickel-plated CuZn screw socket and a PBT contact carrier, complemented by gold-plated contact surfaces.

Its IP68 protection rating guarantees dependable performance even in demanding conditions.

Features and Benefits:

•LED indicators for operation (green) and I/O function (yellow).

•Compliant with RoHS without exemption.

•Suitable for a maximum of 10 A total current.

•Protection class IP68 for water and dust resistance.

•High-quality materials including Pocan housing and Viton sealing.

•Suitable for use in various industrial environments requiring reliable electrical connections.

Specifications:
