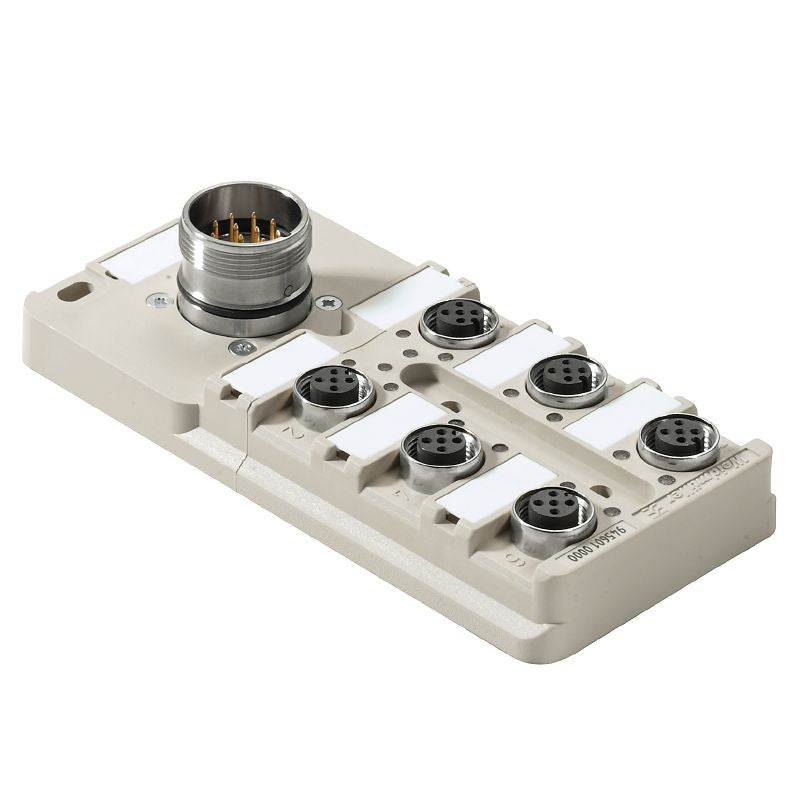

9456010001 - IP68 M23 Connector with 19 Poles, 10-30V Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-6-S 5P M12 connector, expertly engineered for dependable connections with M23 outlets This robust connector features 19 pins and operates within a voltage range of 10 to 30 V, making it ideal for various applications It boasts LED capabilities with initiation and operational indicators for enhanced functionality Meeting RoHS compliance, this unit weighs 176 g and is built to withstand operating temperatures from -20 to 90°C.

With A-coded plug-in station coding and an impressive IP68 protection rating, it ensures longevity and performance even in demanding environments.

Features and Benefits:

•Compliant with RoHS and includes an exemption for lead.

•LED indicators for operation (green) and I/O function (yellow).

•Protection grade IP68, ensuring resistance to dust and water.

•Can operate in a temperature range of -20 to 90°C.

•Plugging cycles rated up to 50.

•Housing made from Pocan with a sealing material of Viton.

Specifications:
