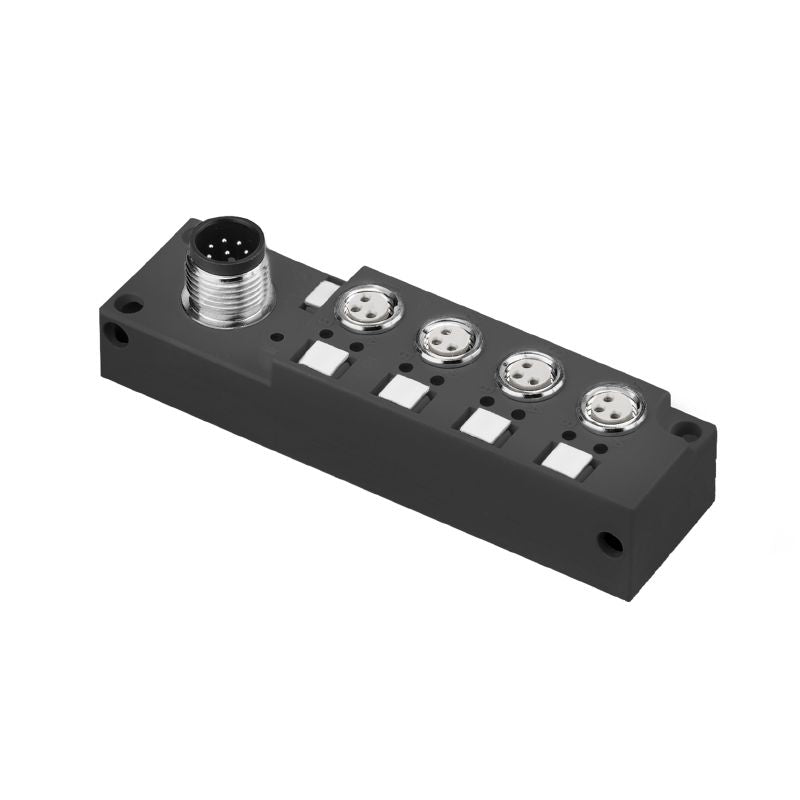

1828740000 - 8-Pole M12 Outlet Connector with LED Indicators

1828740000 - 8-Pole M12 Outlet Connector with LED Indicators

SKU: SKU: 1828740000 Download PDF

Variant:
  • 1828740000 - 8-Pole M12 Outlet Connector with LED Indicators
Regular price Now $58.64
Regular price BEFORE   $0.00 Sale price Now $58.64
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity options with this M12 outlet connector, which features 8 poles and an A-coded design Capable of handling voltage ranges from 10 V to 30 V, it also comes equipped with LED indicators to signal operating and initiator functions This connector is ideally suited for PNP wiring types, making it a reliable choice for your electrical needs.

Features and Benefits:

    •RoHS compliant without exemption.

    •Operating temperature range of -25 to 80°C.

    •Protection degree of IP68.

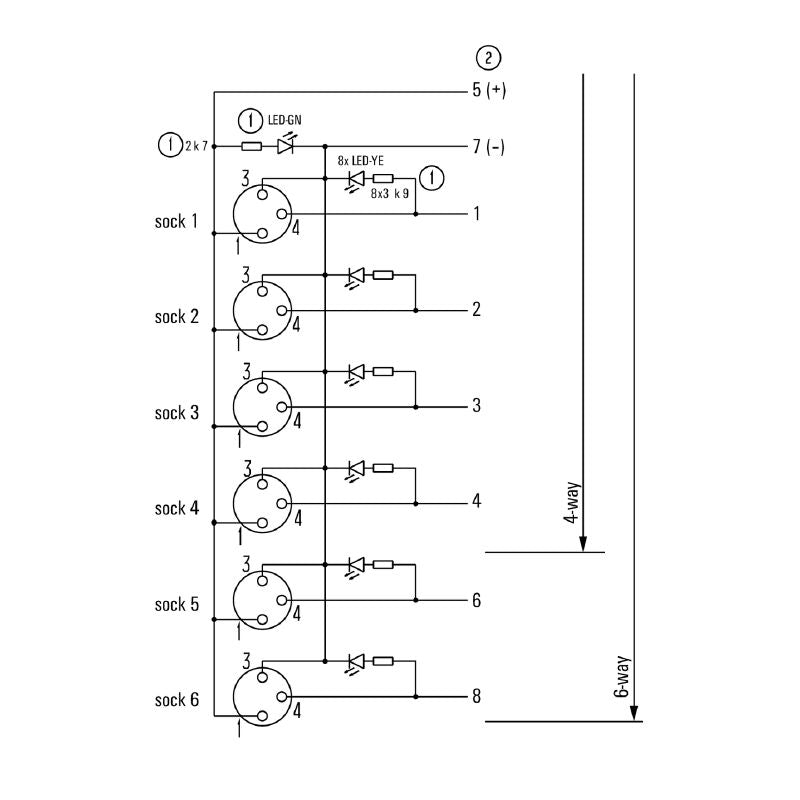

    •LED indicators in green and yellow for operation and I/O function respectively.

    •Suitable for a maximum current-carrying capacity of 2 A per slot.

    •Total current capacity of 6 A.

    •Manufactured with PBT housing material.

Specifications:

 Approvals ROHS Conform
 Certificate No. E92202
 Sheathing stripping length 100 mm
 Test voltage 1 kV
 Insulation resistance 10^9 Ω

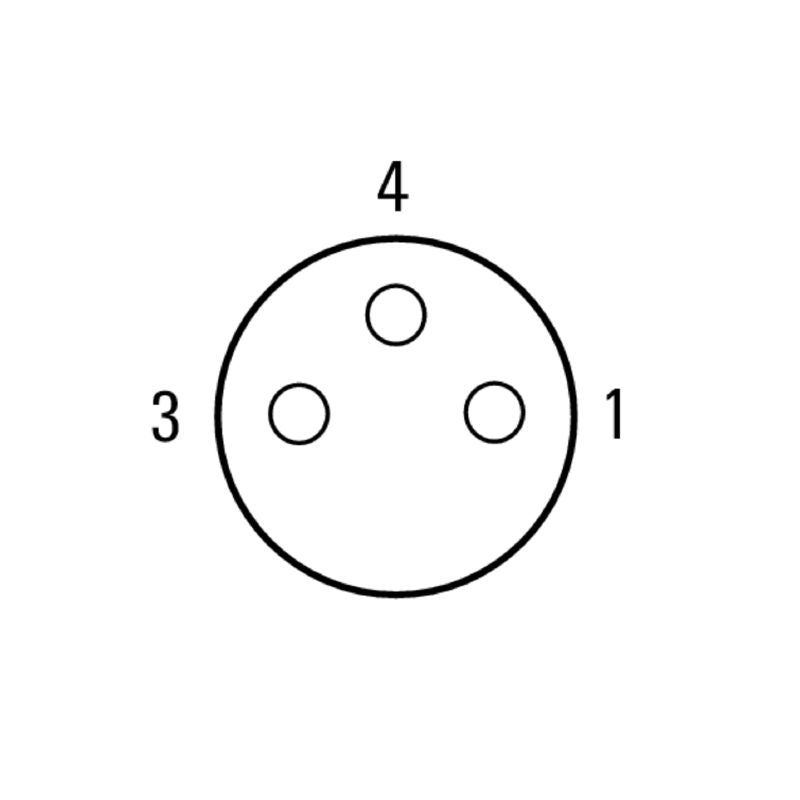

 Number of poles 3
 Number of contact sockets 4
 Connection thread M8
 Pollution severity 3
 Fire behaviour V-0
 Material O-Ring FKM
 Material of distributor Plastic
 Screw socket Nickel-plated CuZn
 Contact material CuZn
 Contact surface Gold-plated
 Contact carrier material PBT (UL 94 V0)
 Suitable for cable carriers No
 ETIM 6.0 EC002585
 ETIM 7.0 EC003558
 ETIM 8.0 EC003558
 ETIM 9.0 EC003558
 ETIM 10.0 EC003558
 ECLASS 9.0 27-44-01-08
 ECLASS 9.1 27-44-01-08
 ECLASS 10.0 27-44-01-11
 ECLASS 11.0 27-44-01-11
 ECLASS 12.0 27-44-01-11
 ECLASS 13.0 27-44-01-11
 ECLASS 14.0 27-44-01-11
 ECLASS 15.0 27-44-01-11
