2902950000 - Secure Ex Hood Connection Device, 60mm Depth, PUSH IN Technology

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

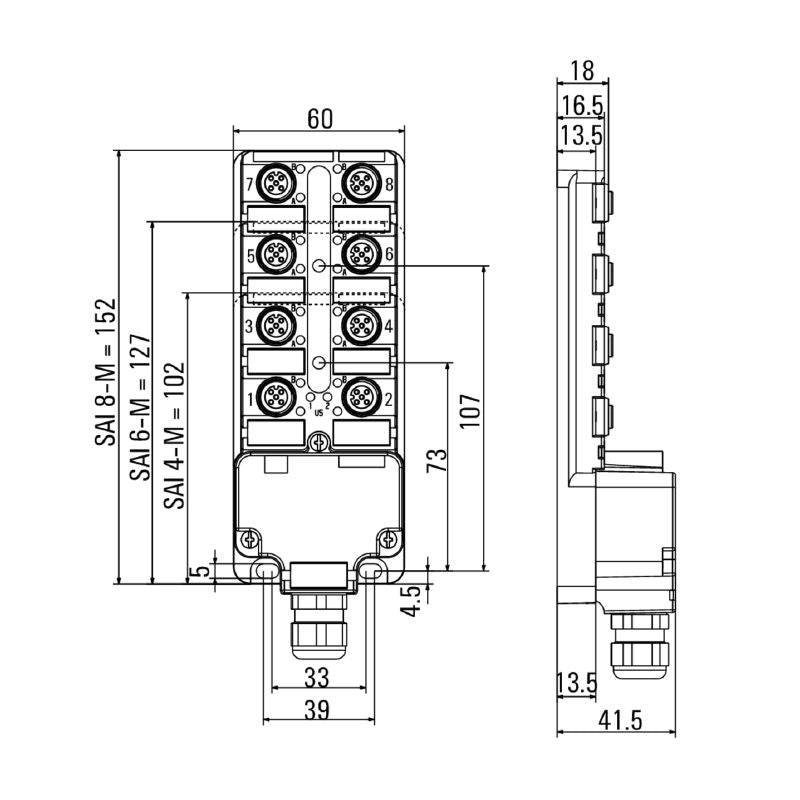

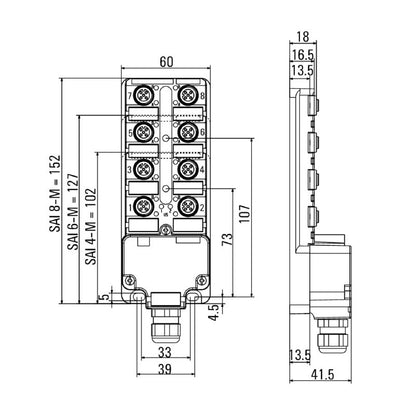

Introducing the device associated with order number 2902950000, crafted specifically for applications that demand reliable connections This model features an Ex hood design and operates effectively within a voltage range of up to 30 V, though it does not incorporate any LED lights It utilizes advanced PUSH IN technology for wire connections, accommodating conductor sizes from 014 mm² to 15 mm² In terms of dimensions, this component measures 60 mm in depth, 41.

5 mm in height, and 102 mm in length, with a total net weight of 19448 g It is engineered to function in a wide temperature spectrum, ranging from -40 to 60°C Additionally, this product is RoHS compliant and free from any substances of very high concern (SVHC) above the designated limits.

Features and Benefits:

•RoHS compliant.

•Multiple included accessories: 2 x Protection cap M12, 1 x Cable gland M20x1.5, 1 x MultiCard ESG 9/20 Device marker.

•IP66 and IP67 rated for protection against dust and water.

•Plug connections are designed for up to 50 cycles.

Specifications:
