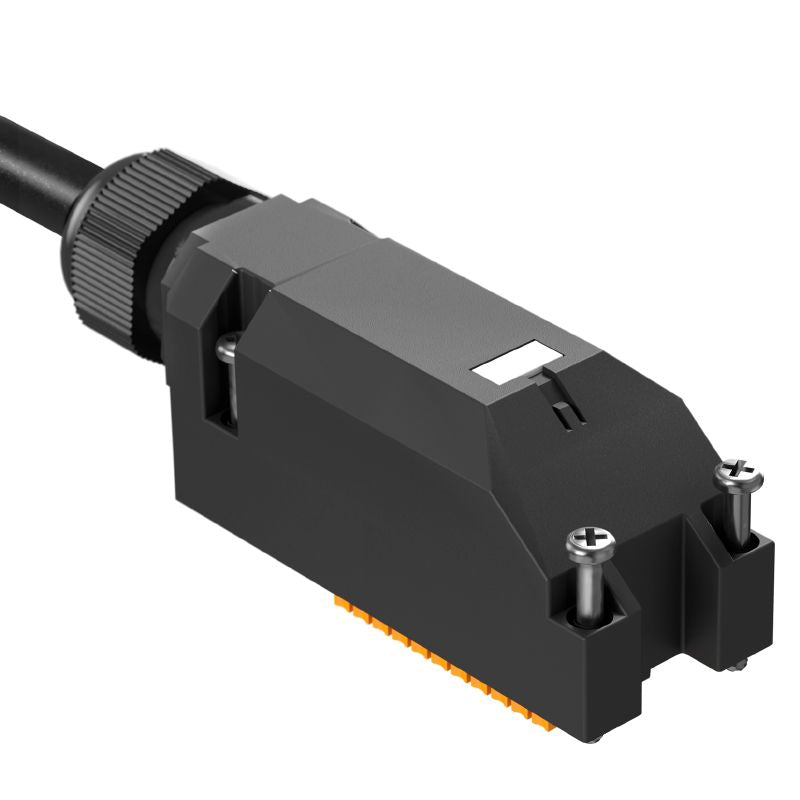

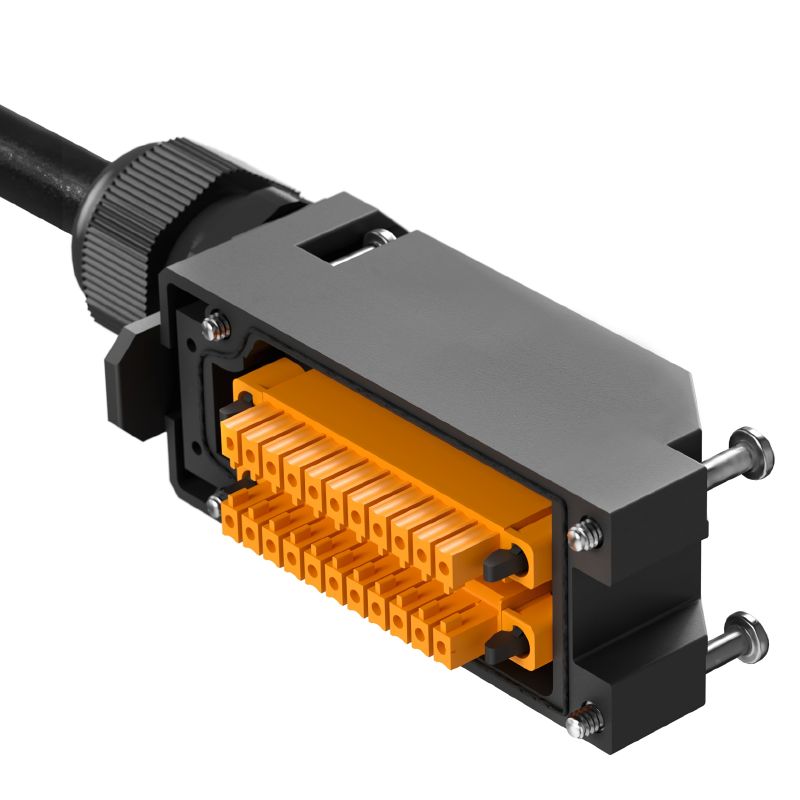

2819120000 - IP67 M8 Passive Distributor with 10 Sockets, -25 to 80°C

2819120000 - IP67 M8 Passive Distributor with 10 Sockets, -25 to 80°C

SKU: SKU: 2819120000 Download PDF

Variant:
  • 2819120000 - IP67 M8 Passive Distributor with 10 Sockets, -25 to 80°C
Regular price Now $101.74
Regular price BEFORE   $0.00 Sale price Now $101.74
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile sensor-actuator passive distributor equipped with M8 connectors, perfect for a range of applications This device includes 10 contact sockets, allowing for effective wiring from a minimum clamping range of 008 mm² up to a maximum of 15 mm² It operates efficiently within a temperature spectrum of -25 to 80 degrees Celsius and meets all RoHS compliance standards Built to withstand tough environments, this distributor boasts an IP67 protection rating, ensuring durability and reliability in various conditions.

Features and Benefits:

    •RoHS compliant without exemptions.

    •IP67 protection degree.

    •10 contact sockets for versatile connectivity.

    •Supports high current capacity of up to 2 A per slot.

    •Durable construction materials including PBT and FKM.

Specifications:

 Rated voltage, min. 15 V
 Rated voltage, max. 30 V
 Max. current-carrying capacity per slot 2 A
 Current per signal 2 A
 Protection degree IP67
 Number of poles 3
 Number of contact sockets 10
 Connection thread M8
 Pollution severity 3
 Fire behaviour V-0
 Material O-Ring FKM
 Housing main material PBT
 Material of distributor Plastic
 Hood sealing material FKM
 Screw socket Nickel-plated CuZn
 Contact material CuZn
 Contact surface Gold-plated
 Contact carrier material PBT (UL 94 V0)
 Bending cycles 2 Mio
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 10 x cable diameter
 Sheath material PUR
 Sheathing colour black
 Shielded Yes
 Cable length 5 m
