Description:

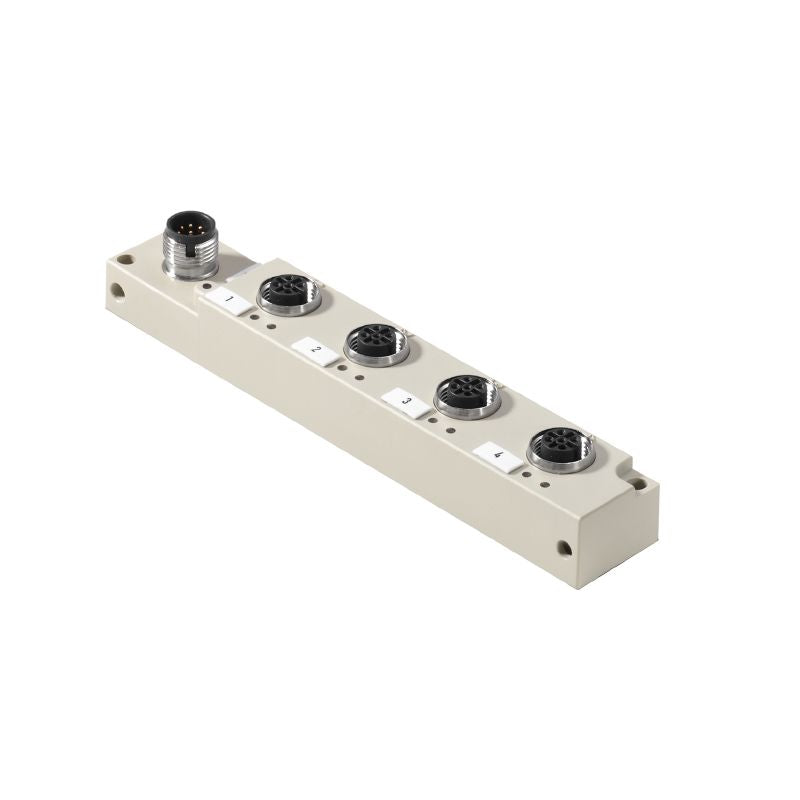

Introducing the SAI-4-S8 M12 connector, expertly engineered with 4 poles and a standard A coding for versatile connectivity This connector meets RoHS standards comprehensively, ensuring environmentally friendly compliance It operates efficiently in a temperature range of -20 to 80°C, making it suitable for various applications With an M12 outlet, it supports a maximum voltage of 30 V and handles a current of up to 6 A.

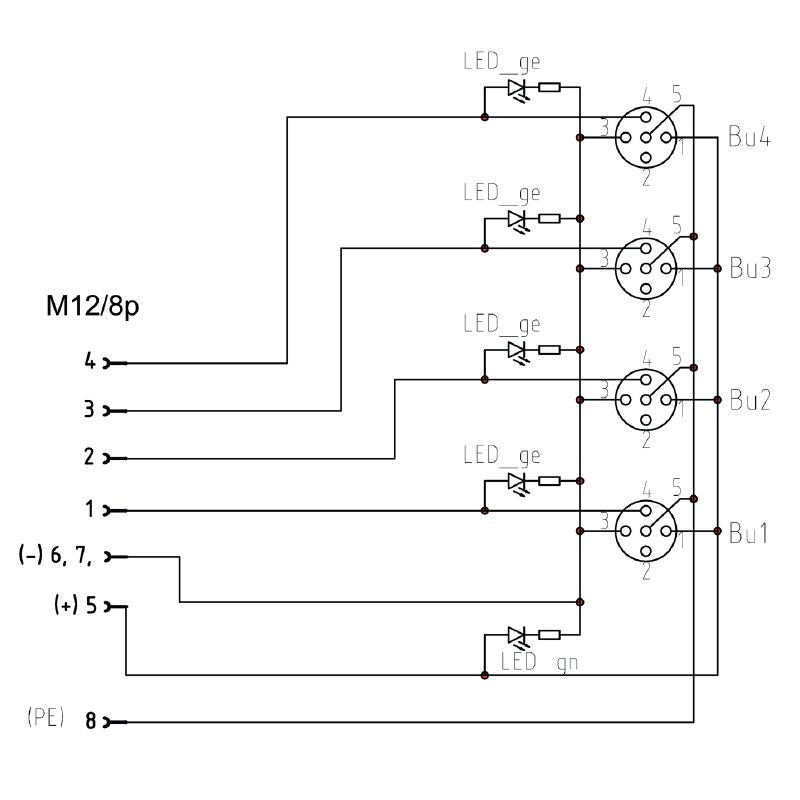

Additionally, it features an LED indicator, with green signaling active operation and yellow denoting the I/O function.

Features and Benefits:

•Compliant with RoHS standards.

•Includes green LED for operational indication and yellow LED for I/O function.

•Protection degree of IP67.

•Plug-in station coding.

•Housing material made of PBT.

•Nickel-plated CuZn screw socket.

•Gold-plated contact surface.

Specifications:

Rated voltage, min.	10 V
Rated voltage, max.	30 V
Max. current-carrying capacity per slot	2 A
Number of poles	4
Number of contact sockets	4
Connection thread	M12
Pollution severity	3
Fire behaviour	V-0
Material data	{'Housing main material': 'PBT', 'Contact material': 'CuZn', 'Contact carrier material': 'PBT (UL 94 V0)'}
