1892100005 - M12 NPN ECO 5-Pole Connection with LED Indicators

1892100005 - M12 NPN ECO 5-Pole Connection with LED Indicators

SKU: SKU: 1892100005 Download PDF

Variant:
  • 1892100005 - M12 NPN ECO 5-Pole Connection with LED Indicators
Regular price Now $68.00
Regular price BEFORE   $0.00 Sale price Now $68.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

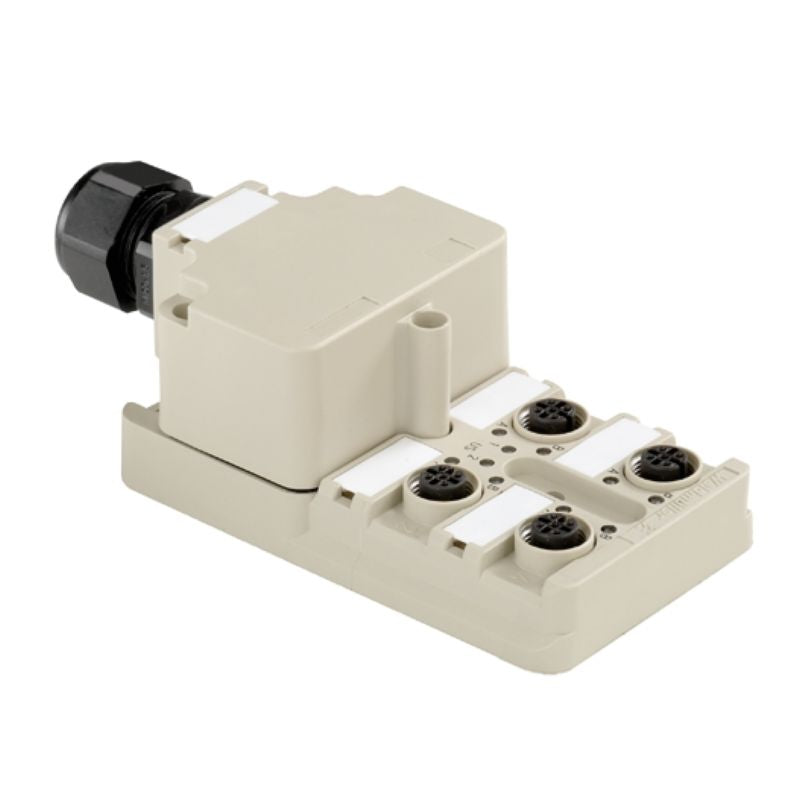

Introducing the SAI-4-M 5P M12 NPN ECO, a robust component tailored for reliability and efficiency It operates effectively within a voltage range of 10 V to 30 V and features a convenient hood design This unit includes clear LED indicators; a green light signals operational status, while a yellow light indicates I/O functionality With a durable M12 connection thread, it can support a maximum current of 4 A.

The setup includes five poles and four contact sockets, ensuring consistent electrical performance Constructed from environmentally friendly materials, the housing is crafted from Pocan, complemented by a plastic distributor for optimal durability.

Features and Benefits:

    •Compliant with RoHS without exemptions.

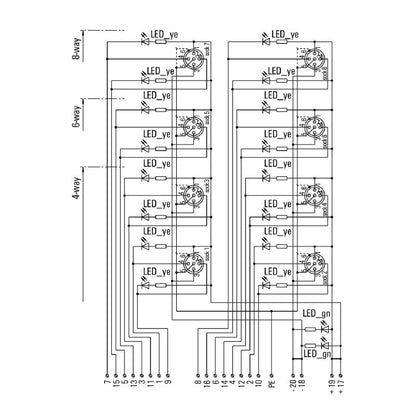

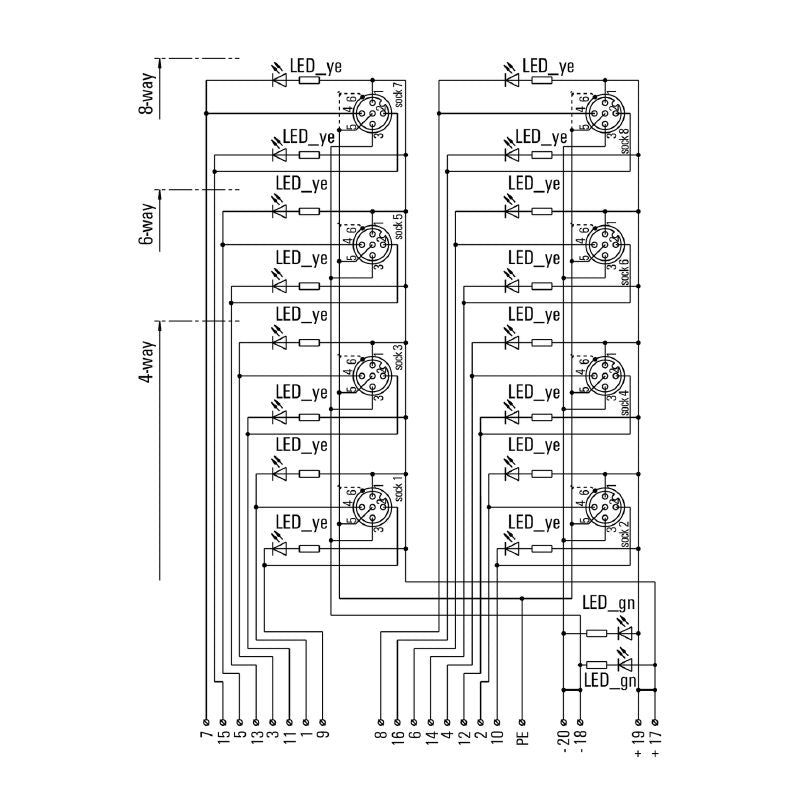

    •LED indicators for operational status and I/O functions.

    •Test voltage of 1 kV.

    •Insulation resistance of 10^9 Ω.

    •Plugging cycles rated at ≤ 50.

Specifications:

 Clamping range, min. 0.08 mm²
 Clamping range, max. 1.5 mm²
 Environmental Product Compliance RoHS Compliant
 Number of poles 5
 Number of contact sockets 4
 Connection thread M12
 Pollution severity 3
 Fire behaviour V-0
 Suitable for cable carriers No
 Housing main material Pocan
 Hood sealing material Viton
 Contact material CuZn
 Contact surface Gold-plated
 Contact carrier material PBT (UL 94 V0)
 ETIM classifications {'ETIM 6.0': 'EC002585', 'ETIM 7.0': 'EC003558', 'ETIM 8.0': 'EC003558', 'ETIM 9.0': 'EC003558', 'ETIM 10.0': 'EC003558'}
 ECLASS classifications {'ECLASS 9.0': '27-44-01-08', 'ECLASS 9.1': '27-44-01-08', 'ECLASS 10.0': '27-44-01-11', 'ECLASS 11.0': '27-44-01-11', 'ECLASS 12.0': '27-44-01-11', 'ECLASS 13.0': '27-44-01-11', 'ECLASS 14.0': '27-44-01-11', 'ECLASS 15.0': '27-44-01-11'}
