1760040000 - IP67 10A Connector with LED Indicators, 102mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

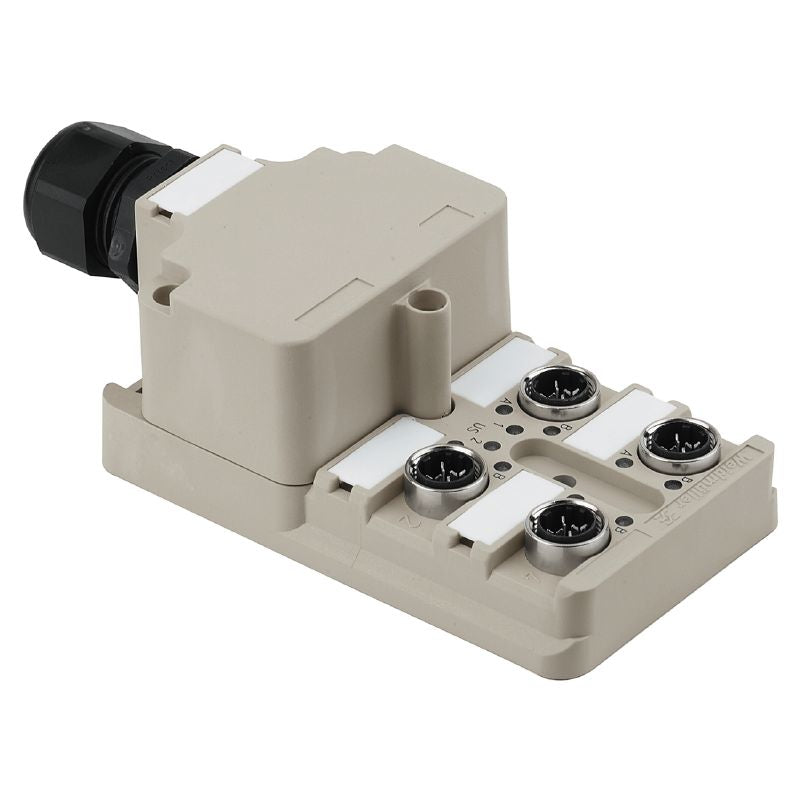

Introducing the SAI-4-M 3P IDC connector, engineered for a variety of applications with a sturdy design that meets RoHS requirements This versatile connector operates effectively within a voltage range of 10V to 30V and supports a maximum current of 10A, with each channel able to handle up to 4A It features an A-coded plug-in station and boasts an IP67 rating, ensuring superior protection against dust and water ingress.

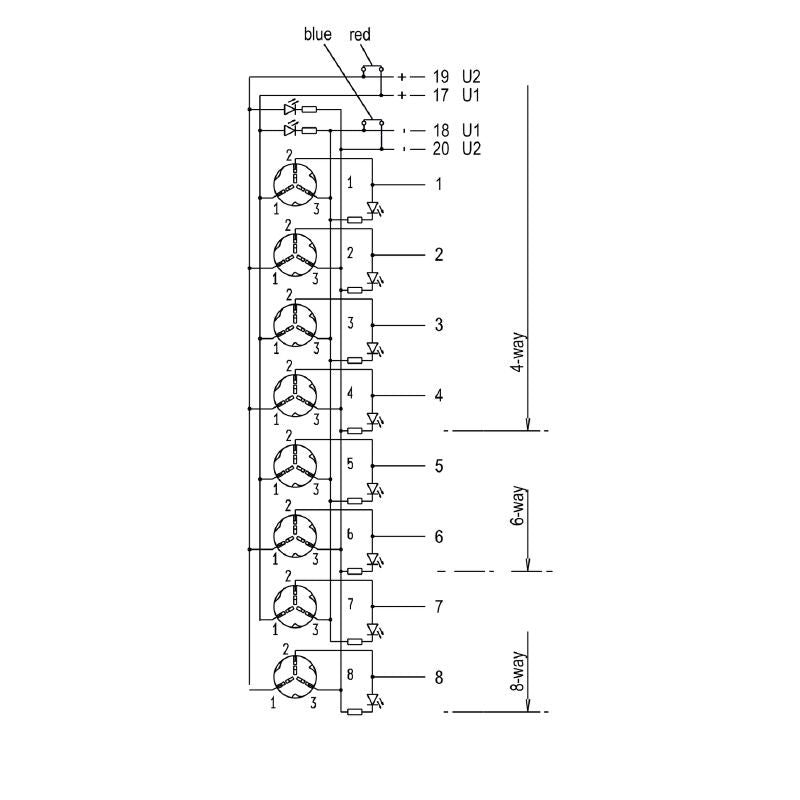

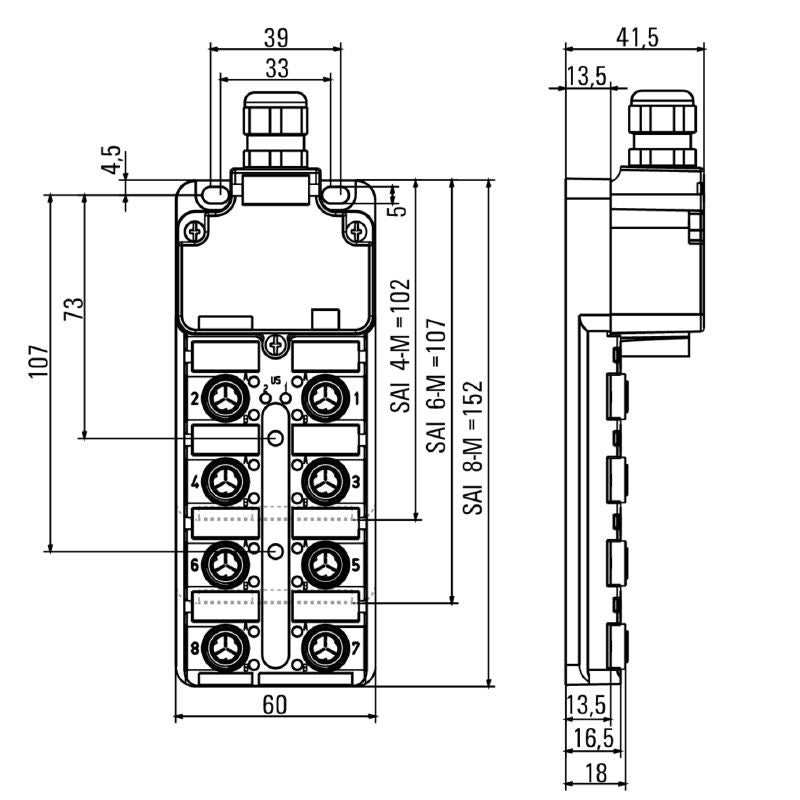

Measuring 102mm deep, 415mm high, and 60mm wide, it is compatible with standard storage solutions Additionally, the connector includes LED indicators that provide clear status updates, glowing green for operational status and yellow for I/O functions.

Features and Benefits:

•LED initiator included.

•Compliant with RoHS with exemption.

•Operating temperature range: -20 - 90°C.

•IP67 rated for environmental protection.

•Made of Pocan housing material.

•Gold-plated contact surface for enhanced conductivity.

•Compatible with AWG sizes between 14 and 28.

Specifications:
