1740193000 - IP68 M12 Connector with LED, 14-18mm, 30V, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

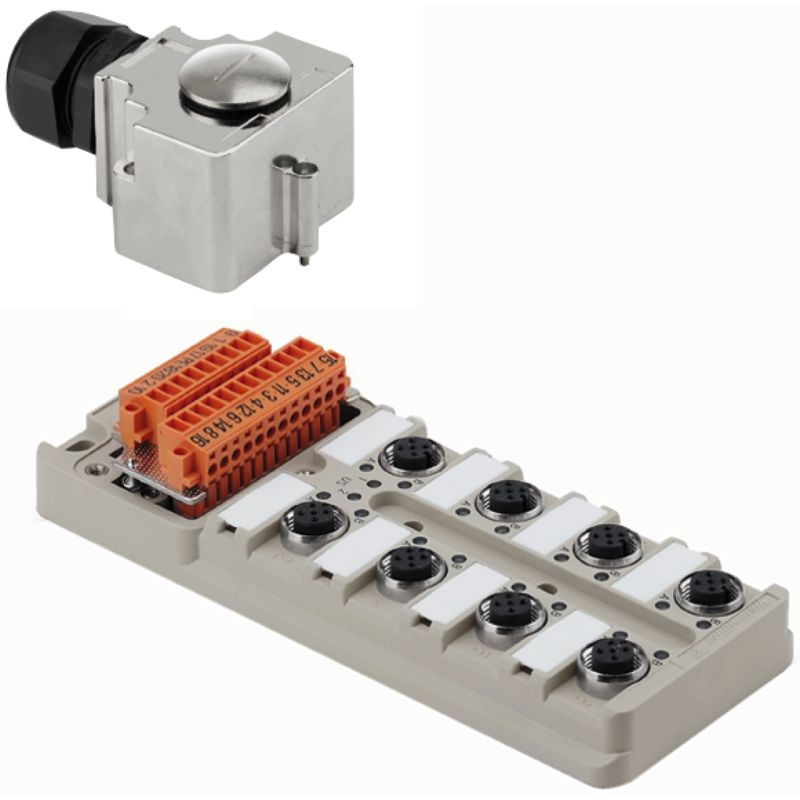

Introducing the SAI-8-MHD 5P M12 OL connector, a reliable hood-style connector equipped with an M25 outlet It runs on a voltage range of 10 to 30 V and features A-coded wiring for compatibility With an integrated LED indicator, this connector meets RoHS compliance without any exemptions The cable boasts a minimum outer diameter of 14 mm and can expand to a maximum of 18 mm, allowing for clamping of wire sizes from 0.

08 mm² to 15 mm² It supports a maximum current of 4 A per individual slot, with a total capacity of 10 A Constructed with a Pocan base module and a hood made from zinc diecast, the contacts utilize gold-plated CuZn material This connector is also rated IP68 for exceptional protection against dust and water ingress, ensuring reliable operation in various environments The assembly additionally includes a green LED for clear operational status indication.

Features and Benefits:

•IP68 protection degree.

•A-coded plug-in station coding.

•Gold-plated contact surface.

•LED operational indicating in green.

Specifications:
