2819040000 - M8 Passive Distributor with LED & 3 Poles for Sensors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

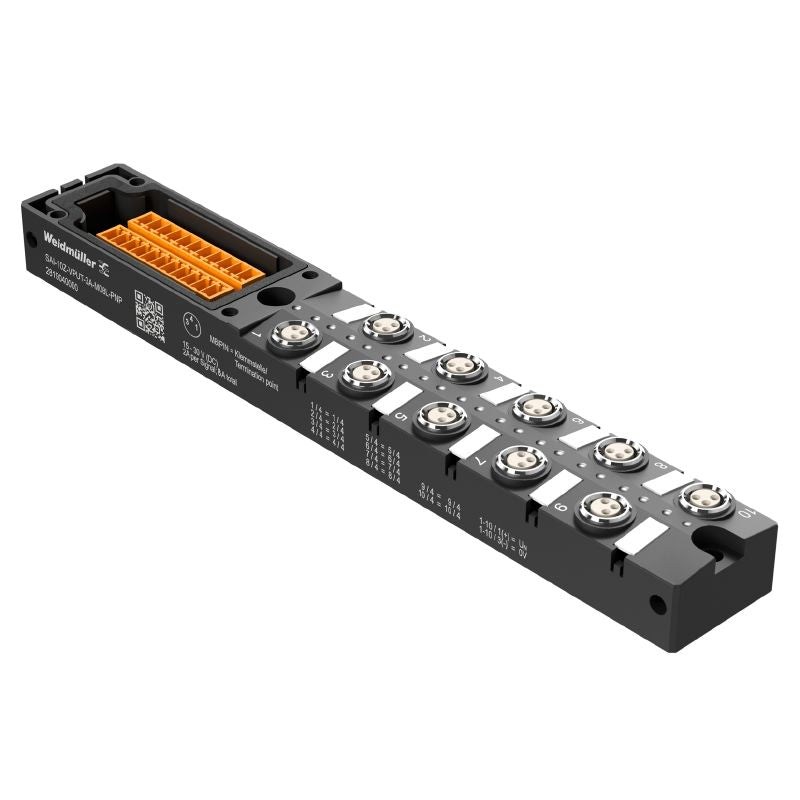

Introducing the SAI-10Z-VPUT-3A-M08L-PNP, a reliable passive distributor tailored for sensor and actuator solutions This model features a robust M8 connector and is equipped with an LED indicator It boasts three poles, providing a total of 10 contact sockets for versatile connections Furthermore, this unit adheres to RoHS standards and carries UL certification, ensuring quality and safety Perfect for enhancing your sensor-actuator setup, this distributor combines functionality with compliance.

Features and Benefits:

•LED indication for operation in green and for I/O function in yellow.

•Protection degree of IP67.

•Rated voltage range of 15 V to 30 V.

•Max current-carrying capacity of 4 A per slot.

•Robust housing made of PBT material.

•Supports clamping range from 0.08 mm² to 1.5 mm².

Specifications:
