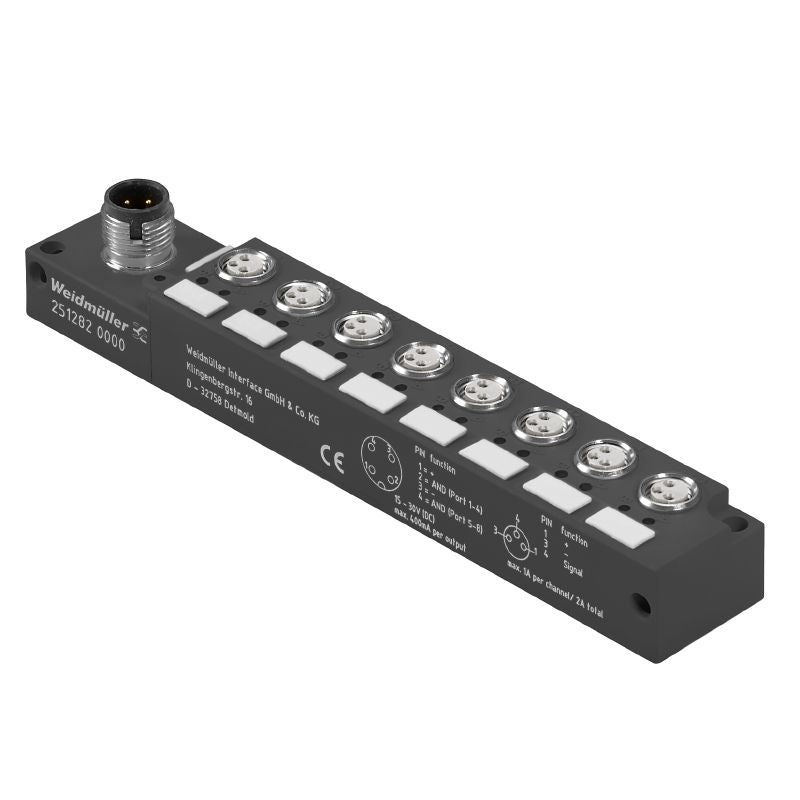

2512820000 - M12 LED Compatible Unit with -20 to 90°C Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-08L-VP12-3A-M08L-AND, a versatile product that boasts M12 outlet compatibility for easy integration Operating on a voltage range of 15 to 30 V, this device features LED functionality for enhanced visibility The AND wiring type ensures reliable communication, while the item adheres to ROHS standards and contains no SVHC above 01 wt% With a temperature range of -20 to 90°C, it is built to perform in various environments.

Weighing in at just 1072 grams, it combines lightweight design with robust capabilities.

Features and Benefits:

•Rated voltage maximum of 30 V and minimum of 15 V.

•Nominal current capacity of 500 mA, total current capacity of 2 A.

•Protection class IP67, indicating dust and water resistance.

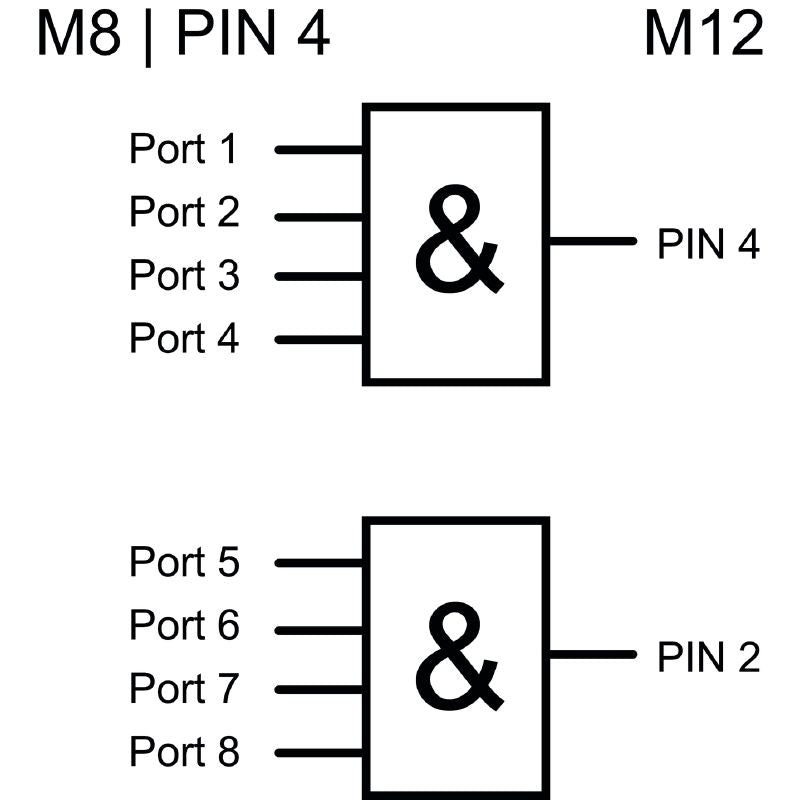

•Logic function is AND, providing straightforward logic operations.

•Multi-colour LED indicators for operation status and I/O function.

Specifications:
