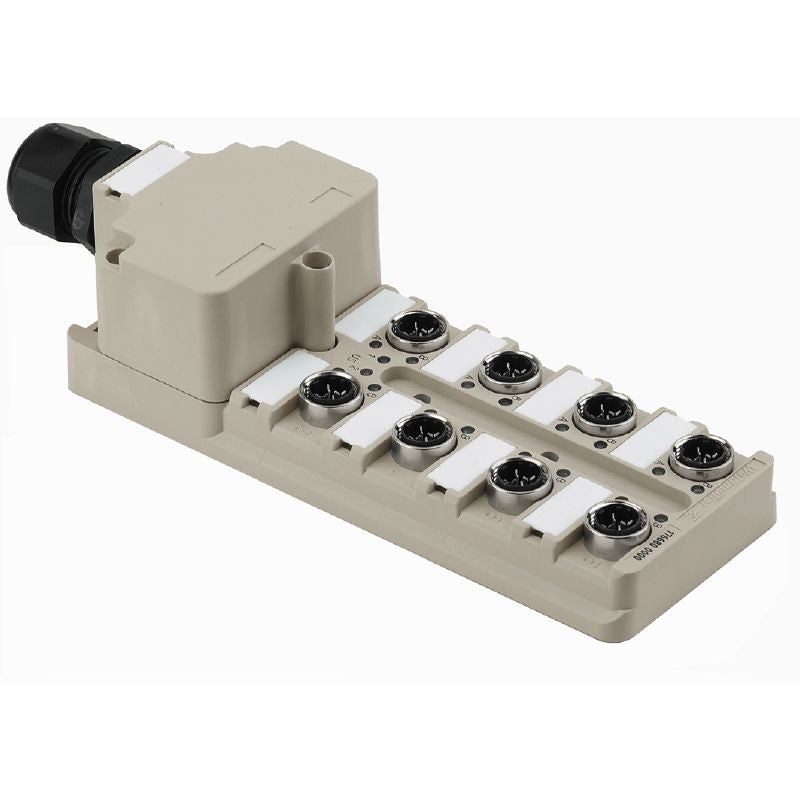

1766800000 - IP67 Rated 10A SAI-8-M 4P IDC with LED Indicators

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-8-M 4P IDC, a robust connector designed for reliability in demanding environments With an operating voltage range of 10 to 30 V and a maximum current capacity of 10 A, this device is engineered for versatility Its sturdy housing, crafted from Pocan, is rated IP67, ensuring protection against dust and water, making it ideal for tough conditions Visual operation status is easily monitored with dual LED indicators: a green light signals active operation while a yellow light denotes input/output functionality.

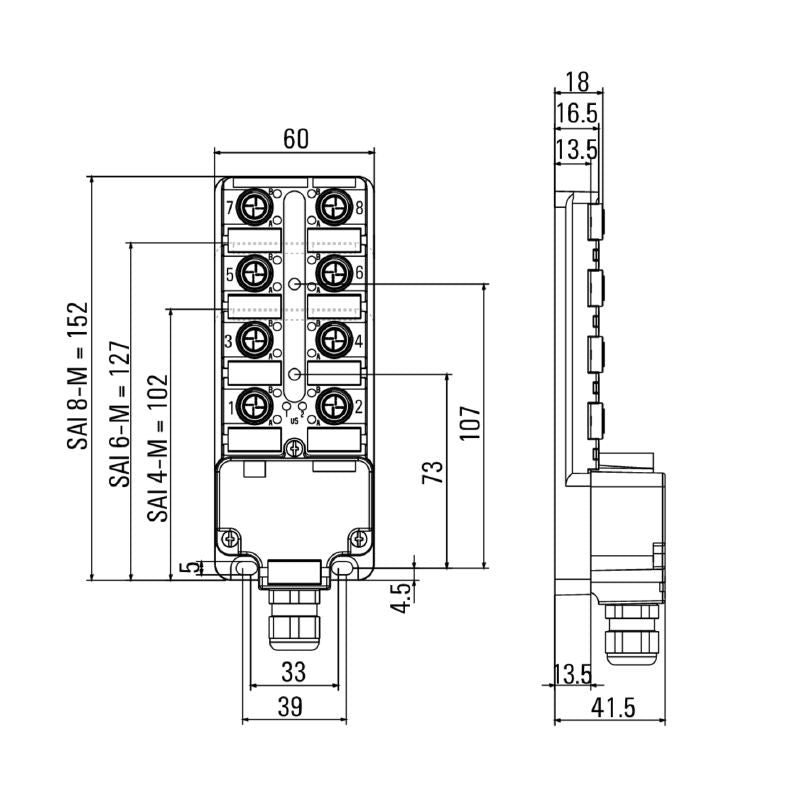

The connector measures 152 mm in depth, 415 mm in height, and 60 mm in width, weighing 24112 grams It accommodates a wide conductor range from 008 mm² to 15 mm², allowing for flexible connectivity options Additionally, this product holds both ROHS and UL certification, guaranteeing compliance with safety standards.

Features and Benefits:

•LED indicators for operation and I/O functions.

•IP67 protection rating for environmental resilience.

•Compatible with a wide array of wire sizes from AWG 28 to AWG 14.

Specifications:
