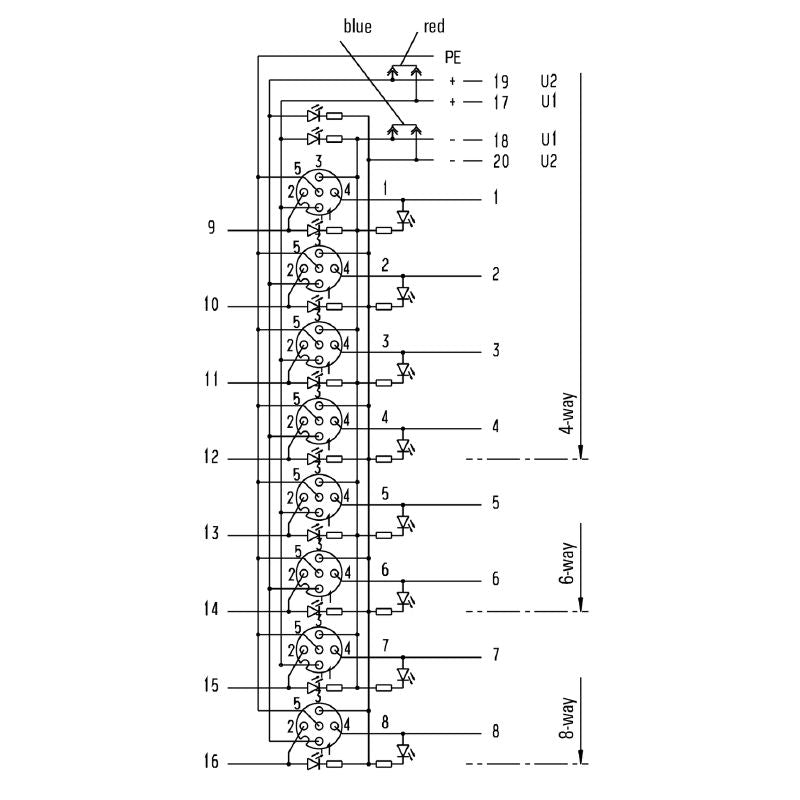

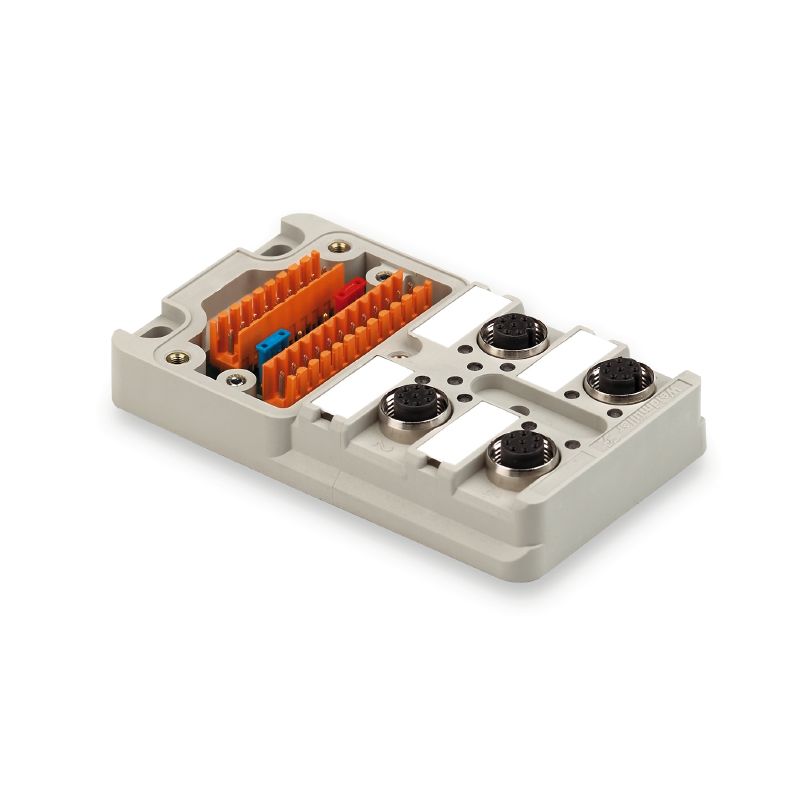

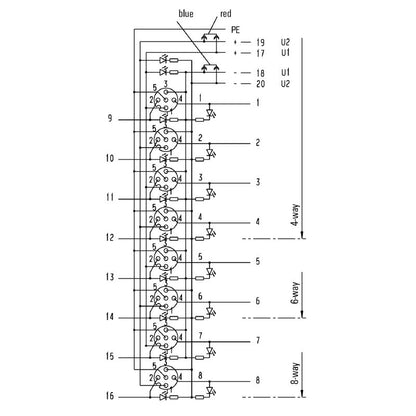

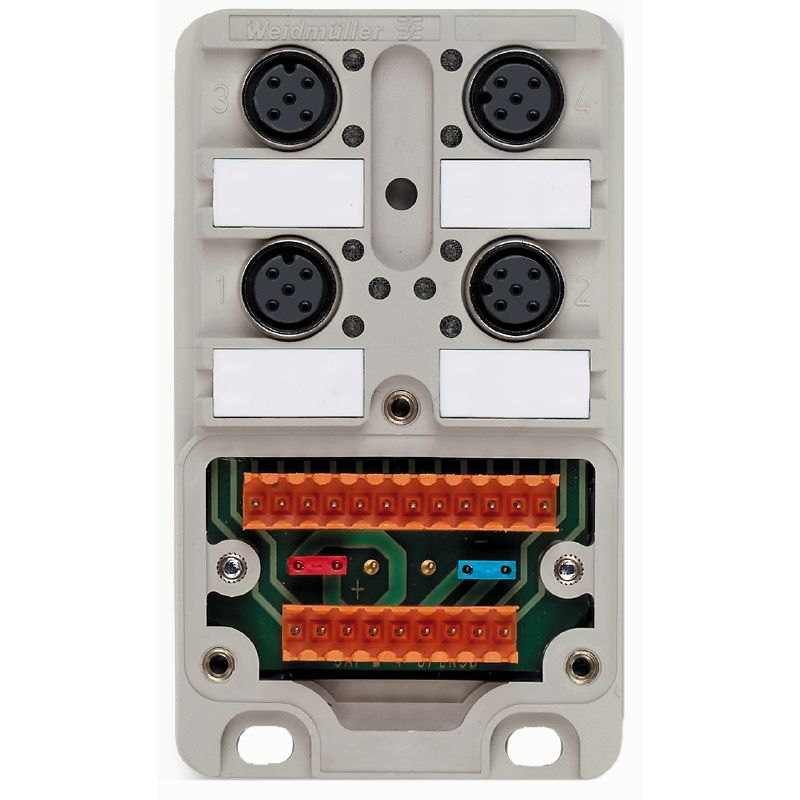

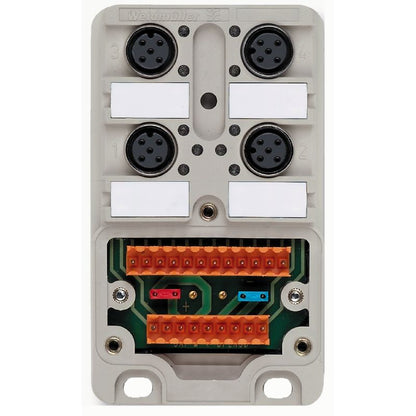

1701231000 - M12 Hood Distributor with LED Indicator, -20 to 90°C (Pack of 2)

1701231000 - M12 Hood Distributor with LED Indicator, -20 to 90°C (Pack of 2)

SKU: SKU: 1701231000   Download PDF

Select a Variant:
  • 1701231000 - M12 Hood Distributor with LED Indicator, -20 to 90°C (Pack of 2)
Qty:
Regular price Now $141.13   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $141.13 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your electrical projects with this hood distributor lower component, specifically designed for M12 applications It can function efficiently within a voltage range of 10 V to 30 V and features a convenient LED indicator for easy monitoring This unit operates flawlessly in temperatures from -20 to 90 degrees Celsius Crafted to meet RoHS standards, it contains no hazardous substances above 01 wt%.

It accommodates conductor sizes with a maximum clamping range of 008 mm² to 15 mm² and supports outer conductor diameters between 6 mm and 12 mm, making it a versatile addition to your setup.

Features and Benefits:

    •RoHS compliant without exemption.

    •IP68 protection degree.

    •LED indicator for operation and I/O function.

    •Pocan housing material with grey color.

    •Nickel-plated CuZn screw socket.

Specifications:

 Depth 102 mm
 Depth (inches) 4.016 inch
 Net weight 119 g
 Operating temperature -20 - 90°C
 Conductor O.D., min. 6 mm
 Conductor O.D., max. 12 mm
 Sheathing stripping length 100 mm
 Clamping range, min. 0.08 mm²
 Clamping range, max. 1.5 mm²
 Rated voltage, min. 10 V
 Rated voltage, max. 30 V
 Test voltage 1 kV
 Max. current-carrying capacity per slot 4 A
 Total current 10 A
 Current per signal 2 A
 Plug-in station coding A-coded
 Number of poles 5
 Number of contact sockets 4
 Connection thread M12
 Pollution severity 3
 Fire behaviour V-0
 Plugging cycles ≤ 50
 LED Yes
 LED initiator Yes
 LED colour for indicating operation green
 LED colour for I/O function yellow
 Housing main material Pocan
 Material of distributor Plastic
 Hood sealing material Viton
 Contact material CuZn
 Contact surface Gold-plated
 Contact carrier material PBT (UL 94 V0)
