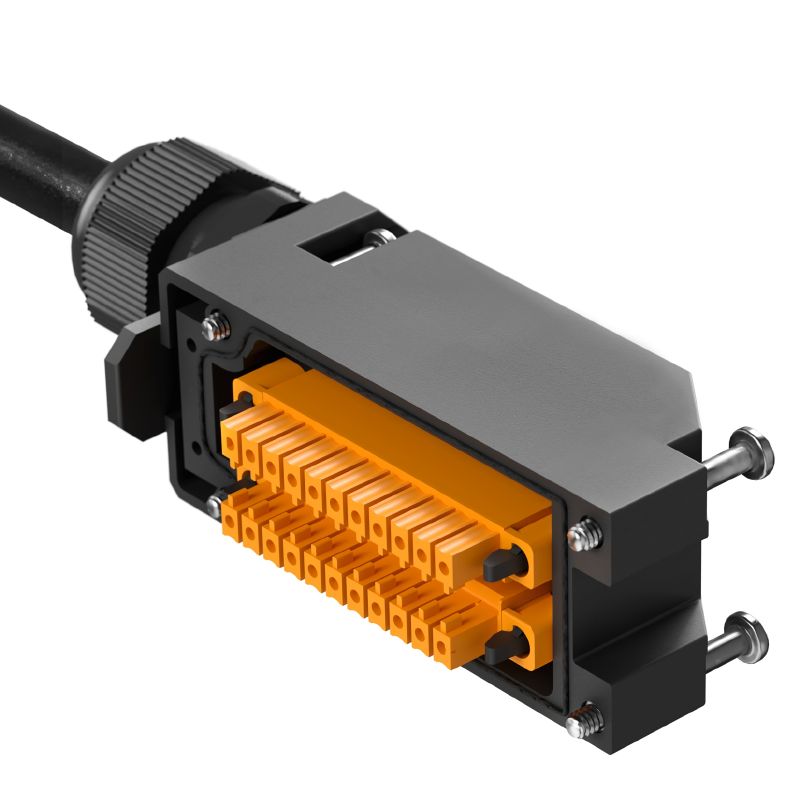

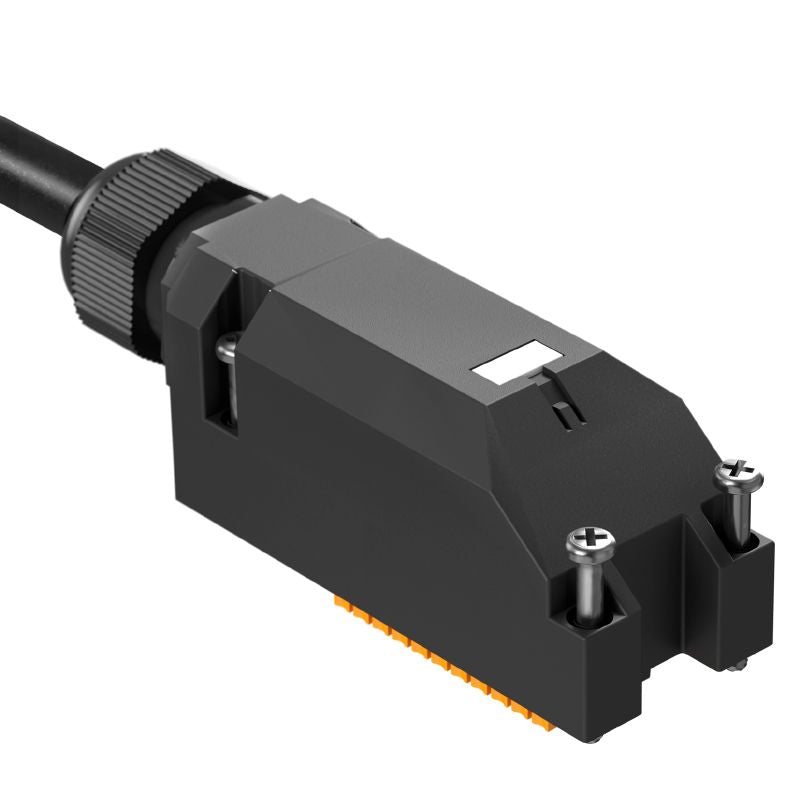

2819220000 - 10m M8 Passive Distributor with 4 Poles & 6 Contact Sockets

2819220000 - 10m M8 Passive Distributor with 4 Poles & 6 Contact Sockets

SKU: SKU: 2819220000 Download PDF

Variant:
  • 2819220000 - 10m M8 Passive Distributor with 4 Poles & 6 Contact Sockets
Regular price Now $163.97
Regular price BEFORE   $0.00 Sale price Now $163.97
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this passive distributor, equipped with M8 connectors and a generous length of 10 meters With its 4 poles and 6 contact sockets, it offers dependable connectivity for a wide range of applications This product meets RoHS compliance, guaranteeing it's free from specific hazardous substances Weighing in at 900 grams, it functions optimally in temperatures ranging from -25 to 80 degrees Celsius, designed to meet the challenges of various environments.

Features and Benefits:

    •Conforms to RoHS without exemptions.

    •IP67 protection degree for dust and water resistance.

    •Nickel-plated CuZn screw socket.

    •Gold-plated contact surface for better conductivity.

    •Sheath material made of PUR.

Specifications:

 Order No. 2819220000
 GTIN (EAN) 4064675330448
 Clamping range, min. 0.08 mm²
 Clamping range, max. 1.5 mm²
 Rated voltage, min. 15 V
 Rated voltage, max. 30 V
 Max. current-carrying capacity per slot 2 A
 Current per signal 2 A
 Electrical isolation available No
 Number of poles 4
 Number of contact sockets 6
 Connection thread M8
 Pollution severity 3
 Fire behaviour V-0
 LED No
 LED initiator No
 Material O-Ring FKM
 Housing main material PBT
 Material of distributor Plastic
 Hood sealing material FKM
 Bending cycles 2 Mio
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 10 x cable diameter
 Sheath material PUR
 Sheathing colour black
 Shielded Yes
 Cable length 10 m
