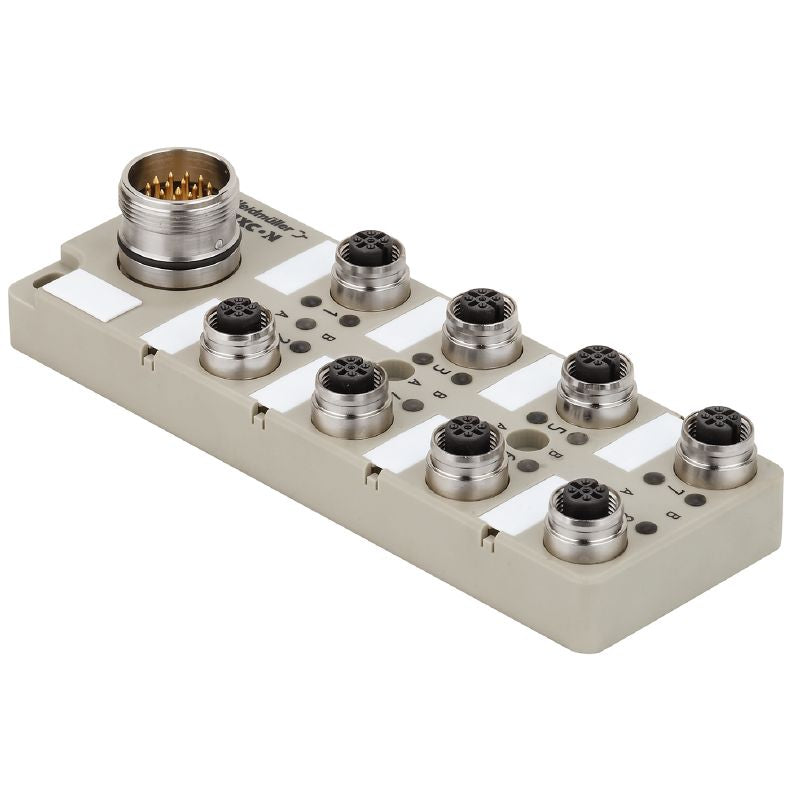

1861580000 - IP67 M23 Connector, 19-Pole, 10-50V, -25 to 80°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-8-S 5P CNOMO, a versatile connection solution equipped with a 19-pole M23 outlet for various applications It operates effortlessly within a voltage range of 10 to 50 V and withstands a temperature spectrum from -25 to 80°C With a total current capacity of 8 A and the ability to handle up to 4 A per slot, it meets diverse electrical needs The design includes a sheathing strip length of 100 mm and features A-coded plug-in station coding, all while boasting an impressive IP67 protection rating for durability in challenging environments.

Features and Benefits:

•RoHS compliant with an exemption.

•Supplying a connection thread that is M12.

•Constructed from PA 6 GF material.

•Housing color is grey, RAL 7032.

•Contact surface is gold-plated.

Specifications:
