1701250000 - A-coded Hood Distributor, 152mm Depth, LED, 4A Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

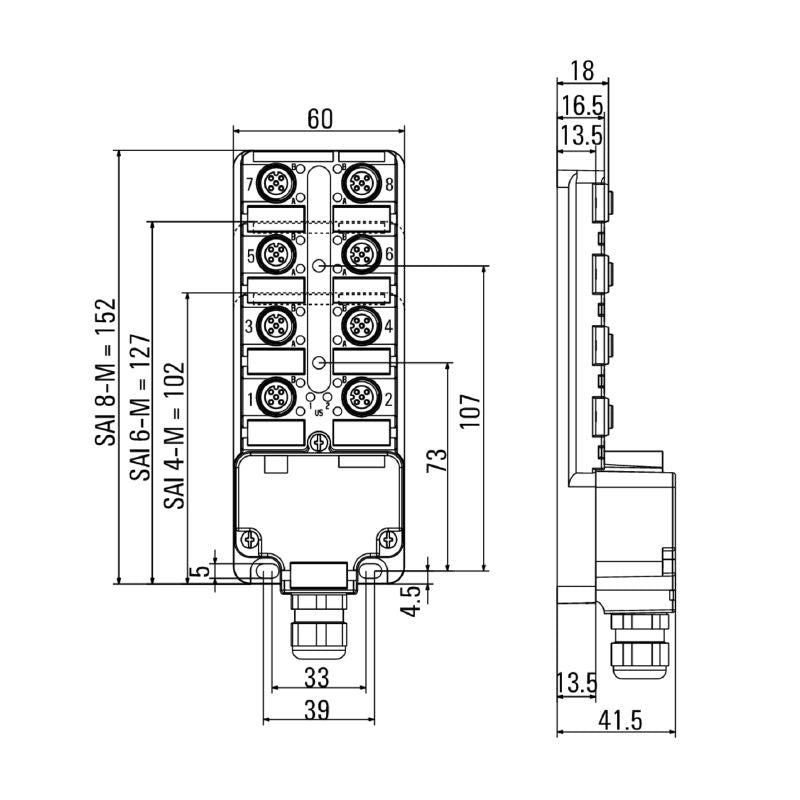

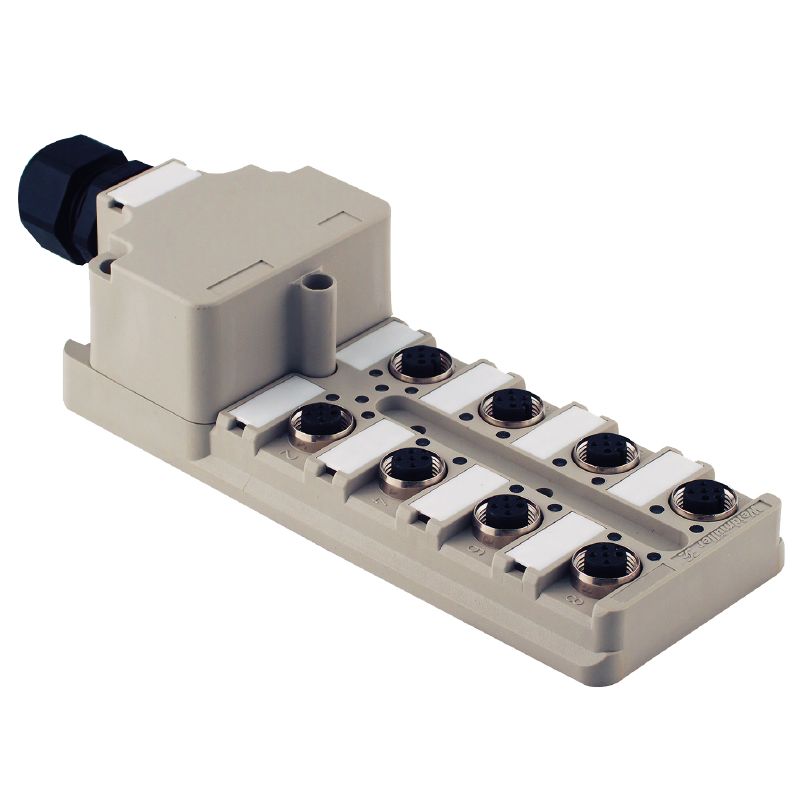

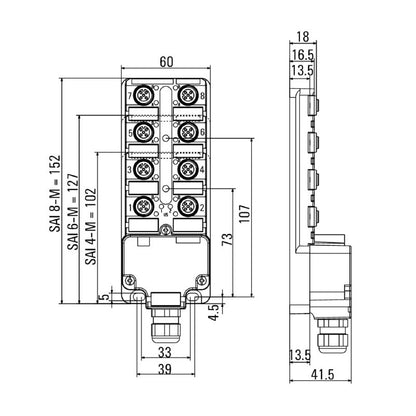

Introducing the SAI-8-M 5P M12 hood distributor, engineered for reliable functionality at 30 V with A-coded compatibility This unit boasts LED capabilities, complete with an LED initiator for enhanced visibility Measuring 152 mm in depth, 415 mm in height, and 60 mm in width, it is compact yet efficient, weighing only 242 g The distributor is fully compliant with RoHS regulations and contains no SVHC above 0.

1 wt%, ensuring environmentally responsible use It operates effectively within a temperature range of -20 to 90 °C With a clamping range from 008 mm² to 15 mm², it accommodates wire connections with a cross-section from AWG 28 to AWG 14 Each slot is rated for a maximum current of 4 A, contributing to a total current capacity of 10 A It also features electrical isolation and an impressive insulation resistance of 10^9 Ω, making it a reliable choice for various applications.

Features and Benefits:

•Meets RoHS compliance without exemptions.

•Operates in a temperature range from -20 to 90 °C.

•Rated for a maximum current of 10 A.

•Includes LED indicators for operation and I/O functions.

•Suitable for hood distributor applications.

Specifications:
