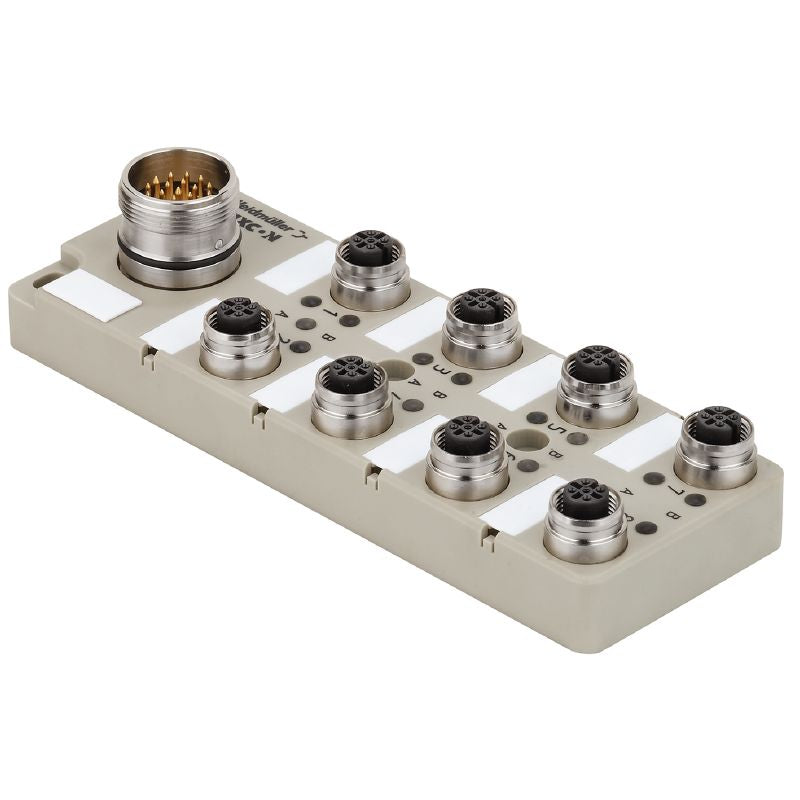

1847920000 - M23 12-Pole Connector, 34.3mm, PNP, RoHS & UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

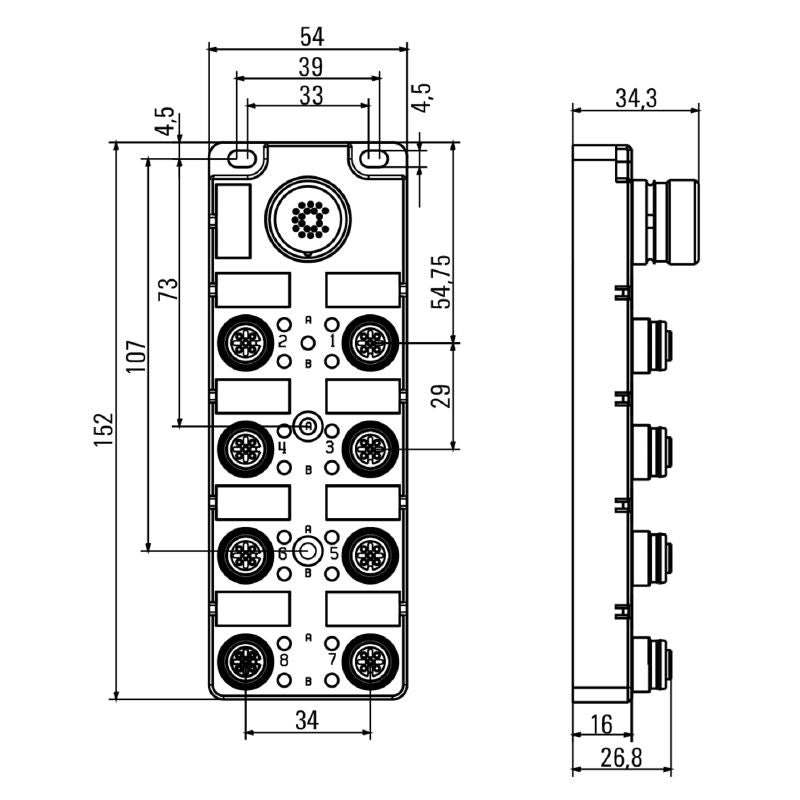

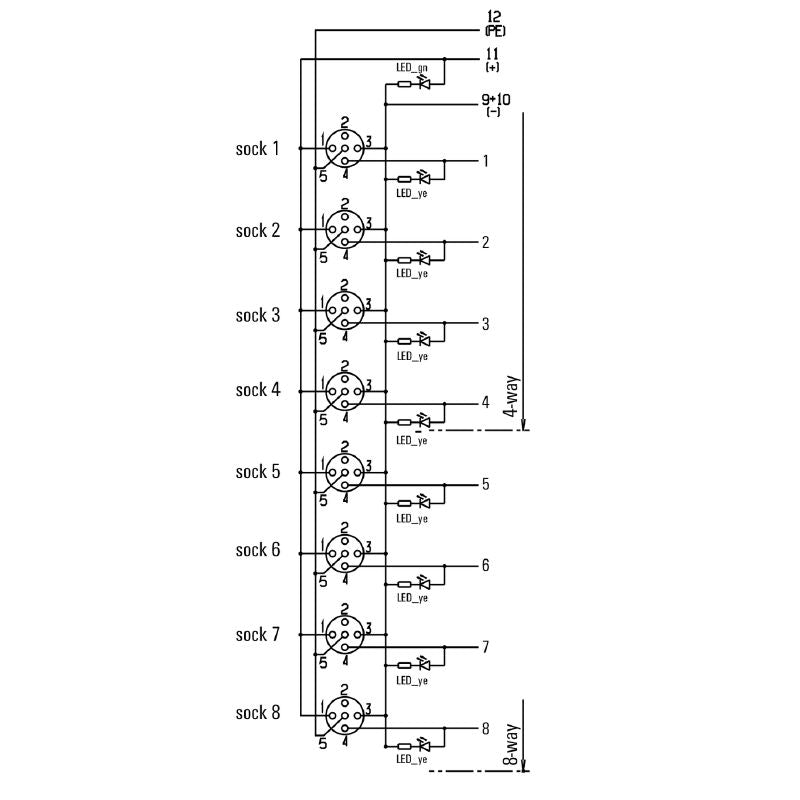

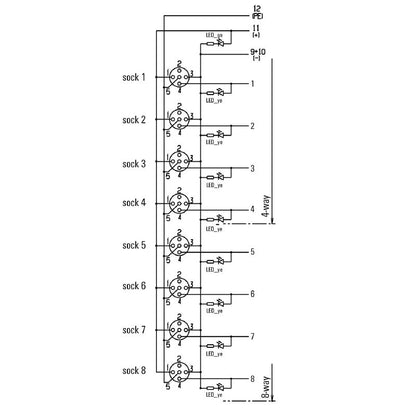

Introducing the SAI-8-S 4P FC connector, engineered to meet rigorous standards with both RoHS compliance and UL certification This robust connector features a 12-pole M23 outlet, rated for voltages between 10V and 30V, with PNP wiring for optimal functionality Measuring 343 mm in height and 54 mm in width, it has a lightweight design at just 271 g The operating temperature ranges from -25°C to 80°C, ensuring reliable performance in various environments.

Additionally, the sheathing stripping length is set at 100 mm Electrical specifications indicate a maximum current capacity of 9A, with each slot supporting up to 4A, while it is completely free of any hazardous substances beyond the legal limits specified by REACH.

Features and Benefits:

•RoHS compliant without exemption.

•LED functionality for operation and I/O indication.

•Protection rating of IP67.

•Housing made from PA 6 GF.

•Nickel-plated CuZn screw socket.

•Gold-plated contact surface.

Specifications:
