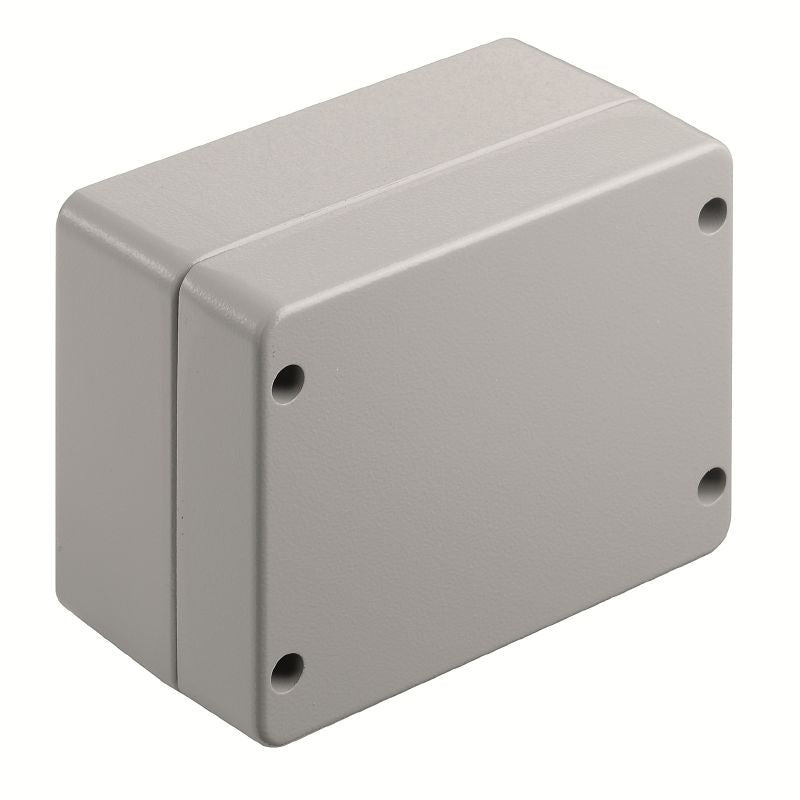

1329720000 - Aluminium Klippon K5 EX Enclosure, 130mm x 170mm x 90mm

1329720000 - Aluminium Klippon K5 EX Enclosure, 130mm x 170mm x 90mm

SKU: 1329720000   Download PDF

Select a Variant:
  • 1329720000 - Aluminium Klippon K5 EX Enclosure, 130mm x 170mm x 90mm
Qty:
Now $190.00   Web pricing policy
BEFORE   $0.00 Now $190.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Klippon K5 EX RAL7001, an empty enclosure crafted from durable aluminium With dimensions of 130 mm in height, 170 mm in width, and 90 mm in depth, it provides ample space for your needs Made from Aluminium AlSi12, this enclosure features a silver grey powder-coated and textured surface, ensuring both resilience and a modern look This versatile product is perfect for various applications, combining functionality with a stylish design.

Features and Benefits:

    •RoHS compliant without exemption.

    •Designed for explosive risk zones.

    •Suitable for use in the process industry, transportation, packaging industry, marine engineering, machine construction, and harbour facilities.

    •Impact resistance rating of 7 J for the ATEX version.

    •Includes a lid attached with M5 torx stainless steel screws.

    •Explosive risk zone.

    •Process industry.

    •Transportation.

    •Packaging industry.

    •Marine engineering.

    •Machine construction.

    •Harbour facilities.

Specifications:

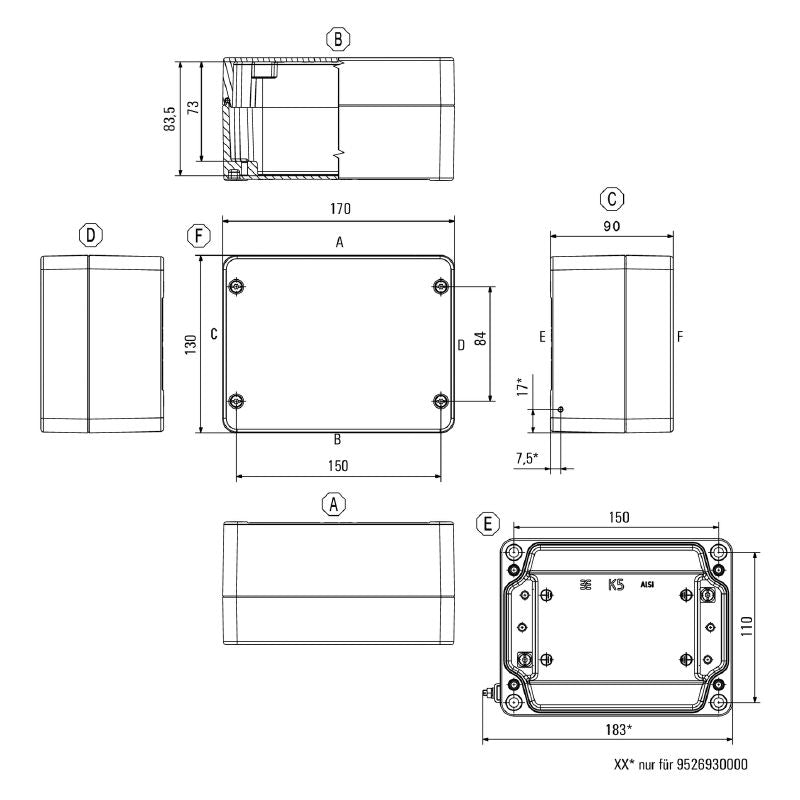

 Dimensions {'Depth': '90 mm', 'Height': '130 mm', 'Width': '170 mm'}
 Operating Temperature {'Min': '-60 °C', 'Max': '135 °C'}
 Protection Degree IP66, IP67
 Seal Material Silicone
 Material Thickness {'Cover': '3 mm', 'Enclosure': '4.6 mm'}
 Approval Certificates ['DNV', 'GL', 'RMRS', 'ATEX', 'IECEX', 'UL AEx Class Div.', 'CCC', 'INMETRO']
 Number of Lid Screws 4
 Cable Glands {'Left': {'M12': 4, 'M16': 2, 'M20': 1, 'M25': 1, 'M32': 1}, 'Right': {'M12': 4, 'M16': 2, 'M20': 1, 'M25': 1, 'M32': 1}, 'Top/Bottom': {'M12': 11, 'M16': 8, 'M20': 4, 'M25': 3, 'M32': 2}}
 Torque for Lid Screws 2.5 Nm
 Access Opening {'Height': '120.8 mm', 'Width': '160.8 mm'}
 Basic Material Aluminium AlSi12
 Integral Fixing Threaded holes M5
