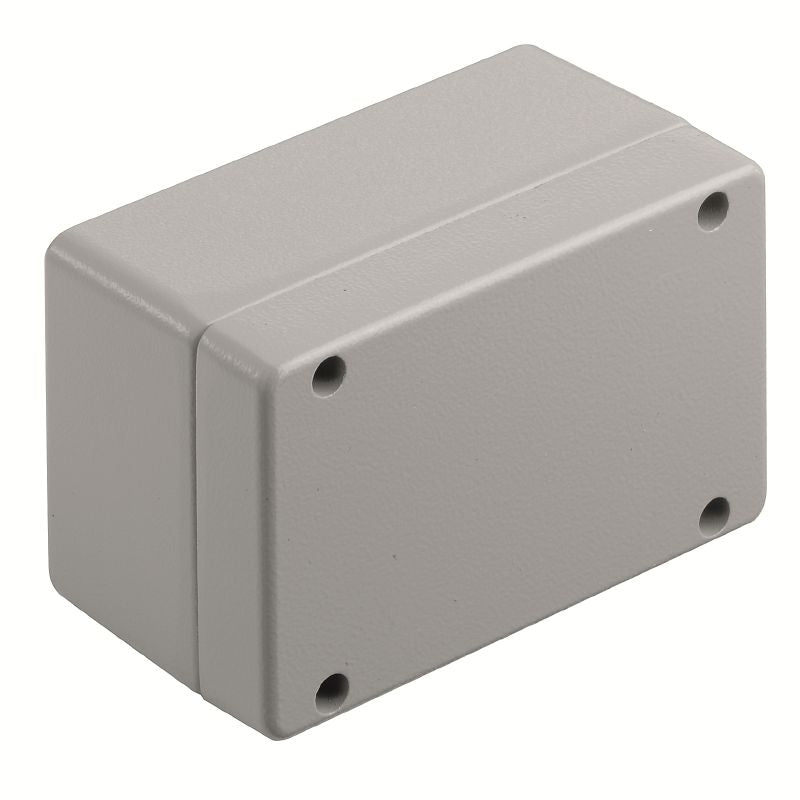

1329700000 - 82mm Aluminum Enclosure for Hazardous Areas, RAL7001 Finish

1329700000 - 82mm Aluminum Enclosure for Hazardous Areas, RAL7001 Finish

SKU: 1329700000   Download PDF

Select a Variant:
  • 1329700000 - 82mm Aluminum Enclosure for Hazardous Areas, RAL7001 Finish
Qty:
Now $116.01   Web pricing policy
BEFORE   $0.00 Now $116.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the KLIPPON K4 EX, a premium aluminum enclosure designed for use in hazardous environments This robust case measures 82 mm in height, 130 mm in width, and 72 mm in depth, featuring a textured silver-grey powder-coated exterior Constructed from aluminum AlSi12, it fully complies with ROHS standards and meets all environmental regulations without exemptions, ensuring both safety and reliability in your applications.

Features and Benefits:

    •Meets environmental compliance with RoHS.

    •Impact resistance rated at 7 J in the ATEX version.

    •Suitable for explosive risk zones and various industries like transportation, packaging, marine engineering, and machine construction.

    •Explosive risk zone.

    •Process industry.

    •Transportation.

    •Packaging industry.

    •Marine engineering.

    •Machine construction.

    •Harbour facilities.

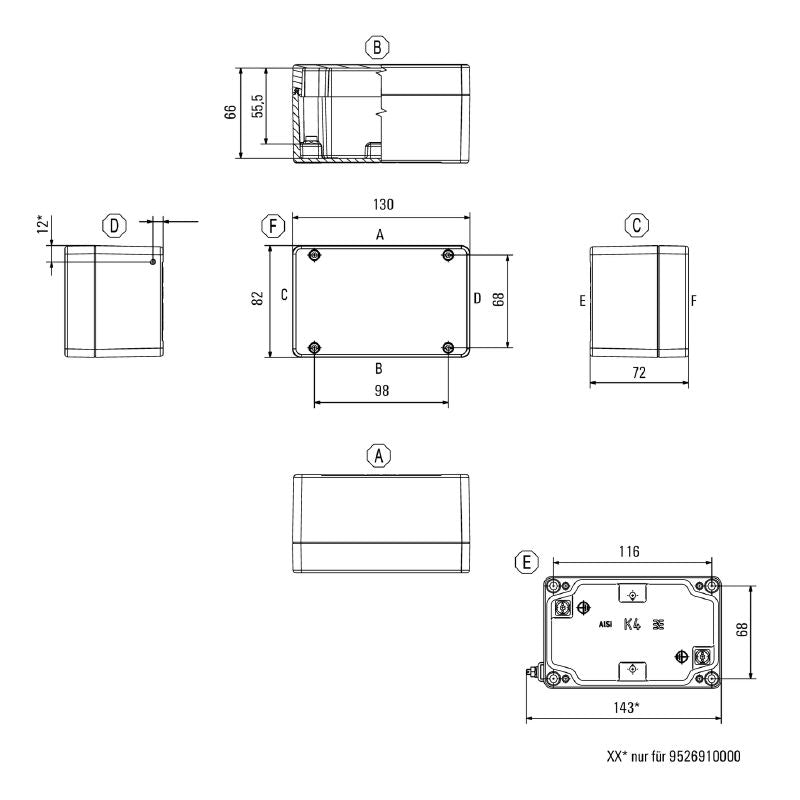

Specifications:

 Height 82 mm
 Width 130 mm
 Depth 72 mm
 Operating temperature (max) 135 °C
 Operating temperature (min) -60 °C
 Protection degree IP66, IP67
 Seal material Silicone
 Material thickness of cover 2.5 mm
 Material thickness of enclosure 4 mm
 Net weight 698 g
 Access opening height 74 mm
 Access opening width 122 mm
 Cable glands (left) M12: 2, M16: 2, M20: 1, M25: 1, M32: 1
 Cable glands (right) M12: 2, M16: 2, M20: 1, M25: 1, M32: 1
 Cable glands (top/bottom) M12: 5, M16: 3, M20: 2, M25: 2
 Number of lid screws 4
 Torque for lid screws 2.5 Nm
 Approval conditions DNV, GL, RMRS, ATEX, IECEX, UL AEx Class Div., CCC, INMETRO
