1200740000 - Stainless Steel Terminal Box 620mm x 450mm, IP66 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

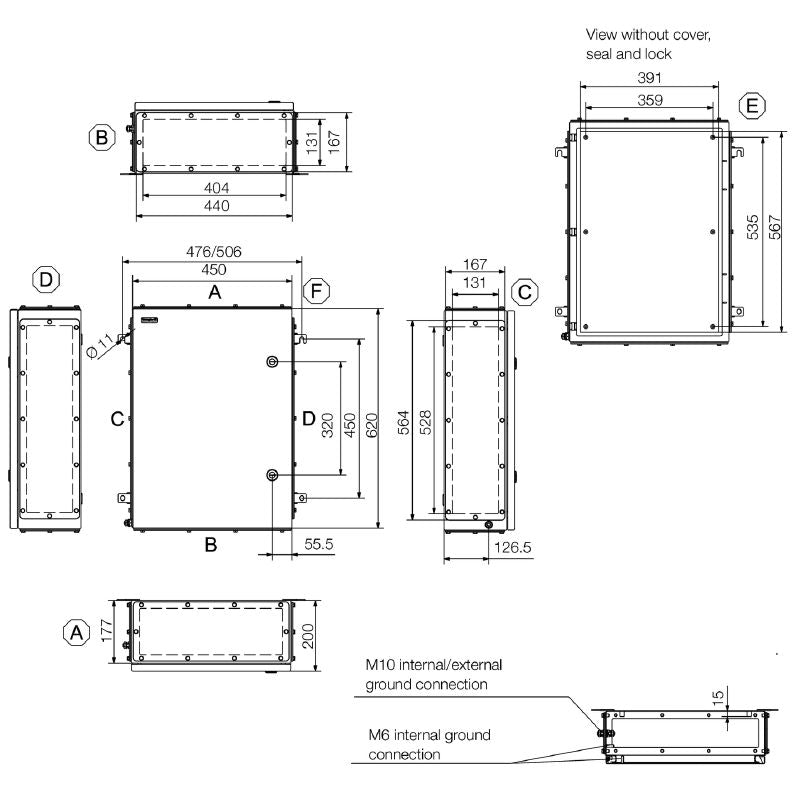

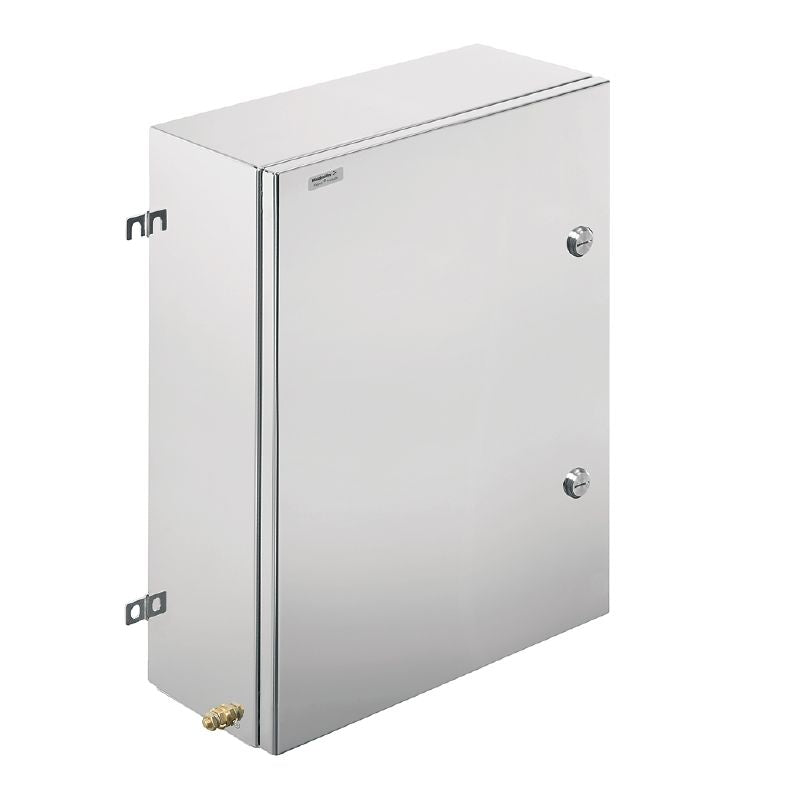

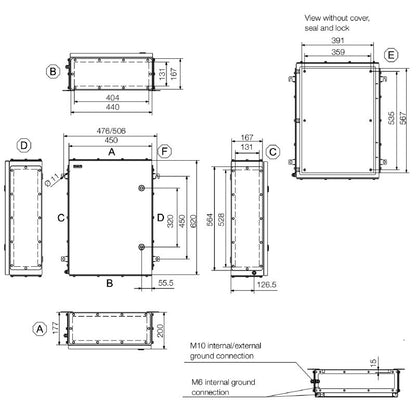

Introducing the Klippon TB QL, a robust terminal box made from high-grade stainless steel Measuring 620 mm in height, 450 mm in width, and 200 mm in depth, this enclosure is engineered for demanding environments It is equipped with gland plates on both the top and bottom for versatility in installation The stainless steel 14404 (316L) material is electropolished to provide a striking silver finish, ensuring both durability and aesthetic appeal.

With a wide temperature operating range of -60 °C to 135 °C, it offers significant reliability, though the IP66 protection is rated for use at temperatures up to 105 °C This terminal box adheres to important industry standards, including RoHS and ATEX, making it a dependable choice for various applications.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Electropolished finish for enhanced durability.

•Designed with gland plates on top and bottom.

•IP66 protection rating.

•Suitable for explosive risk zones.

•Compatible with various mounting dimensions and configurations.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore applications.

Specifications:
