1200490000 - Stainless Steel 480x480x200mm Terminal Box for Industrial Use

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

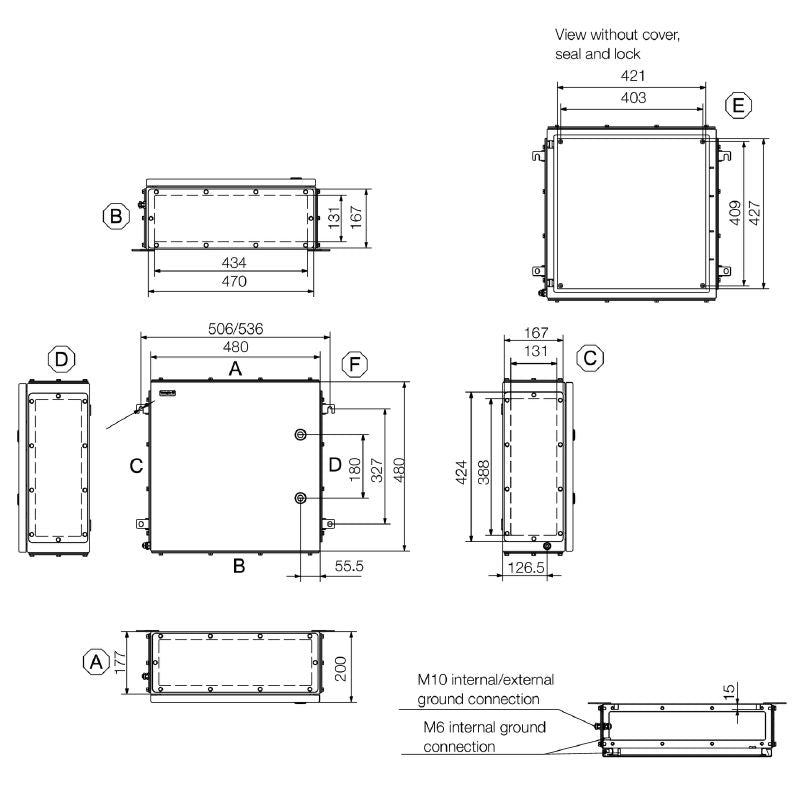

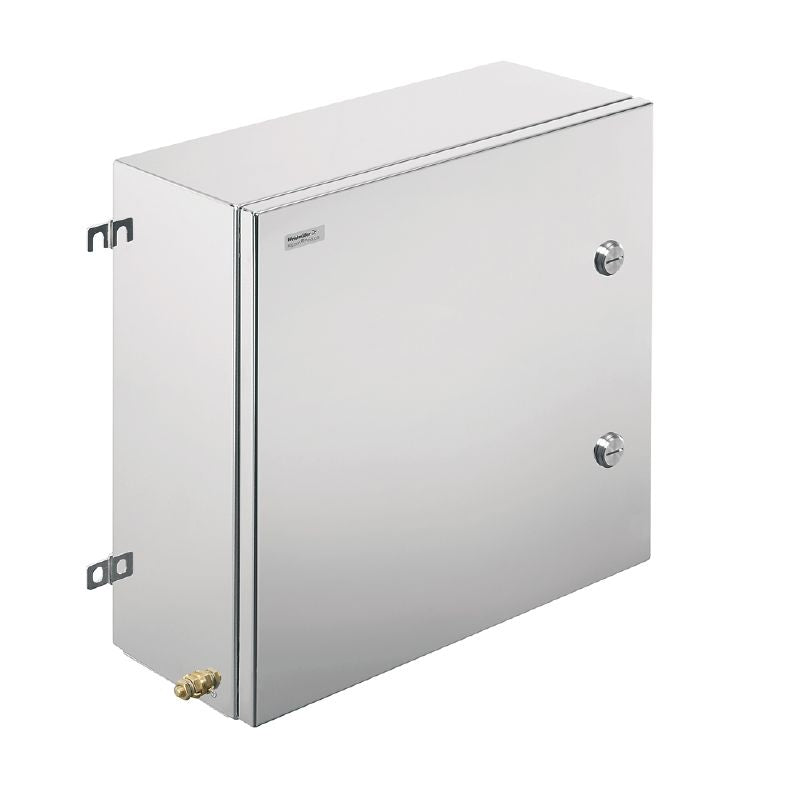

Introducing the Klippon TB QL (Quarter Lock Terminal Box), a robust stainless steel enclosure perfect for a variety of industrial settings Measuring 480 mm in height, 480 mm in width, and 200 mm in depth, this enclosure is constructed from high-quality stainless steel 14404 (316L) with a refined electropolished silver finish It is engineered to meet strict standards, including RoHS compliance, and operates effectively within a temperature range of -60°C to 135°C, making it suitable for challenging environments.

Specifically designed for explosive risk areas, this enclosure is an excellent choice for the process, oil and gas, and chemical industries, applicable for both onshore and offshore operations.

Features and Benefits:

•Crafted from stainless steel 1.4404 (316L).

•Electropolished surface finish.

•Designed to use in explosive risk zones.

•Accommodates various cable glands including M12 to M75.

•Supports a maximum payload of 92 kg.

•Includes a quarter-turn fastener for easy lid attachment.

•Contains welded-on mounting feet for sturdy installation.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Onshore applications.

•Offshore applications.

Specifications:
