1200390000 - 458mm Stainless Steel Terminal Box for Harsh Environments

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

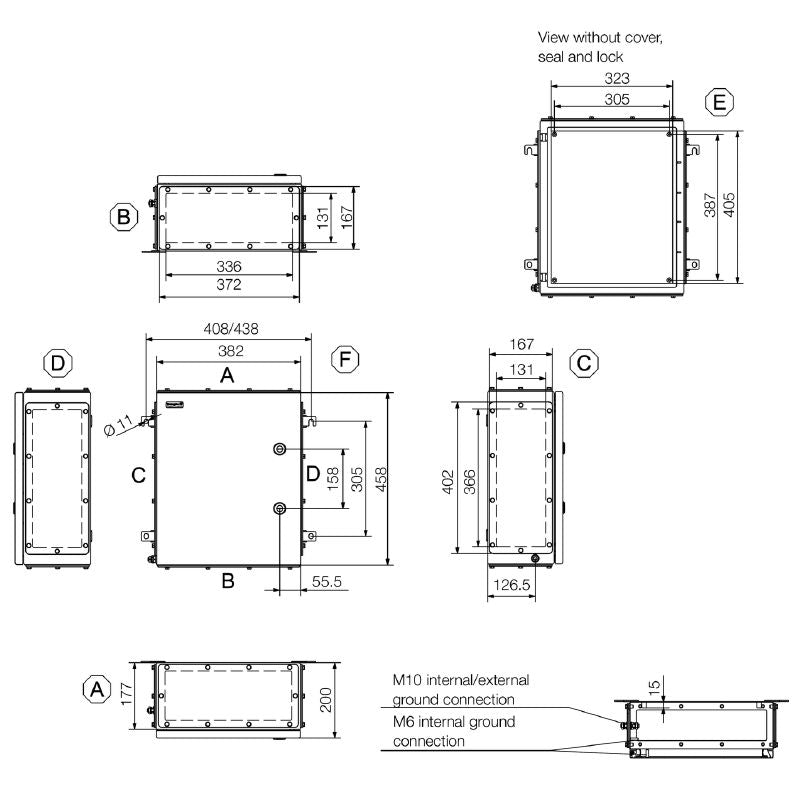

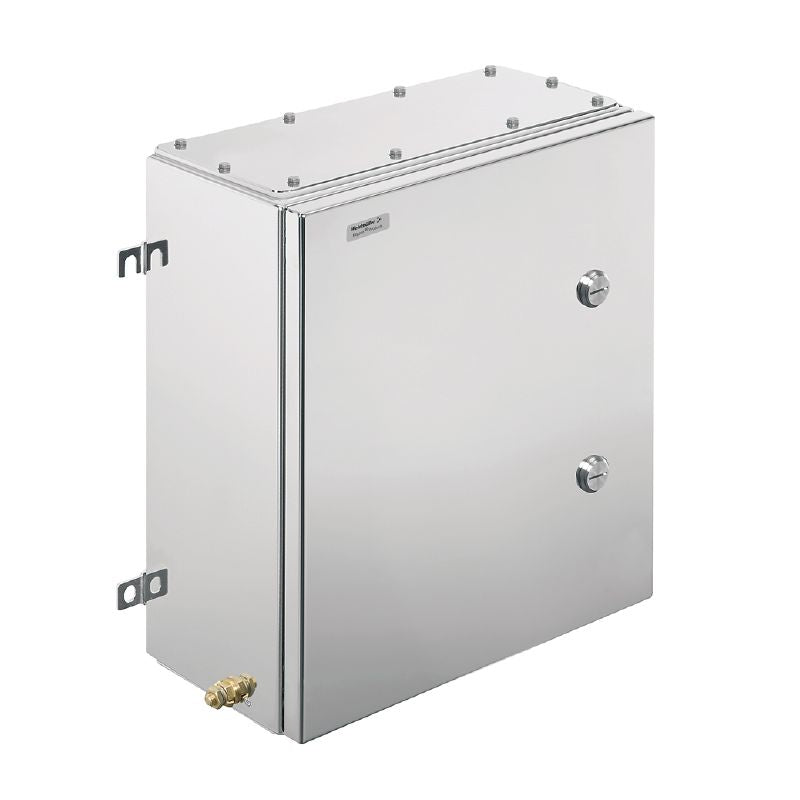

Introducing the KTB QL 453820 S4E1 stainless steel terminal box, expertly engineered for a range of applications Constructed from electropolished stainless steel grade 14404 (316L), this robust enclosure measures 458 mm in height, 382 mm in width, and 200 mm in depth It is equipped with gland plates at the bottom, providing enhanced durability for challenging environments This terminal box meets several essential certifications, including cULus and ATEX, making it an ideal choice for industries such as oil and gas, especially in hazardous locations.

With an operating temperature range from -60 °C to 135 °C and a maximum payload capacity of 70 kg, this product is built to perform reliably under demanding conditions.

Features and Benefits:

•Constructed from electropolished stainless steel 1.4404 (316L).

•Provides IP66 protection when used within specific temperature limits.

•Designed with an access opening that facilitates easy installation and maintenance.

•Capable of withstanding harsh environmental conditions.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore installations.

Specifications:
