1200360000 - 458mm Stainless Steel Terminal Box Enclosure with Gland Plates

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

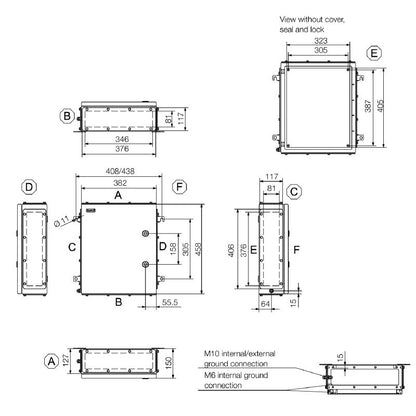

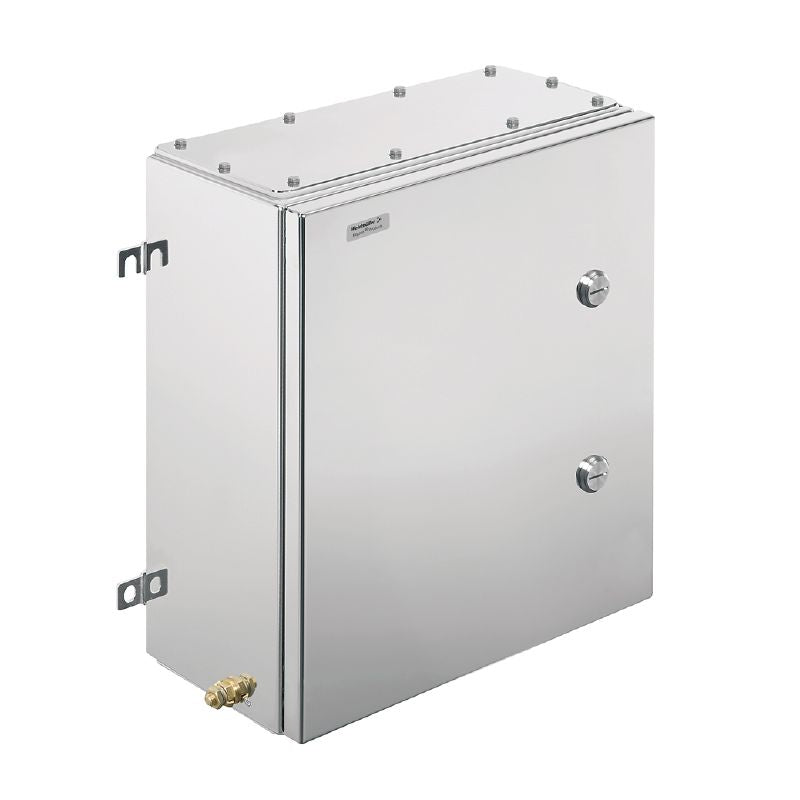

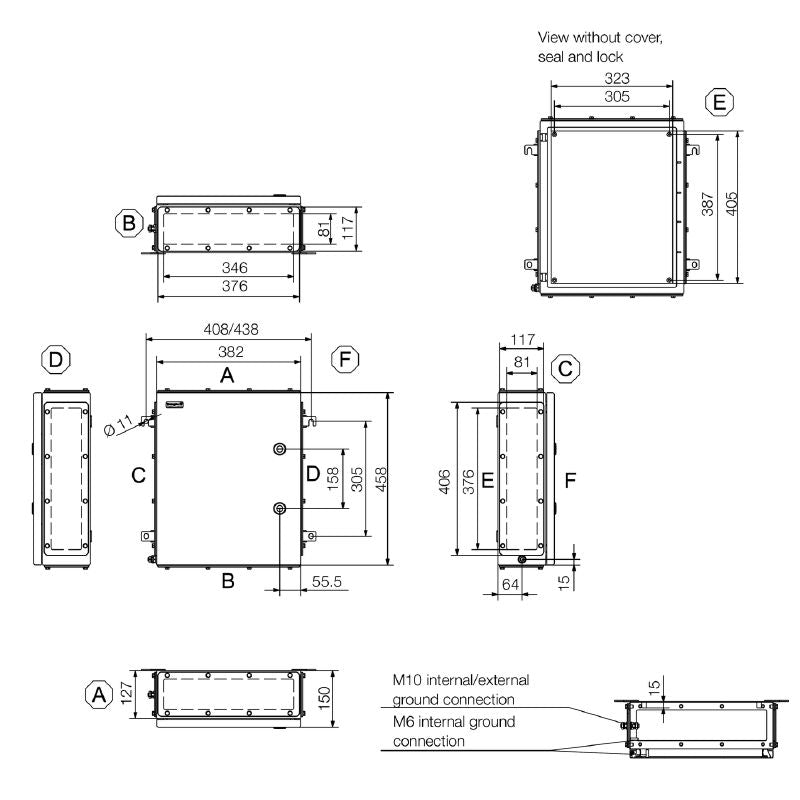

Introducing the Klippon TB QL, a robust empty terminal box constructed from high-grade stainless steel With dimensions measuring 458 mm in height, 382 mm in width, and 150 mm in depth, this enclosure is perfect for a variety of installation needs It features gland plates positioned on the bottom as well as on the left and right sides for versatile connectivity The box is made from stainless steel grade 1.

4404 (316L) and sports a polished silver finish, ensuring both elegance and durability in any environment.

Features and Benefits:

•Compliant with RoHS exemption.

•Impact resistance of 7 J for ATEX version and 10 J for standard version.

•Max payload capacity of 70 kg.

•Includes a flange plate and mounting screws.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
