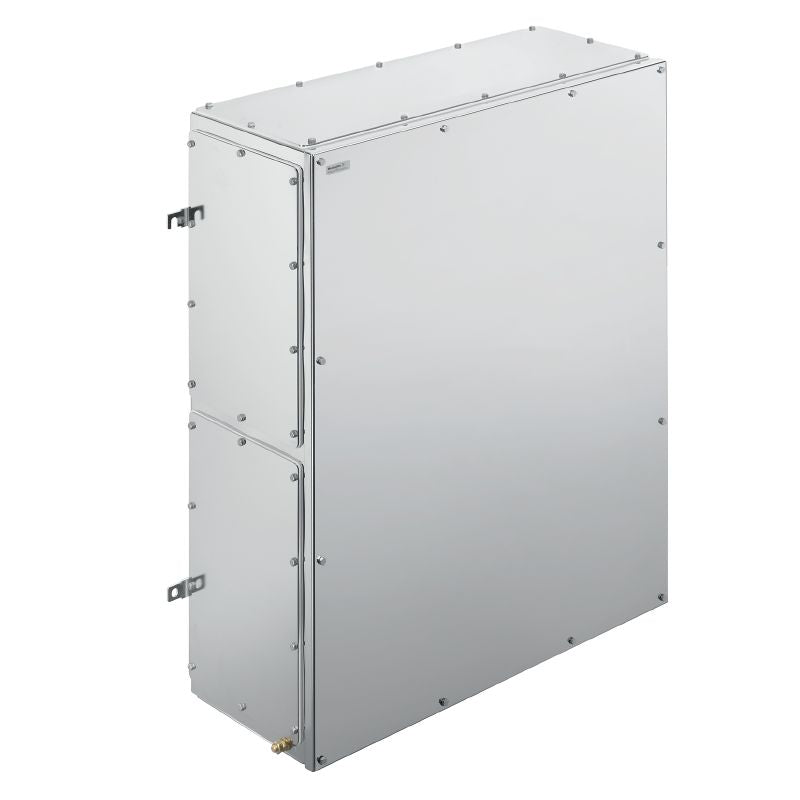

1196740000 - Stainless Steel Terminal Box 980mm x 740mm, Electropolished Finish

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

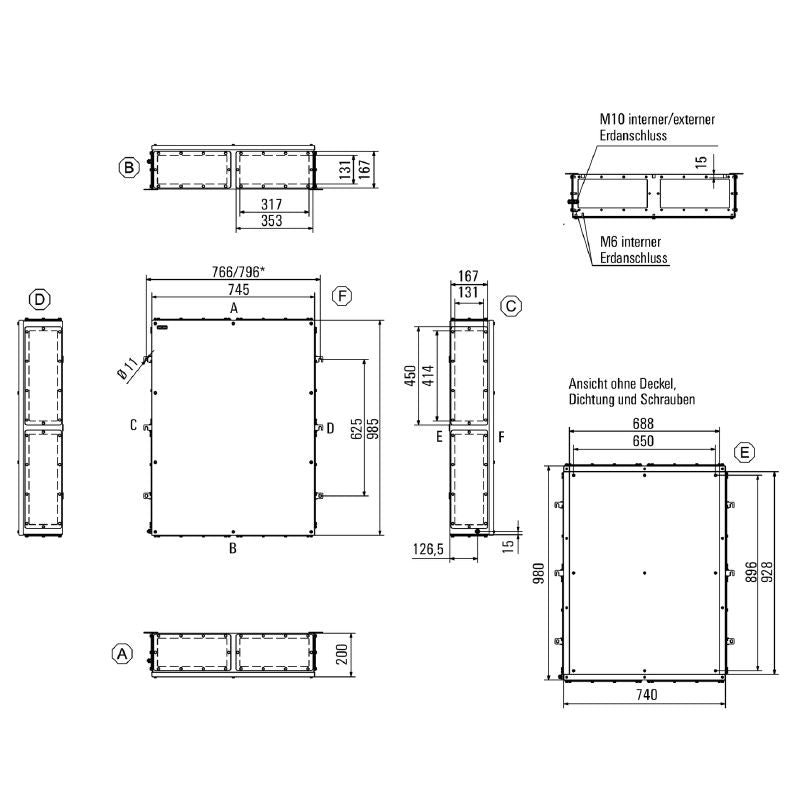

Discover the Klippon TB FS (Terminal Box - Fixing Screw), an empty enclosure crafted from high-quality stainless steel With dimensions of 980 mm in height, 740 mm in width, and 200 mm in depth, this versatile box is ideal for a range of applications It is equipped with gland plates positioned on the bottom, top, left, and right sides, all constructed from stainless steel 14404 (316L) and finished with a polished silver surface.

This enclosure meets several certifications, including RoHS and various safety standards, promising dependable performance in diverse conditions.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Electropolished surface finish.

•Maximum payload capacity of 290 kg.

•IP66 and IP67 protection degrees.

•Robust impact resistance of 7 J for ATEX version and 10 J for the standard version.

•Sealed with silicone material.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore use.
