1196530000 - 762mm Stainless Steel Terminal Box for Industrial Use

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

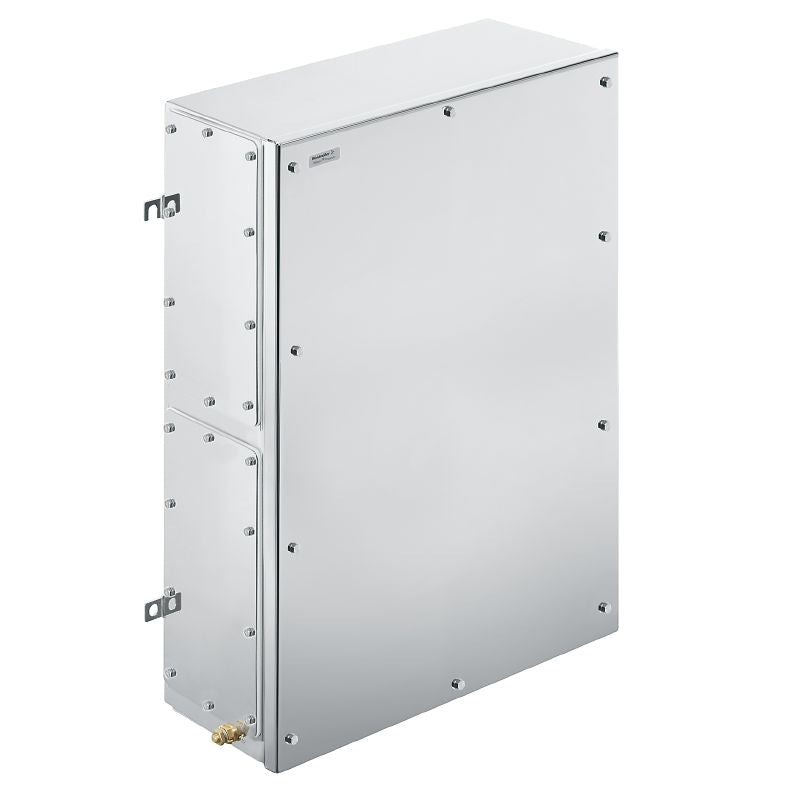

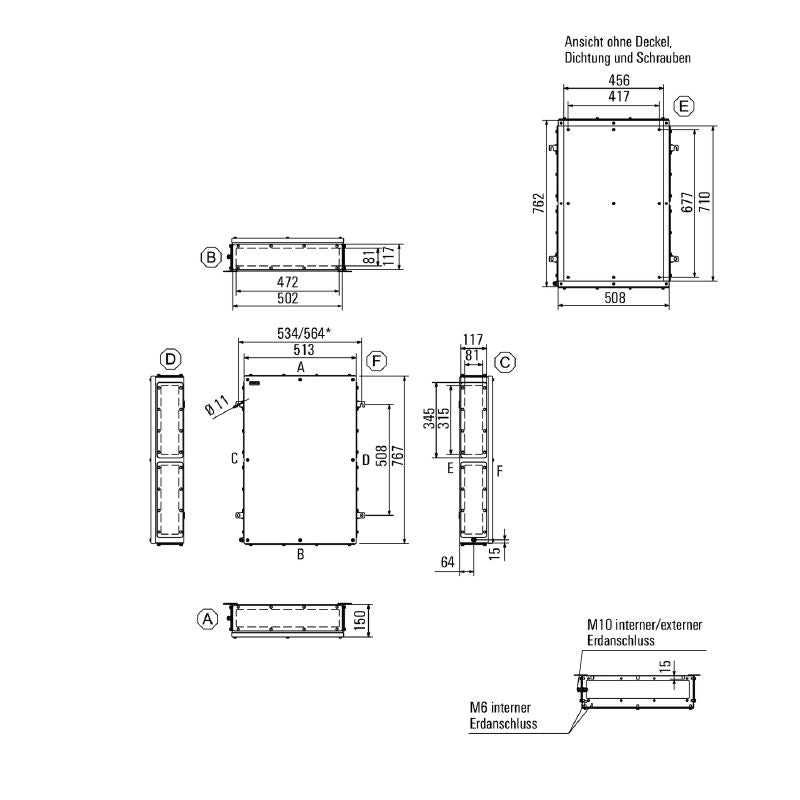

Introducing the Klippon TB FS (Terminal Box - Fixing Screw), an empty enclosure crafted from high-grade electropolished stainless steel, specifically 14404 (316L) This robust box measures 762 mm in height, 508 mm in width, and 150 mm in depth, making it ideal for various applications It features gland plates strategically placed at the bottom, left, and right sides Weighing 20,500 g, it offers durability and reliability.

Engineered to withstand extreme temperatures ranging from -60 °C to 135 °C, this enclosure meets RoHS compliance and adheres to multiple international standards, including ATEX and cULus, ensuring safety and performance in diverse environments.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L), ensuring durability.

•Electropolished surface finish for enhanced corrosion resistance.

•Designed for various mounting configurations.

•Impact resistance rated at 10 J for standard version.

•Protection degree of IP66 and IP67 for superior ingress protection.

•Max payload capacity of 155 kg.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:
