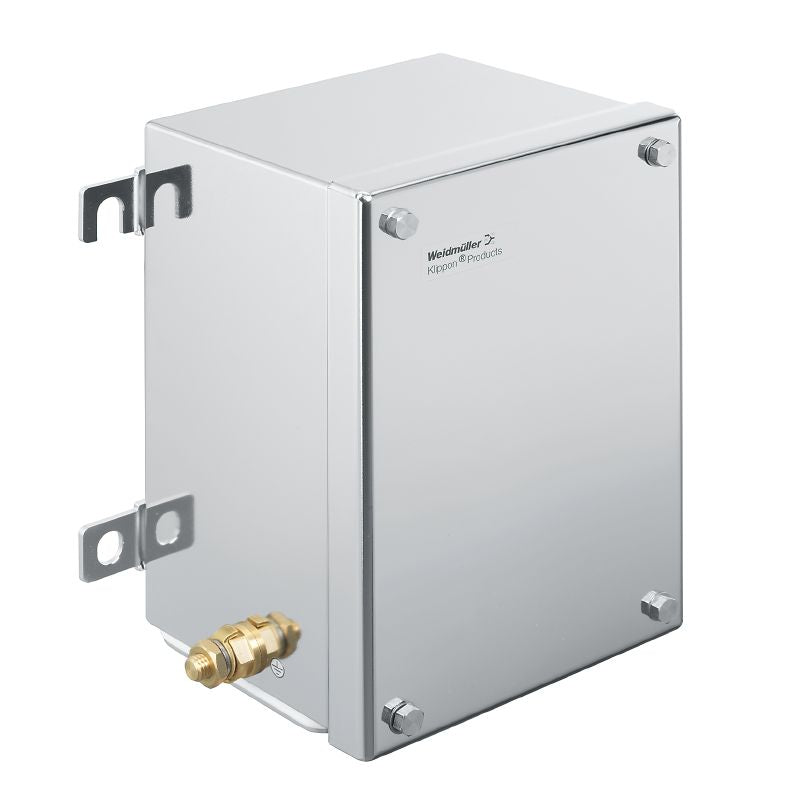

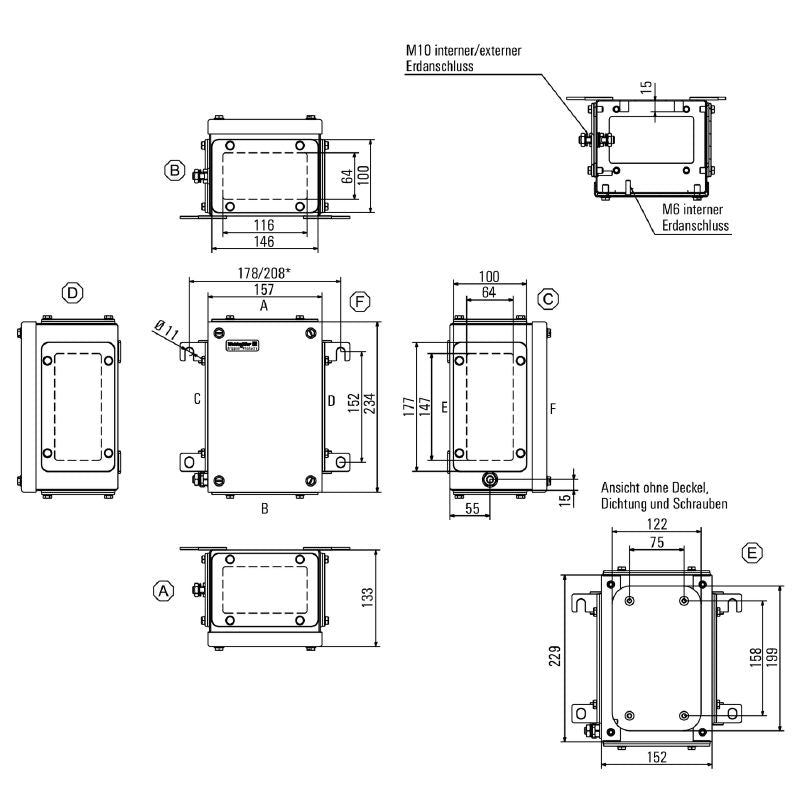

1195650000 - Klippon TB FS Stainless Steel Terminal Box 229mm x 152mm x 133mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB FS: a versatile empty terminal box crafted from high-quality electropolished stainless steel 14404 (316L) With a compact design measuring 229 mm in height, 152 mm in width, and 133 mm in depth, this enclosure is not only compliant with RoHS standards but also equipped to handle a variety of cable gland sizes including M12, M16, M20, M25, M32, and M40 This terminal box is certified with multiple approvals, including ATEX, cULus, DNV, and IECEX, ensuring its suitability for use in hazardous environments such as the oil and gas, chemical, offshore, and onshore sectors.

Weighing in at 3,562 g and capable of operating within a temperature range of -60 °C to 135 °C, it provides robust protection with IP66 and IP67 ratings against dust and water ingress, making it a reliable choice for demanding applications.

Features and Benefits:

•Consists of stainless steel 1.4404 (316L), which enhances durability.

•Designed for explosive risk zones including the process and oil and gas industries.

•Holds multiple certifications for safety and compliance.

•Provides ample space for cable gland installation.

•Applications in explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore use.

Specifications:
