1195570002 - Stainless Steel Klippon TB MH Enclosure, 914x610x200mm

1195570002 - Stainless Steel Klippon TB MH Enclosure, 914x610x200mm

SKU: SKU: 1195570002 Download PDF

Variant:
  • 1195570002 - Stainless Steel Klippon TB MH Enclosure, 914x610x200mm
Regular price Now $5,153.90
Regular price BEFORE   $0.00 Sale price Now $5,153.90
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

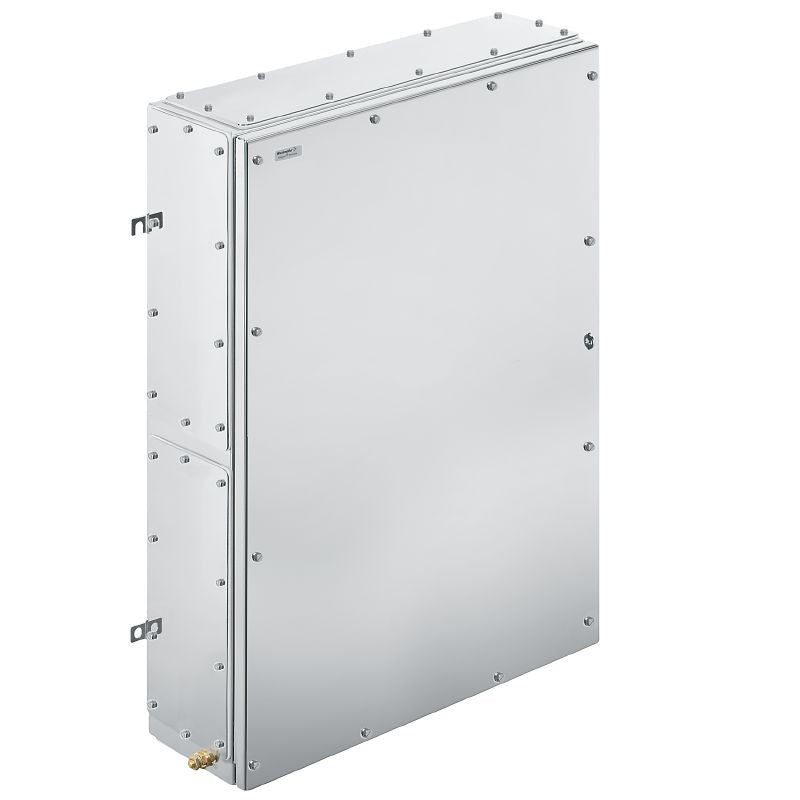

Discover the Klippon TB MH empty enclosure, expertly constructed from stainless steel 14404 (316L) for unmatched durability Measuring 914 mm in height, 610 mm in width, and 200 mm in depth, this enclosure is uncoated and comes equipped with gland plates at both the bottom and the top, ensuring versatility with various cable glands Designed to meet the demands of explosive environments, it’s especially suitable for industries including oil and gas, chemicals, and both offshore and onshore applications.

Enhance your operational safety and reliability with this robust enclosure.

Features and Benefits:

    •Designed for environments with explosive risks.

    •Made from durable stainless steel 1.4404 (316L).

    •Includes gland plates for easy installation.

    •Integral fixing options enhance stability.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore applications.

    •Onshore applications.

Specifications:

 Dimensions 914 mm height, 610 mm width, 200 mm depth
 Material Stainless steel 1.4404 (316L)
 Operating Temperature Range -60 °C to 135 °C
 Protection Class IP66, IP67
 Net Weight 32,928 g
 Access Opening Dimensions 861 mm height, 551 mm width
 Max Payload 223 kg
 Mounting Dimensions 559 mm height, 636 mm width
 Material Thickness of Cover 1.5 mm
 Impact Resistance 7 J ATEX version, 10 J standard version
 Flange Plate Yes
