1195530000 - Stainless Steel 914mm Terminal Box with Multiple Approvals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

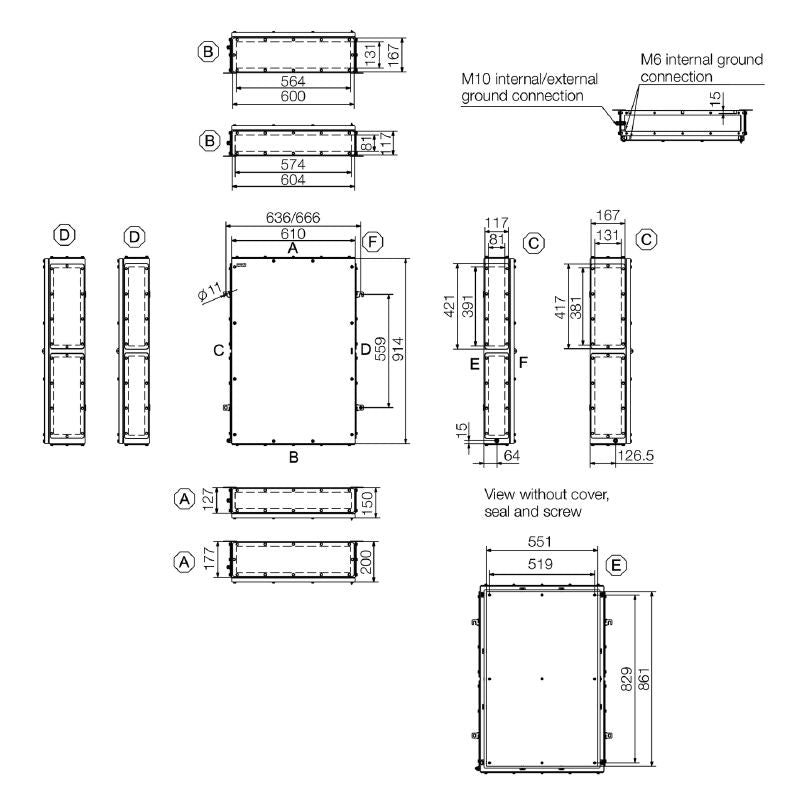

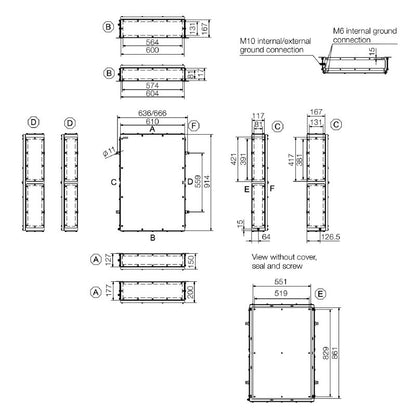

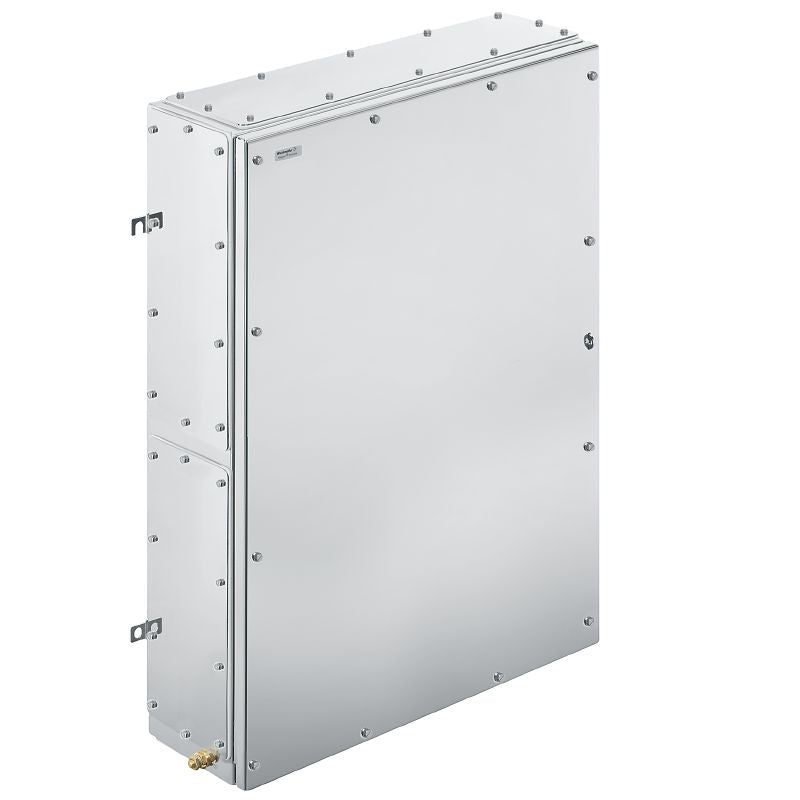

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), an expertly crafted stainless steel enclosure designed to protect your electrical components With dimensions of 914 mm in height, 610 mm in width, and 150 mm in depth, this spacious box provides ample room for installation Constructed from high-grade stainless steel 14404 (316L) with an electropolished silver finish, it combines durability with an appealing look.

This enclosure is equipped with gland plates located at the bottom, left, and right for versatile connectivity Additionally, it meets X-ray compliance standards and comes with several certification approvals, including UL and ATEX, ensuring it meets high safety standards Perfect for any electrical housing needs, the Klippon TB MH is a reliable choice for industrial applications.

Features and Benefits:

•Made from stainless steel 1.4404 (316L).

•Electropolished finish.

•Impact resistance is rated at 7 J for the ATEX version and 10 J for the standard version.

•Contains 4 welded-on mounting feet with holes for easy attachment.

•Designed for use in explosive risk zones, process industry, oil and gas, and chemical industries.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
