1195410000 - 762mm Stainless Steel Terminal Box for Hazardous Areas

1195410000 - 762mm Stainless Steel Terminal Box for Hazardous Areas

SKU: SKU: 1195410000 Download PDF

Variant:
  • 1195410000 - 762mm Stainless Steel Terminal Box for Hazardous Areas
Regular price Now $2,299.73
Regular price BEFORE   $0.00 Sale price Now $2,299.73
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

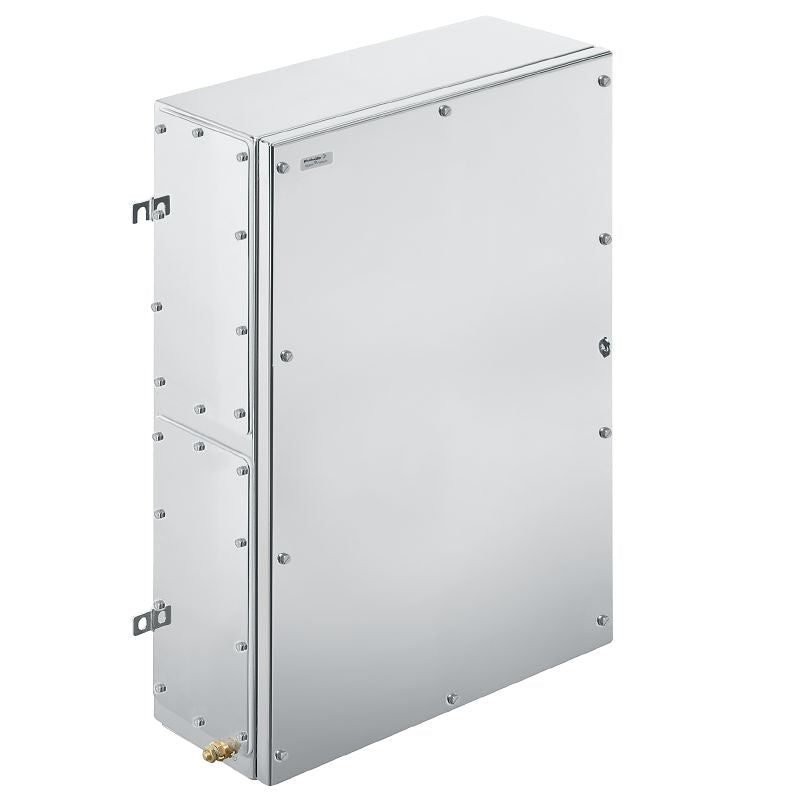

Discover the Klippon TB MH empty terminal box, expertly crafted from durable stainless steel With dimensions of 762 mm in height, 508 mm in width, and 150 mm in depth, this terminal box is built for use in hazardous environments It carries multiple certifications, including cULus, ATEX, and IECEx, providing you with confidence in its safety features Made from electropolished stainless steel 14404 (316L), this enclosure guarantees long-lasting performance and excellent resistance to varying environmental conditions.

Features and Benefits:

    •Constructed from stainless steel for durability.

    •Electropolished finish for enhanced resistance.

    •Suitable for explosive risk zones.

    •Designed for both offshore and onshore applications.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore applications.

    •Onshore applications.

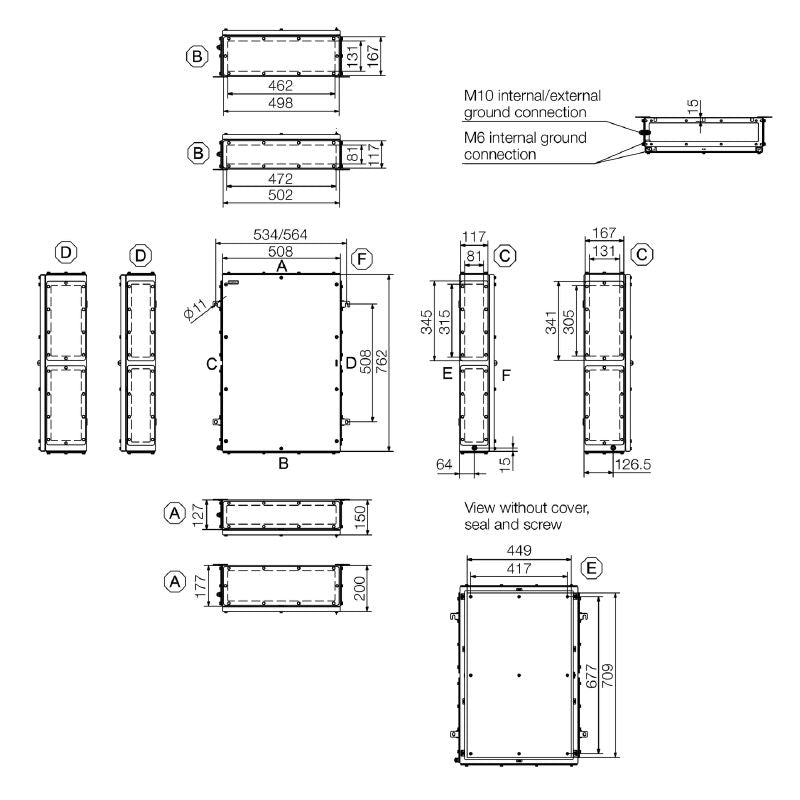

Specifications:

 Height 762 mm
 Width 508 mm
 Depth 150 mm
 Operating temperature, max 135 °C
 Operating temperature, min -60 °C
 Protection degree IP66, IP67
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Max. payload 155 kg
 Approval conditions ATEX, CCoE, cULus, DNV, IECEX, INMETRO, KC, NEPSI, CCC
 Seal material Silicone
 Dimensions of box 690x920x240
 Access opening: height 709 mm
 Access opening: width 449 mm
