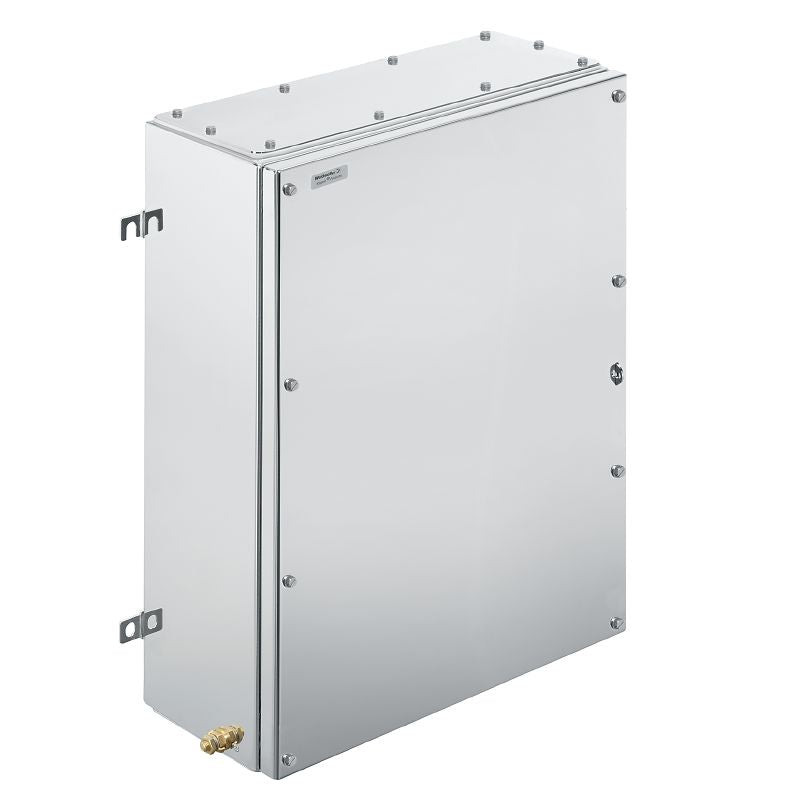

1195360003 - Stainless Steel Terminal Box 620x450x200mm, IP66 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH terminal box, crafted from durable stainless steel With dimensions of 620 mm in height, 450 mm in width, and 200 mm in depth, this empty enclosure features a convenient bottom gland plate Constructed from untreated stainless steel (14301), it supports a variety of cable glands to accommodate different sizes Engineered to perform within a temperature range of -60 °C to 135 °C, please note that the IP66 protection rating applies only to environments not exceeding 105 °C.

This terminal box is an excellent choice for robust and reliable electrical installations.

Features and Benefits:

•Crafted from durable stainless steel material 1.4301 (304).

•IP66 and IP67 protection classes.

•Impact resistance rated at 7 J for ATEX versions and 10 J for standard versions.

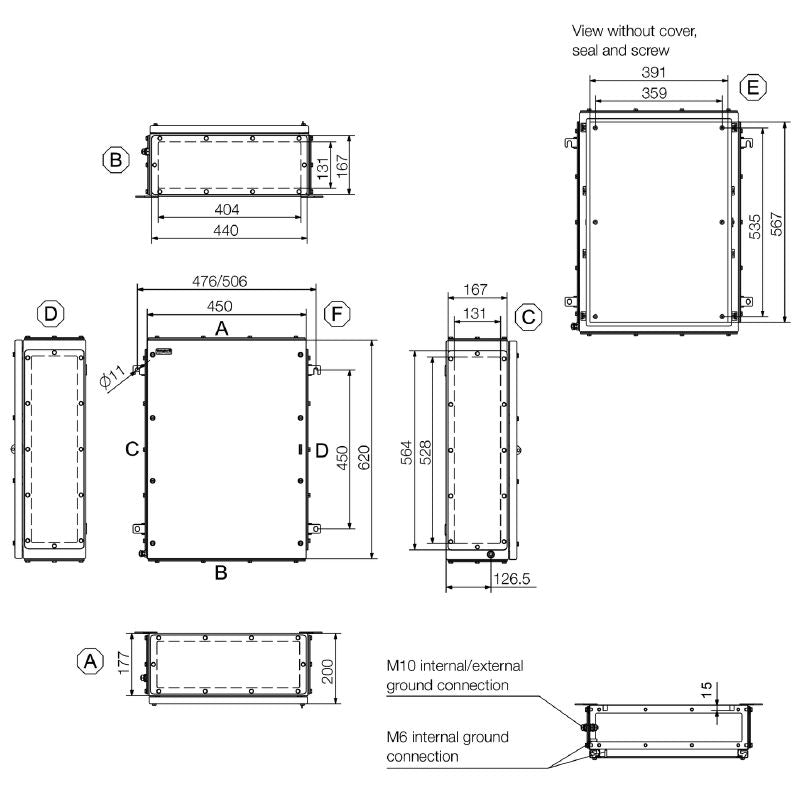

•Accessibility with dimensions of 567 mm in height and 391 mm in width for access openings.

•Integral fixing with multiple stud bolts.

•Lid is secured with hinges and slotted screws, allowing an opening angle of 130°.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore usage.

Specifications:
