1195280001 - ATEX Rated Stainless Steel Terminal Box, 550x350x200mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

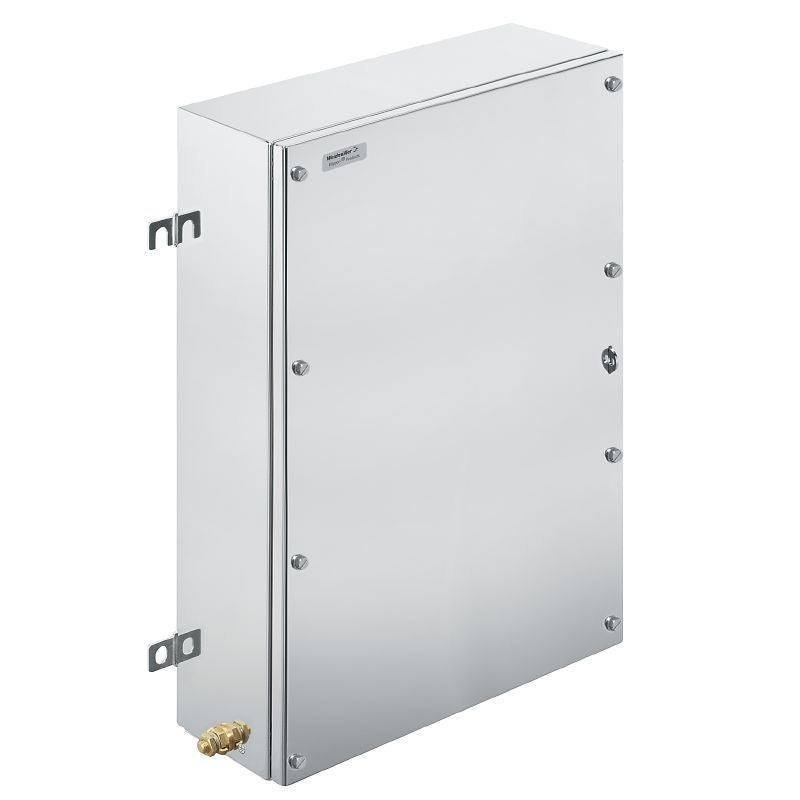

Introducing the Klippon TB MH 553520 S2E3 terminal box, expertly engineered for a wide array of applications in environments prone to explosive hazards, specifically within the oil, gas, and chemical sectors Crafted from high-grade electropolished stainless steel (14301), this robust enclosure measures 550 mm in height, 350 mm in width, and 200 mm in depth Designed for flexible installation, it includes multiple gland plates positioned at the bottom, left, and right sides, providing various connectivity options.

This terminal box operates effectively in extreme temperatures ranging from -60 °C to 135 °C, although please note the IP66 rating may be compromised above 105 °C The cover has a generous opening angle of 130 degrees and offers impressive impact resistance, rated at 7 J for ATEX versions and 10 J for standard configurations.

Features and Benefits:

•Constructed from stainless steel 1.4301 (304).

•Electropolished surface finish.

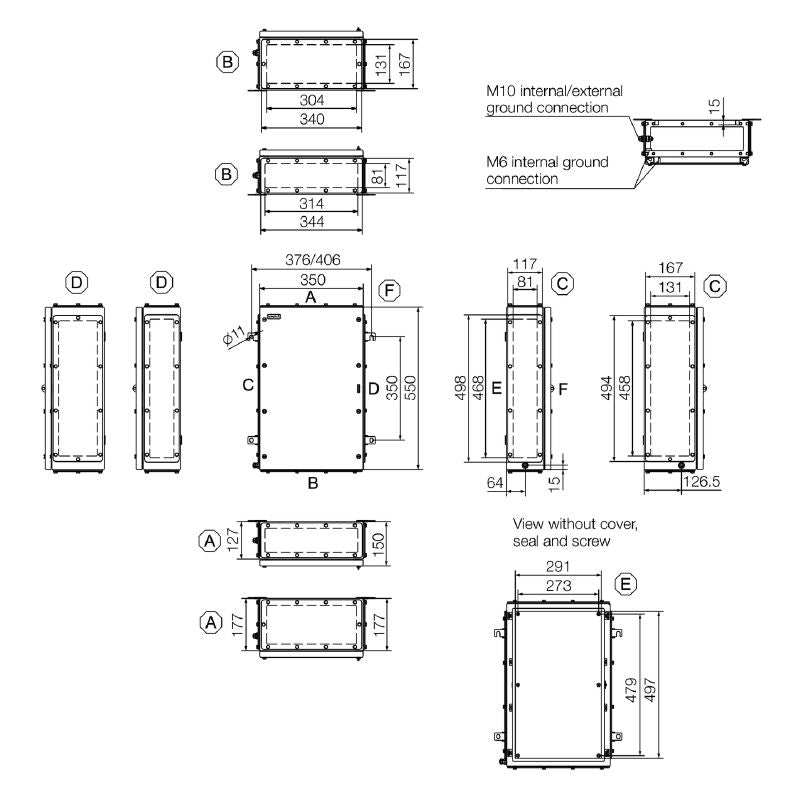

•Access opening dimensions: height 497 mm, width 291 mm.

•Lid is secured with 4 hinges and slotted screws for reliable closure.

•Designed for use in challenging environments: offshore and onshore.

•Compliant with several standards including DIN EN 62208.

•Meets ATEX, cULus, and IECEx certification conditions.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:
