1195190000 - 480mm Stainless Steel Terminal Box - ROHS Compliant and UL Certified

1195190000 - 480mm Stainless Steel Terminal Box - ROHS Compliant and UL Certified

SKU: SKU: 1195190000 Download PDF

Variant:
  • 1195190000 - 480mm Stainless Steel Terminal Box - ROHS Compliant and UL Certified
Regular price Now $2,869.05
Regular price BEFORE   $0.00 Sale price Now $2,869.05
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

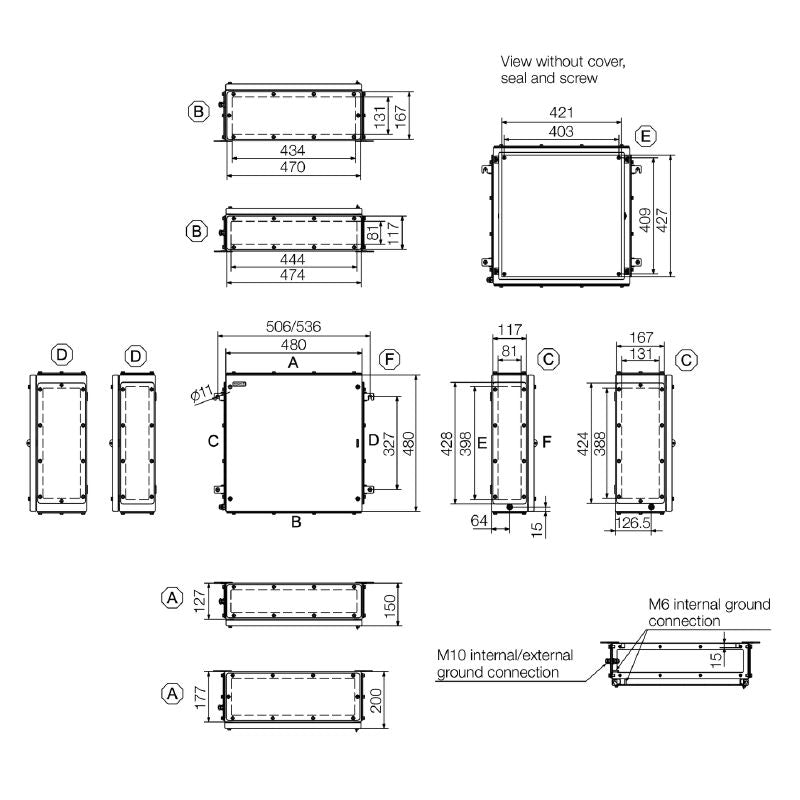

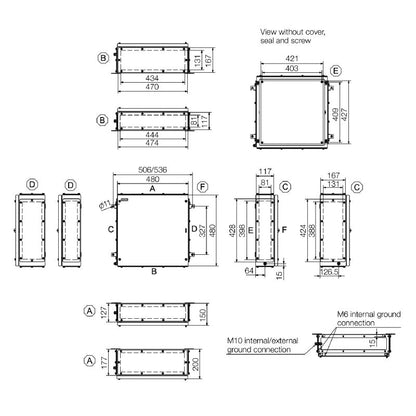

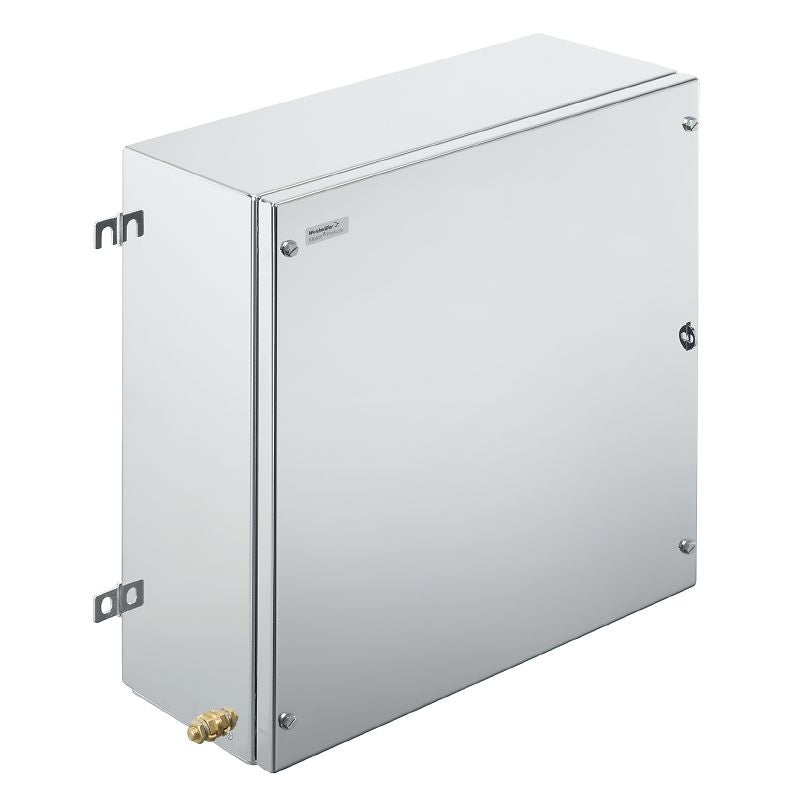

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a versatile enclosure made from high-grade stainless steel Measuring 480 mm in height, 480 mm in width, and 200 mm in depth, this empty terminal box offers sturdy protection for your equipment It meets ROHS compliance standards and holds the UL certification number E243298, guaranteeing quality and safety Crafted from stainless steel 14404 (316L) with an electropolished finish, this enclosure is designed for durability across various applications.

Features and Benefits:

    •Constructed from durable stainless steel for enhanced durability.

    •Electropolished surface finish.

    •Designed for explosive risk zones and various industrial applications.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

Specifications:

 Height 480 mm
 Width 480 mm
 Depth 200 mm
 Net weight 16,080 g
 Operating temperature -60 °C to 135 °C
 Protection class IP66/IP67
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Max. payload 92 kg
