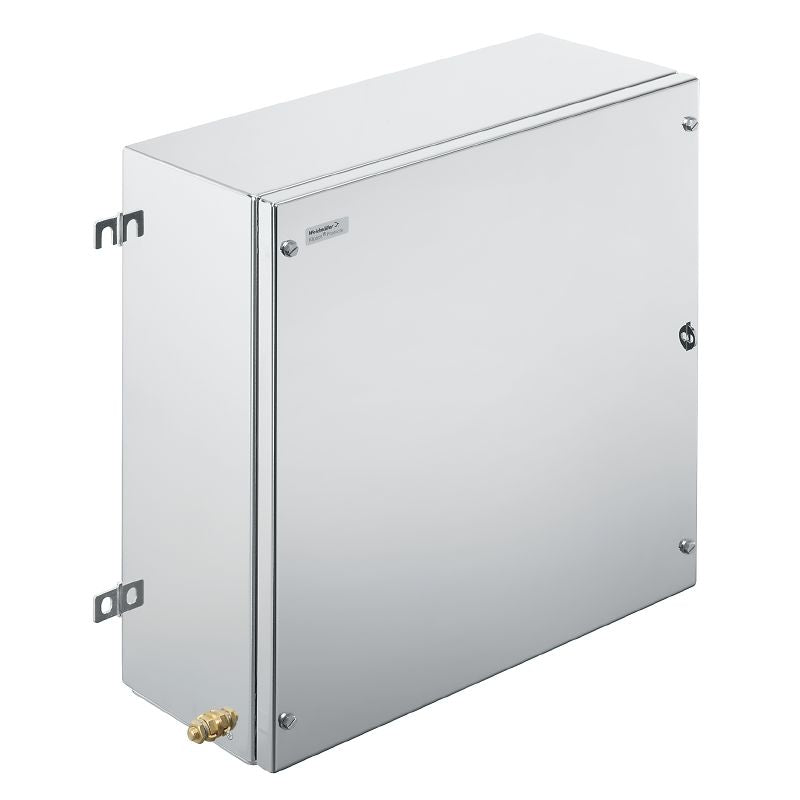

1195110000 - 480x480mm Stainless Steel Terminal Box with Gland Plates

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH Multi Hinge Terminal Box, an empty enclosure perfect for diverse applications Constructed from high-grade 14404 (316L) stainless steel with an electropolished finish, this box ensures both durability and a sleek appearance With dimensions of 480 mm in height, 480 mm in width, and 150 mm in depth, it comes equipped with gland plates on the bottom for easy installation This enclosure not only meets ROHS standards but also has certifications for cULus and ATEX, making it a reliable choice for various environments.

Features and Benefits:

•Stainless steel (1.4404, 316L) construction.

•Electropolished surface finish.

•IP66 and IP67 protection degrees.

•Impact resistance of 7 J for ATEX version and 10 J for standard version.

•Lid with 130° opening angle and attached with 4 hinges.

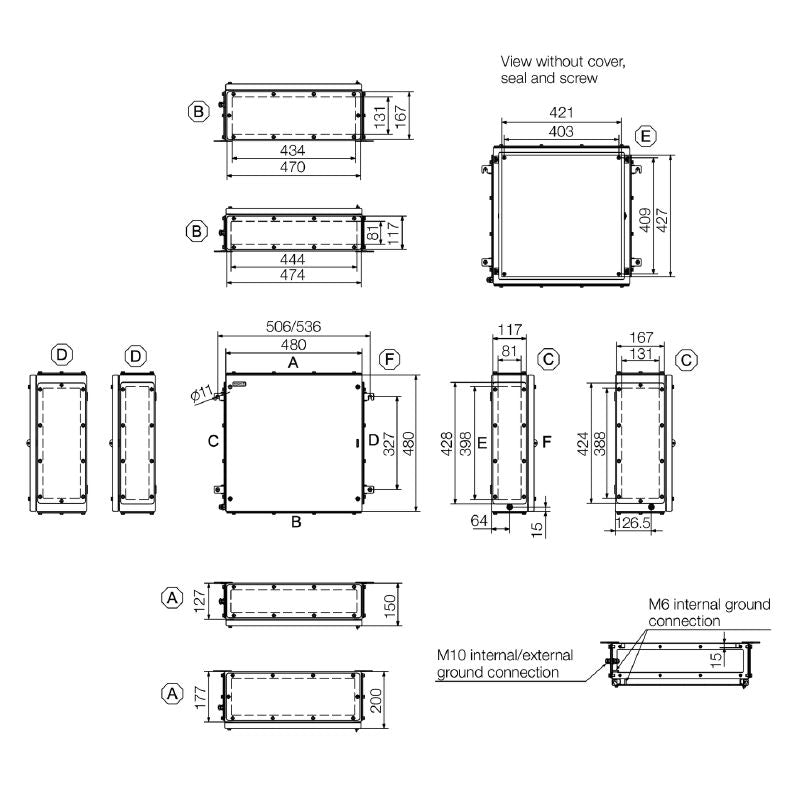

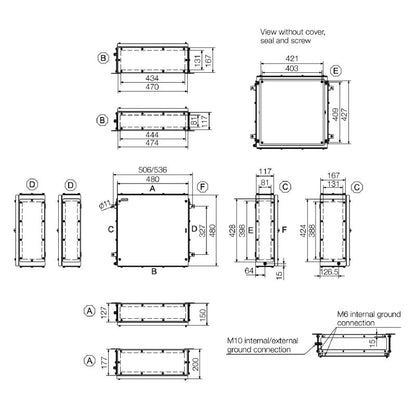

•Access opening dimensions: 427 mm height and 421 mm width.

•Designed for explosive risk zones and various industries such as oil and gas.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore applications.

Specifications:
